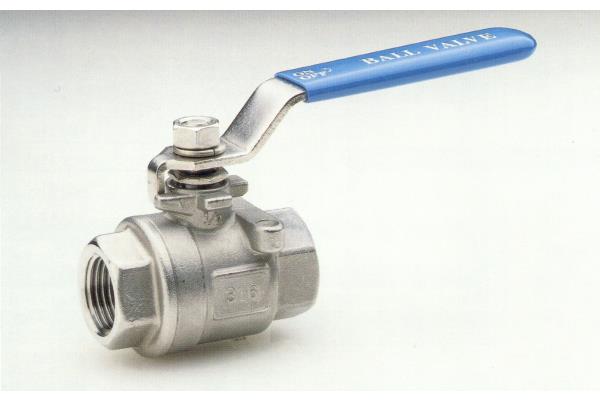

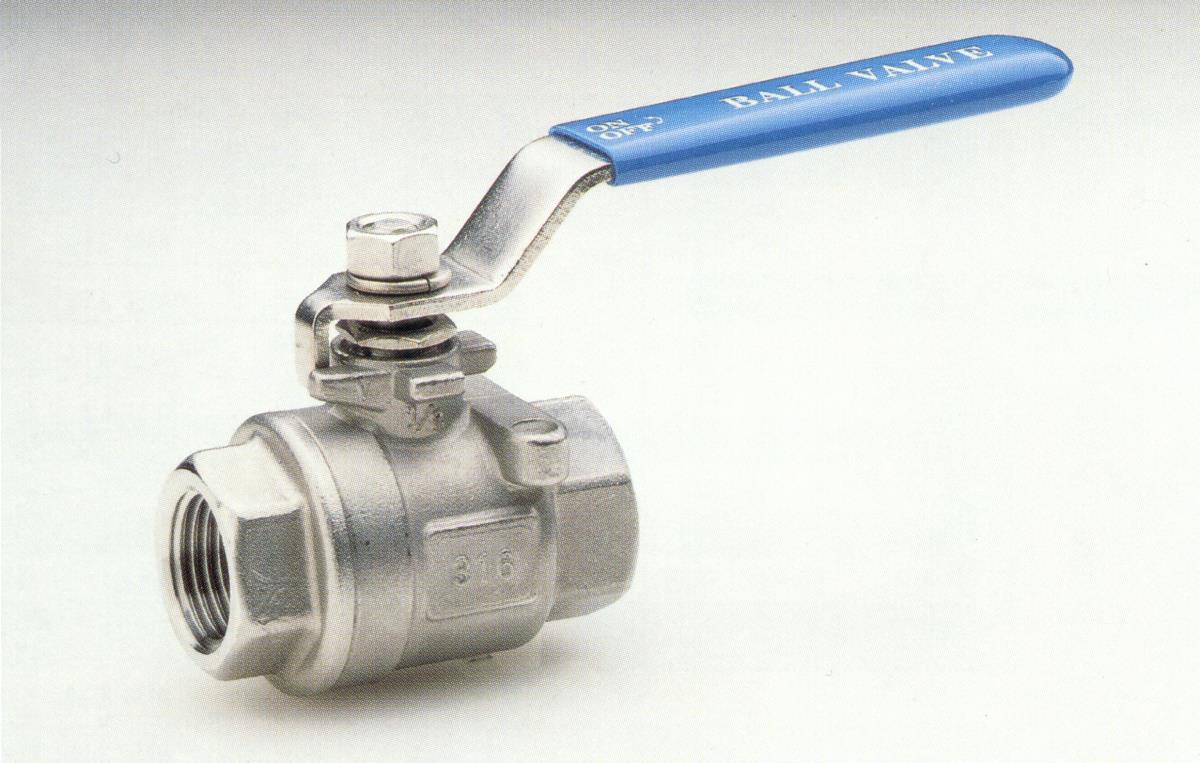

FEMALE - FEMALE LEVER STAINLESS STEEL BALL VALVE
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › STAINLESS STEEL BALL VALVE
Download sheet in pdf format
Code: 4035
Full bore AISI316 stainless steel ball valve.
Blue polyvinyl lever cover.
Nut, washer, lever, gasket in AISI 304 steel. Stem, ball, cap.
Braid press ring, thrust washer, joint gasket, PTFE seat ring.
THREAD: UNI EN 10226-1
CERTIFICATE: EN 10204 3.1
TEMPERATURES PRESSURES -10° +150°C
RATED PRESSURE: PN64
MAXIMUM PRESSURE: 70 bar
LOCKABLE
Full bore AISI316 stainless steel ball valve.
Blue polyvinyl lever cover.
Nut, washer, lever, gasket in AISI 304 steel. Stem, ball, cap.
Braid press ring, thrust washer, joint gasket, PTFE seat ring.
THREAD: UNI EN 10226-1
CERTIFICATE: EN 10204 3.1
TEMPERATURES PRESSURES -10° +150°C
RATED PRESSURE: PN64
MAXIMUM PRESSURE: 70 bar
LOCKABLE
| Code | Measures |
|---|---|
| 374035001/4 | 1/4" |
| 374035003/8 | 3/8" |
| 374035001/2 | 1/2" |
| 374035003/4 | 3/4" |
| 3740351 | 1" |
| 37403511/2 | 1"1/2 |
| 3740352 | 2" |
Related products

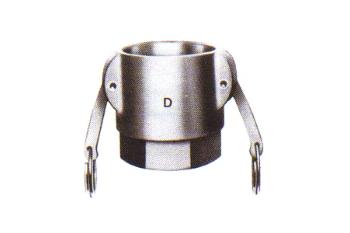

CAMLOCK TYPE D
