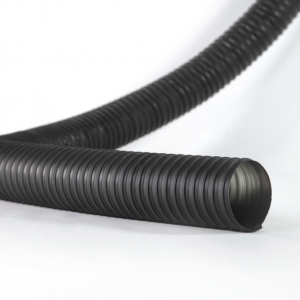

PL_CALOR_TPE_200 TUBE
ONLINE CATALOGUE › HOSES › Gas and hot fume suction pipes
Download sheet in pdf format
Very flexible tube made of extruded sheet of thermoplastic elastomer with the characteristic of being recyclable as it can be molded, extruded and reused like plastic, but has the typical elastic properties of rubber, which however is not recyclable due to its thermosetting characteristics.
Ideal for extracting engine exhaust gases, both on hose reels and on the floor.
Operating temperature: -20° +200°C
Particularly smooth internal surface. Indicated in the presence of aggressive fumes. Reinforced fabric with EPDM/PP plastic support spiral. Wall thickness of 0.40mm. Black colour.
Highly flexible and lightweight, compressible tube. Anti-vibration and anti-crushing, good chemical resistance. Compliant with RoHS regulations
Standard length 10/15 meters
Ideal for extracting engine exhaust gases, both on hose reels and on the floor.
Operating temperature: -20° +200°C
Particularly smooth internal surface. Indicated in the presence of aggressive fumes. Reinforced fabric with EPDM/PP plastic support spiral. Wall thickness of 0.40mm. Black colour.
Highly flexible and lightweight, compressible tube. Anti-vibration and anti-crushing, good chemical resistance. Compliant with RoHS regulations
Standard length 10/15 meters
| Diameters interior mm | Depression value bar | Curvature radius mm | Weight gr/m |
|---|---|---|---|
| 50/51 | 0.400 | 48 | 0.38 |
| 63/65 | 0.280 | 53 | 0.48 |
| 70 | 0.200 | 58 | 0.50 |
| 75/76 | 0.170 | 60 | 0.54 |
| 100/102 | 0.050 | 71 | 0.71 |
| 125/127 | 0.035 | 100 | 0.87 |
| 150/152 | 0.030 | 110 | 1.04 |
| 200/203 | 0.010 | 155 | 1.37 |
