ARMORVIN TOTAL PU OIL TPHF HOSE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

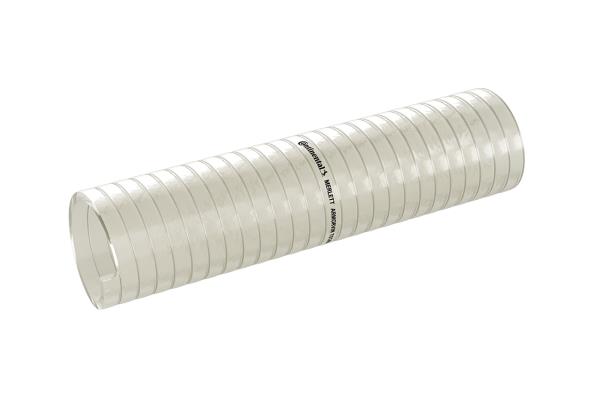

TPHF Polyurethane hose with built-in galvanized steel spiral
Use: for delivery and suction of liquids, oils and fatty food substances
Smooth surface both internally and externally
Operating temperature: -25°C 90°C
Without Ortho Phthalates
Certifications:
- Declaration of conformity - EU
- Declaration of Conformity - FDA
- Communication of presence of SVHC substances
- RoHS Statement
- “Conflict Mineral” Statement
- “USA TSCA” statement
section | Nominal Ø | External Ø | Depression exercise at 23° | Operating pressure at 23° | Burst pressure at 23° | Curvature radius | Weight meter | Length roll |
|---|---|---|---|---|---|---|---|---|
| 10 | 3/8 | 16.2 | 9 | 7 | 21 | 40 | 180 | 30 |
| 12 | 18.2 | 9 | 7 | 21 | 48 | 190 | 30 | |
| 16 | 5/8 | 22.2 | 9 | 7 | 21 | 74 | 260 | 30 |
| 18 | 25 | 9 | 7 | 21 | 76 | 350 | 30 | |
| 19 | 3/4 | 26.2 | 9 | 7 | 21 | 80 | 410 | 30 |
| 20 | 28.5 | 9 | 7 | 21 | 80 | 410 | 30 | |
| 25 | 1 | 33.5 | 9 | 7 | 21 | 100 | 520 | 30 |
| 30 | 39.2 | 9 | 7 | 21 | 120 | 620 | 30 | |
| 32 | 1 1/4 | 41 | 8 | 6 | 18 | 130 | 690 | 30 |
| 35 | 43.6 | 8 | 6 | 18 | 135 | 750 | 30 | |
| 38 | 1 1/2 | 46.7 | 8 | 6 | 18 | 140 | 800 | 30 |
| 40 | 49.4 | 8 | 6 | 18 | 160 | 900 | 30 | |
| 45 | 1 3/4 | 54 | 8 | 6 | 18 | 180 | 1040 | 30 |
| 50 | 2 | 60.4 | 8 | 6 | 18 | 200 | 1160 | 30 |
| 60 | 70 | 8 | 6 | 18 | 240 | 1440 | 30 | |
| 63 | 2 1/2 | 73.4 | 8 | 5 | 15 | 280 | 1560 | 30 |
| 70 | 80 | 8 | 5 | 15 | 300 | 1650 | 30 | |
| 75 | 85.2 | 7 | 5 | 15 | 320 | 1730 | 30 | |
| 76 | 3 | 86 | 7 | 5 | 15 | 330 | 1750 | 30 |
| 80 | 90 | 7 | 4 | 12 | 340 | 1800 | 30 | |
| 100 | 114 | 7 | 3 | 9 | 400 | 3250 | 20 | |
| 102 | 4 | 116 | 7 | 3 | 9 | 420 | 3300 | 20 |
