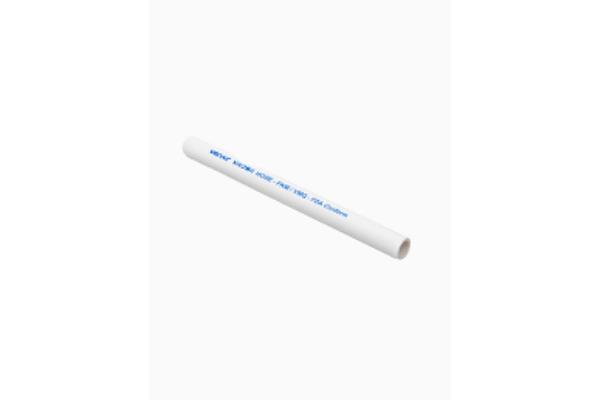

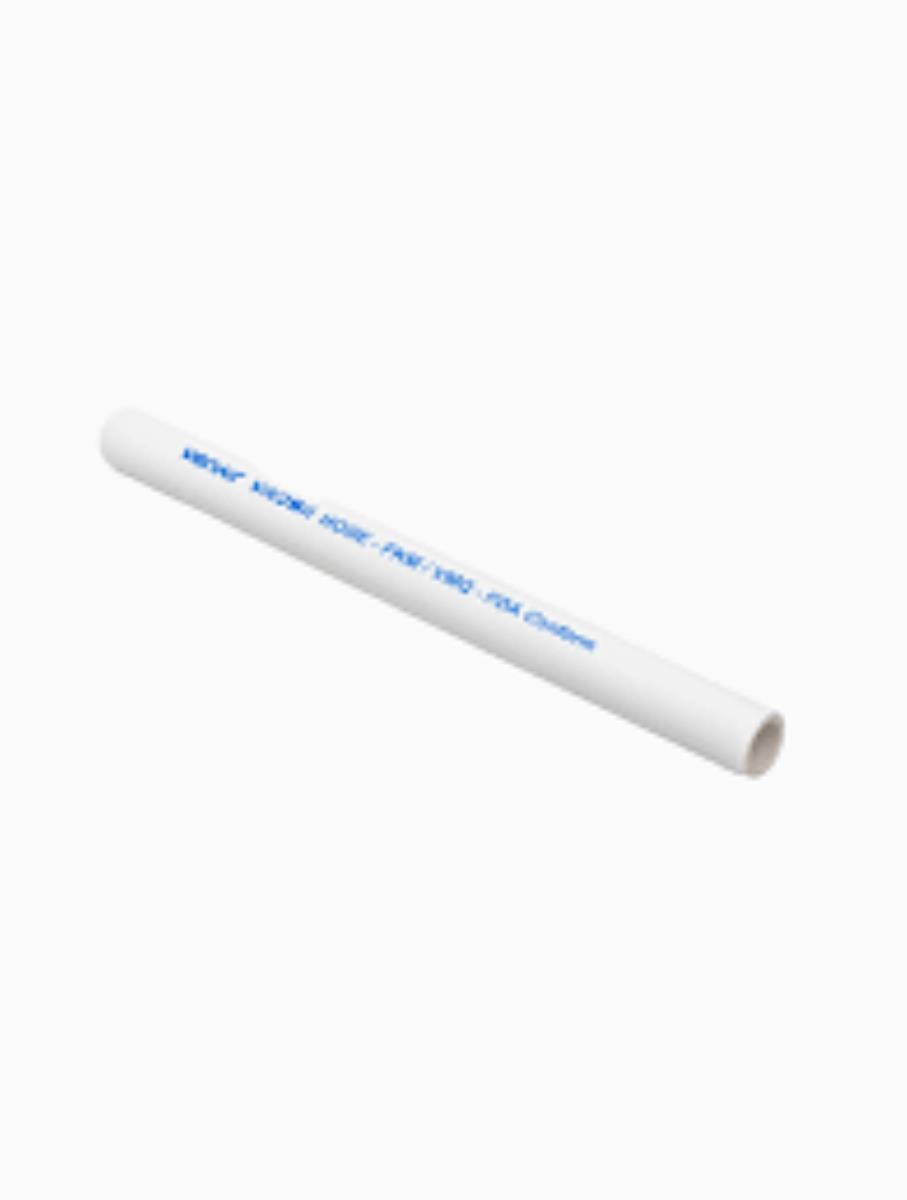

VITOSIL HOSE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format
Chemical resistant silicone hose with FKM inner layer for aggressive media.
It is particularly suitable for the transport of aggressive fluids not compatible with silicone, such as acids or oils. This tube is capable of transporting liquid or semi-liquid foods at high temperatures by impulse or suction, as its design resists pressure or vacuum.
Outer layer
VMQ silicone, smooth and translucent.
Reinforcement: Stainless steel wire spring and polyester fabric reinforcement.
Inner layer: FKM, smooth and black.
Temperature: -30º +180ºC (-75F +356ºF)
Production length: 4 meters (13.12 feet) and 6 m in standard diameters.
Approvals
FDA-CFR 21, entry 177.2600.
ResAp 2004 (5), in compliance with Reg. 1935/2004/EEC and Reg. 10/2011/EEC.
FDA-CFR 21, entry 177.2600.
ResAp 2004 (5), in compliance with Reg. 1935/2004/EEC and Reg. 10/2011/EEC.
| Internal diameter | Wall thickness | Operating pressure | Burst pressure |
| mm | mm | Cafe | Cafe |
| 18 | 3.70 | 1.40pm | 40.30 |
| 25 | 3.70 | 8.40 | 25.30 |
| 35 | 3.70 | 5.50 | 4.20pm |
| 38 | 3.70 | 4.60 | 13.70 |
| 48 | 3.70 | 4.10 | 12.30 |
| 60 | 3.70 | 3.50 | 10.60 |
| 65 | 3.70 | 3.30 | 9.90 |
| 70 | 3.70 | 3.10 | 9.20 |
| 75 | 3.70 | 2.80 | 8.40 |
| 80 | 3.70 | 2.60 | 7.70 |
| 90 | 3.70 | 2.10 | 6.30 |
