FLEX HOSE 150 - S/FR DOUBLE WALL
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format

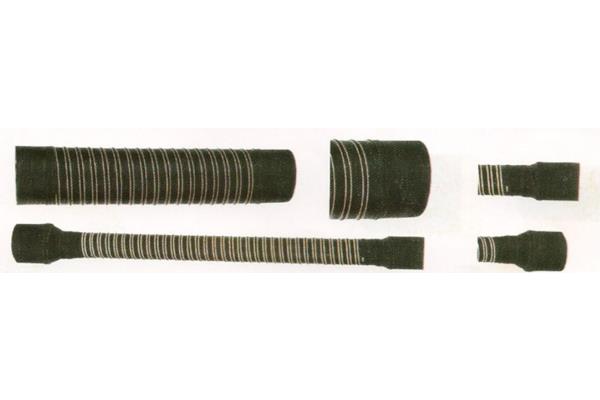

Flexible hose made with a double layer of fiberglass fabric coated with SELF-EXTINGUISHING neoprene reinforced by a harmonic steel spiral and double external fiberglass cord, smooth interior.
It can be made with smooth sleeves on the ends, a good alternative to facilitate pipe installation. Very flexible, light and with great axial compressibility of approximately 30%, this is a tube with a spring effect.
Black colour.
Maximum pressure approximately 3 times the operating pressure.
Operating temperature range -55° to 130º.
These tubes can tolerate up to 150° for short periods of time.
Standard length 4 metres, special executions on request.
Complies with the following flame retardant regulations:
- class M1 (UNE 23723-90)
- CL V0 UL94
- EN 45545-2:2013
- UNI CEI 11170-3:2005
Use: metalworking, automotive, aerospace industries, cooling of electromechanical systems, braking systems, naval engine rooms.
Available in use sizes with sleeves at the end!
It can be made with smooth sleeves on the ends, a good alternative to facilitate pipe installation. Very flexible, light and with great axial compressibility of approximately 30%, this is a tube with a spring effect.
Black colour.
Maximum pressure approximately 3 times the operating pressure.
Operating temperature range -55° to 130º.
These tubes can tolerate up to 150° for short periods of time.
Standard length 4 metres, special executions on request.
Complies with the following flame retardant regulations:
- class M1 (UNE 23723-90)
- CL V0 UL94
- EN 45545-2:2013
- UNI CEI 11170-3:2005
Use: metalworking, automotive, aerospace industries, cooling of electromechanical systems, braking systems, naval engine rooms.
Available in use sizes with sleeves at the end!
| Code | Dimensions internal Ø mm | Operating pressure Cafe | Depression mm(H 2 O) | Radius of curvature mm | Weight gr/m |
|---|---|---|---|---|---|
| 11NV150S/FR019 | 19 | 3.0 | 7300 | 9 | 110 |
| 11NV150S/FR025 | 25 | 2.8 | 7100 | 12 | 185 |
| 11NV150S/FR038 | 38 | 2.6 | 6000 | 18 | 305 |
| 11NV150S/FR051 | 51 | 2.6 | 5200 | 24 | 360 |
| 11NV150S/FR063 | 63 | 2.4 | 4600 | 31 | 485 |
| 11NV150S/FR076 | 76 | 2,2 | 4300 | 38 | 580 |
| 11NV150S/FR089 | 89 | 2.0 | 4000 | 44 | 690 |
| 11NV150S/FR095 | 95 | 1.9 | 3700 | 49 | 730 |
| 11NV150S/FR102 | 102 | 1.9 | 3500 | 52 | 770 |
| 11NV150S/FR114 | 114 | 1.5 | 3000 | 60 | 845 |
| 11NV150S/FR127 | 127 | 1.4 | 2400 | 69 | 925 |
| 11NV150S/FR152 | 152 | 1,2 | 1700 | 75 | 1200 |
| 11NV150S/FR178 | 180 | 1.0 | 1200 | 90 | 1430 |
| 11NV150S/FR203 | 203 | 0.7 | 900 | 101 | 1650 |
| 11NV150S/FR250 | 254 | 0.5 | 700 | 150 | 2090 |
| 11NV150S/FR305 | 305 | 0.3 | 500 | 200 | 2550 |
