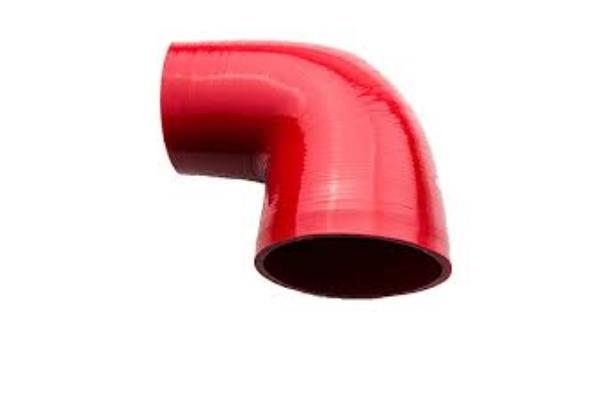

SILICONE SLEEVE (90 curve) HT/NMX 250 C red
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format
APPLICATION:
hoses that can be used in air conditioning systems for civil and industrial vehicles, cogeneration units, marine engines, transport of high temperature fluids.
CHARACTERISTICS:
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust. Excellent resistance to pressure, thermal aging and oxidizing agents (oxygen, ozone and UV rays). Resistant to hardening the tube is resistant to compressive forces. Ideal for use at high temperatures between -60° and 250°C, it can reach temperatures up to 275°C for short periods of time .
CONSTRUCTION:
construction material VMQ (Vinyl-Methyl HT) silicone rubber compliant with EU directive 2002/95/ECC for the limitation of the use of hazardous substances (RoHS). Structure reinforced with triple layer of ARAMID fiber fabric, shaped shape with 90° curves. BRICK RED COLOR. Wall thickness 3.70 mm - tolerance +1/-0.5mm.
LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high depression, nor for the transport of abrasive powders.
hoses that can be used in air conditioning systems for civil and industrial vehicles, cogeneration units, marine engines, transport of high temperature fluids.
CHARACTERISTICS:
smooth in appearance externally and internally, not corruptible by antifreeze liquids or rust. Excellent resistance to pressure, thermal aging and oxidizing agents (oxygen, ozone and UV rays). Resistant to hardening the tube is resistant to compressive forces. Ideal for use at high temperatures between -60° and 250°C, it can reach temperatures up to 275°C for short periods of time .
CONSTRUCTION:
construction material VMQ (Vinyl-Methyl HT) silicone rubber compliant with EU directive 2002/95/ECC for the limitation of the use of hazardous substances (RoHS). Structure reinforced with triple layer of ARAMID fiber fabric, shaped shape with 90° curves. BRICK RED COLOR. Wall thickness 3.70 mm - tolerance +1/-0.5mm.
LIMITATIONS:
compliance with the declared values, not suitable for the continuous passage and storage of hydrocarbons (even if resistant to traces of oil and diesel). It is not suitable for use at high depression, nor for the transport of abrasive powders.
| ITEM NUMBER | DESCRIPTION |
| 10SILI250NOMEX90_032 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 32 |
| 10SILI250NOMEX90_035 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 35 |
| 10SILI250NOMEX90_040 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 40 |
| 10SILI250NOMEX90_045 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 45 |
| 10SILI250NOMEX90_050 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 50 |
| 10SILI250NOMEX90_055 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 55 |
| 10SILI250NOMEX90_060 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 60 |
| 10SILI250NOMEX90_065 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 65 |
| 10SILI250NOMEX90_070 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 70 |
| 10SILI250NOMEX90_076 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 76 |
| 10SILI250NOMEX90_080 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 80 |
| 10SILI250NOMEX90_088 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 88 |
| 10SILI250NOMEX90_090 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 90 |
| 10SILI250NOMEX90_100 | SILICONE SLEEVE HT/NMX 250°C red - CURVED 90° - STEM 150 - 3 plies Ø 100 |
