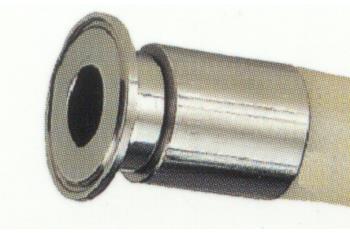

STAINLESS STEEL CLAMP FITTINGS

Clamp fittings are components primarily used in process piping in the pharmaceutical and food industries. They offer a quick and extremely safe connection system for creating distribution lines in production processes. Clamp fittings are the most commonly used in clean-in-place (CIP) processes due to their ease of assembly and disassembly, which does not require any special tools.
The “Clamp” fittings are produced in Aisi 316L from solid bar, hot-forged forged or from tube depending on the type of item.

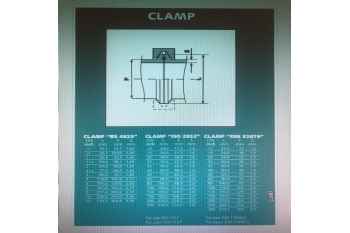

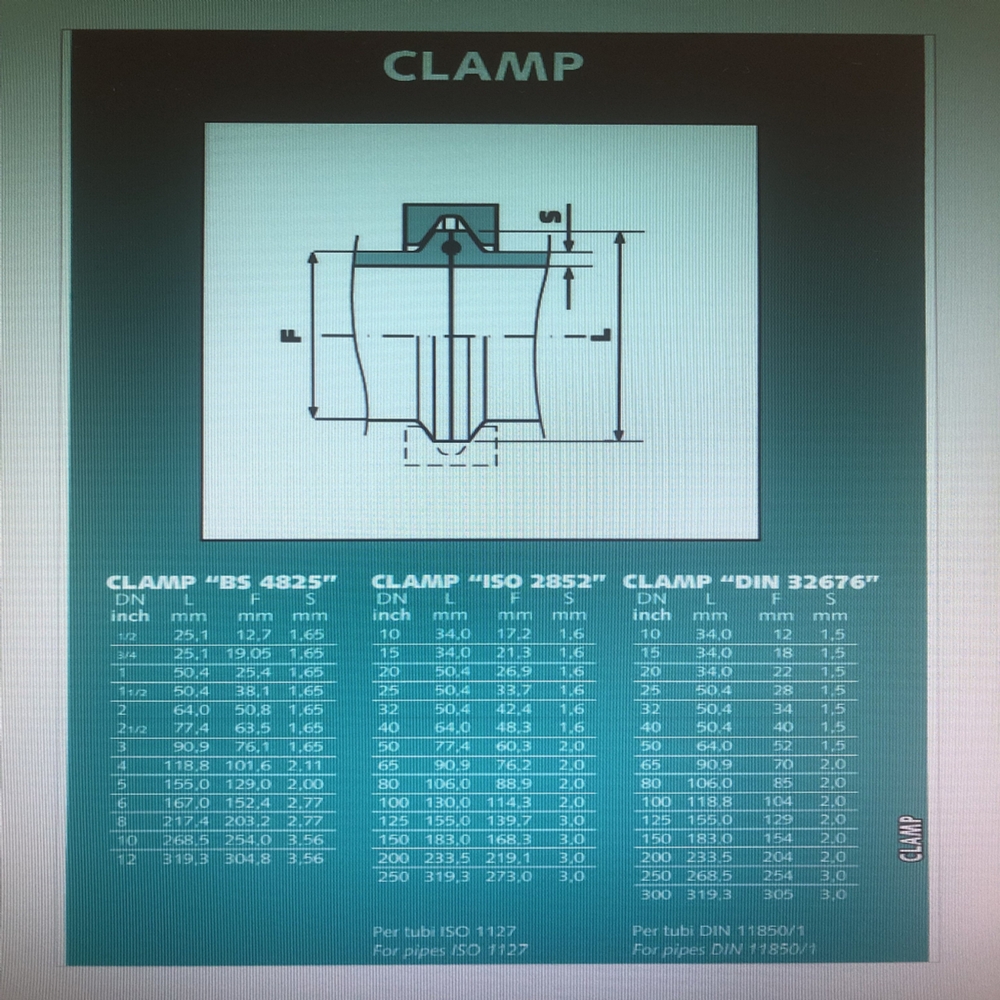

This type of fitting is produced according to three different standards with different dimensions:

• INCH/BS 4825 (½"-4")

• DIN 32676 (DN 15-DN 100)

• ISO 2852 (3/8"-4")
