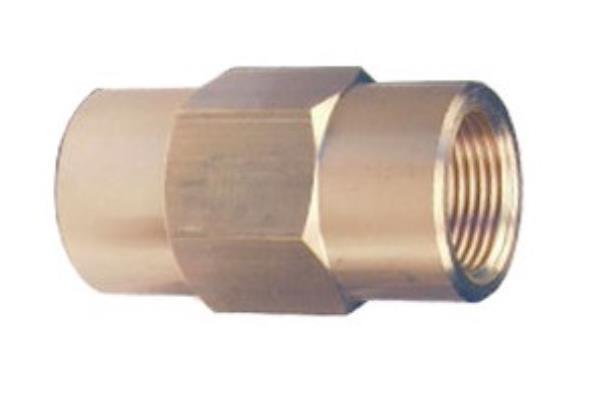

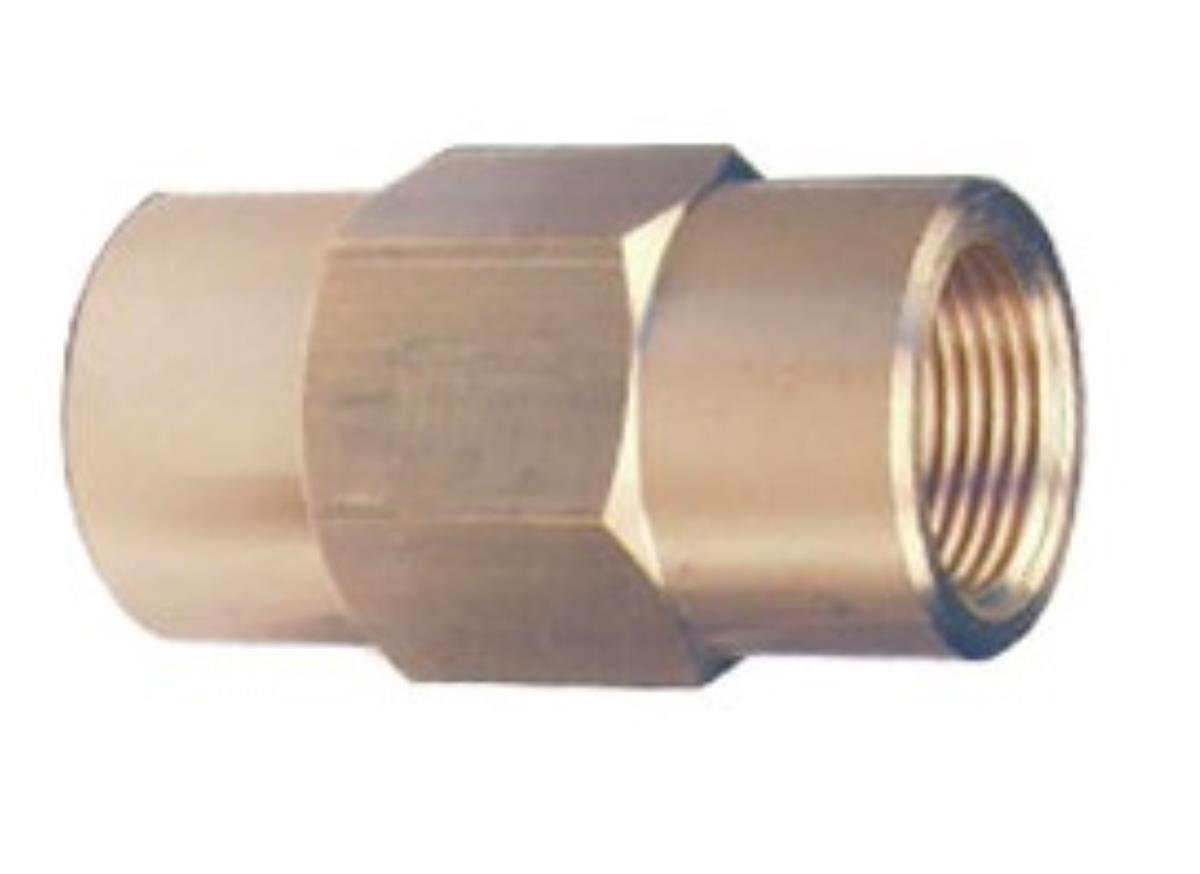

ONE-WAY CYLINDRICAL VALVE OT PN20
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › BRASS CHECK VALVES
Download sheet in pdf format
CHARACTERISTICS:
Body: OT 58 yellow brass
Shutter: OT 58 yellow brass
Spring: AISI 302 stainless steel
O-ring: - NBR operating temperature from -20°C to 100°C
- VITON from -20°C to 205°C on request
- EPDM: from -40°C to 130°C on request
Possibility of assembly with VITON or EPDM O-rings - Different opening pressures on request -
Possibility of supplying them degreased
Also available on request with NPT thread
Clamping ring: AISI 302 stainless steel
THREAD Cylindrical gas BSPP UNI ISO 228/1 from G1/8" to G1"
WORKING PRESSURE: 20 Bar
Indication of the direction of the fluid engraved on the body
USE: Compressed air, water, gas, non-aggressive mineral or synthetic oils in non-corrosive environments and fluids compatible with the construction materials.
Body: OT 58 yellow brass
Shutter: OT 58 yellow brass
Spring: AISI 302 stainless steel
O-ring: - NBR operating temperature from -20°C to 100°C
- VITON from -20°C to 205°C on request
- EPDM: from -40°C to 130°C on request
Possibility of assembly with VITON or EPDM O-rings - Different opening pressures on request -
Possibility of supplying them degreased
Also available on request with NPT thread
Clamping ring: AISI 302 stainless steel
THREAD Cylindrical gas BSPP UNI ISO 228/1 from G1/8" to G1"
WORKING PRESSURE: 20 Bar
Indication of the direction of the fluid engraved on the body
USE: Compressed air, water, gas, non-aggressive mineral or synthetic oils in non-corrosive environments and fluids compatible with the construction materials.
| Measure | Length mm | Height mm | Weight gr. | Minimum pressure of opening Cafe |
| 1/8" | 40 | 17 | 52 | 0.35 |
| 1/4 | 41 | 17 | 45 | 0.30 |
| 3/8" | 47 | 22 | 90 | 0.25 |
| 1/2" | 56 | 27 | 153 | 0.08 |
| 3/4" | 66 | 34 | 285 | 0.10 |
| 1" | 79 | 40 | 388 | 0.80 |
