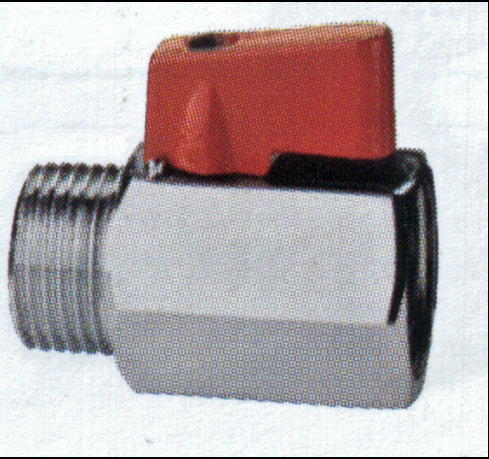

541 Male-Female mini valve
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › MINI BALL VALVES IN BRASS
Download sheet in pdf format
Code: 541
Two-way chrome-plated ball valve for every hydraulic and pneumatic system.
Ideal for water, oils, compressed air.
Operating temperature: -10° 90° C
Operating pressure: 0-10 bar
Construction:
tropicalized steel screw
lever in glass-filled Nylon
OR-NBR 70 SH/A gasket
operating rod OT CW614N
sphere in thick chromed OT CW6147N UNI-EN 12164
PTFE ball seals
body in OT CW617N UNI-EN 12164 obtained from a profiled brass bar
ISO228/1 - BSPT thread
STANDARD COLOR LEVER RED!
BLACK LEVER on request!
Two-way chrome-plated ball valve for every hydraulic and pneumatic system.
Ideal for water, oils, compressed air.
Operating temperature: -10° 90° C
Operating pressure: 0-10 bar
Construction:
tropicalized steel screw
lever in glass-filled Nylon
OR-NBR 70 SH/A gasket
operating rod OT CW614N
sphere in thick chromed OT CW6147N UNI-EN 12164
PTFE ball seals
body in OT CW617N UNI-EN 12164 obtained from a profiled brass bar
ISO228/1 - BSPT thread
STANDARD COLOR LEVER RED!
BLACK LEVER on request!
| code | Dimension threads | PACKAGING |
|---|---|---|
| 510541001/8 | 1/8" | 30 |
| 510541001/4 | 1/4" | 30 |
| 510541003/8 | 3/8 | 30 |
| 510541001/2 | 1/2" | 25 |
| 510541003/4 | 3/4" | 15 |
