Code: 6400

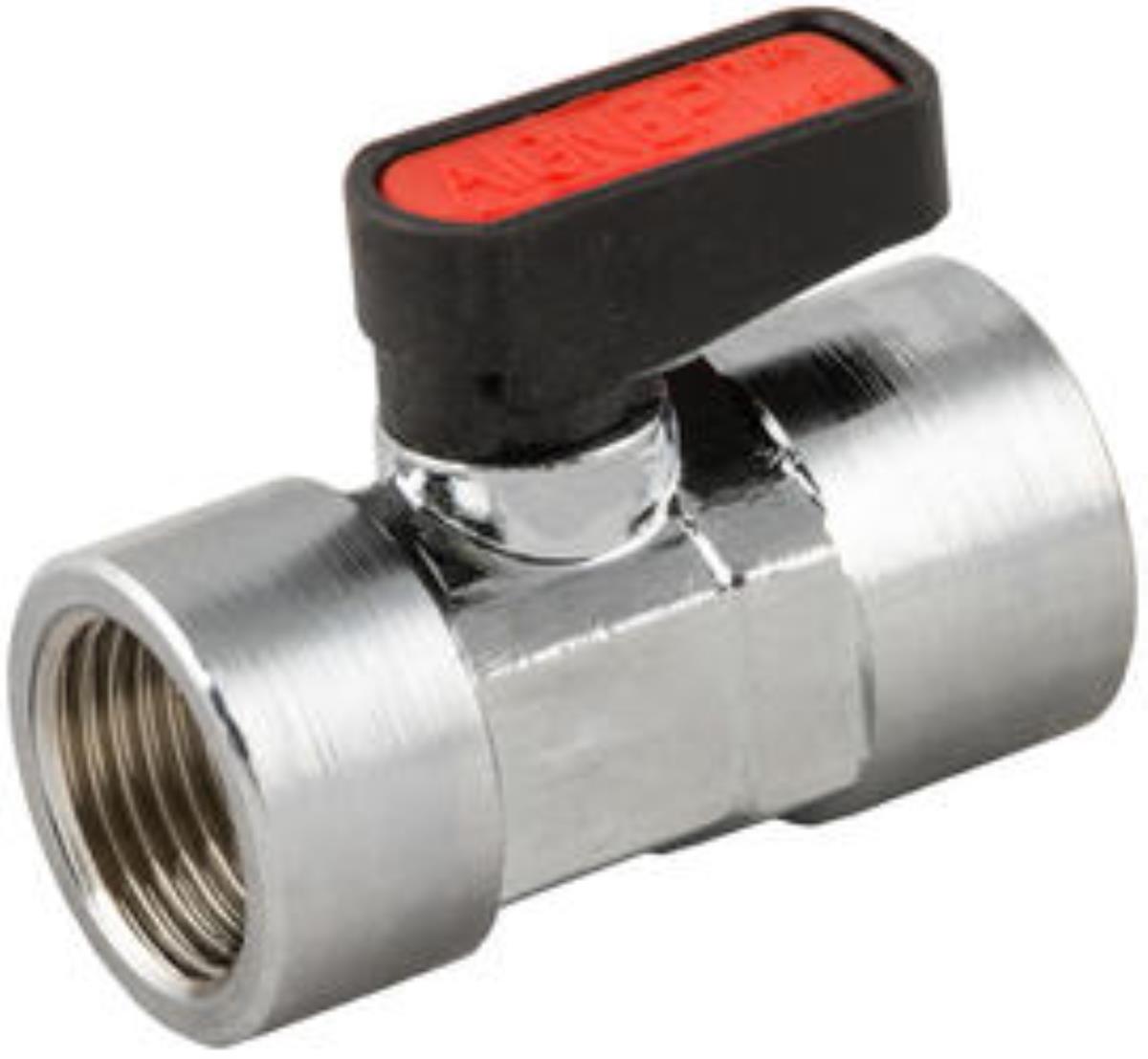

Mini FEMALE-FEMALE brass ball valve with cylindrical gas thread compliant with ISO 228 Class A.
BODY and BALL construction in chromed brass. PA66 handle.
Ball seat gasket in PTFE - Shaft gasket in NBR
Maximum pressure 20 bar
Operating temperature: -20° +80° C.
Compatible fluids: Compressed air, water, oils
Mini FEMALE-FEMALE brass ball valve with cylindrical gas thread compliant with ISO 228 Class A.
BODY and BALL construction in chromed brass. PA66 handle.
Ball seat gasket in PTFE - Shaft gasket in NBR
Maximum pressure 20 bar
Operating temperature: -20° +80° C.
Compatible fluids: Compressed air, water, oils
| Code item | Measures |
|---|---|
| 5164001/8 | 1/8" |
| 5164001/4 | 1/4" |
| 5164003/8 | 3/8" |
| 5164001/2 | 1/2" |
| 5164003/4 | 3/4" |
