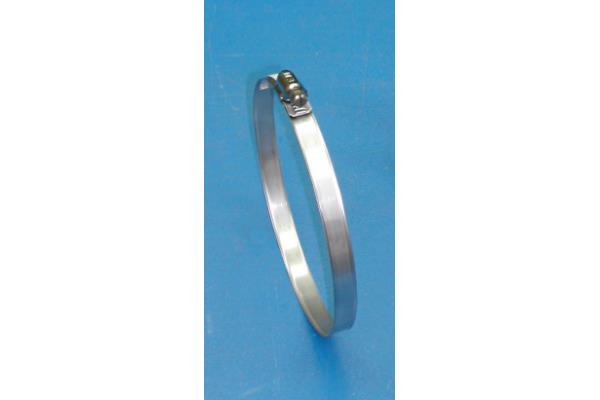

STAINLESS STEEL CLAMP 9mm W4-W5 band
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › AISI 304-316 W4-W5 STAINLESS STEEL CLAMPS
Download sheet in pdf format
Worm-drive hose clamps according to DIN 3017 BAND 9mm
TORRO cable tie made in Germany with high performance and sealing.
The screw/cassette system's design ensures high tightening torques and satisfies the most demanding applications; the band's edges are rounded to prevent damage to the pipes.
standard supply entirely in W4 AISI 304 steel
supply on request entirely in W5 AISI 316 food grade steel
– Asymmetrical case to prevent the drawer from twisting when closing
– uniform distribution of forces and assembly safety Screw with integrated guide collar
– ease of assembly thanks to the collar integrated into the screw that guides the strap tape
– Material and clamping range indicated on the tape
– error prevention Asymmetric drawer position
– prevents the case from tilting when tightening the small drawer saddle clamp
– uniform distribution of contact pressure
– better efficiency Smooth or internally printed ribbon
– optimal protection of the pipe thanks to the rounded edge band
TORRO cable tie made in Germany with high performance and sealing.
The screw/cassette system's design ensures high tightening torques and satisfies the most demanding applications; the band's edges are rounded to prevent damage to the pipes.
standard supply entirely in W4 AISI 304 steel
supply on request entirely in W5 AISI 316 food grade steel
– Asymmetrical case to prevent the drawer from twisting when closing
– uniform distribution of forces and assembly safety Screw with integrated guide collar
– ease of assembly thanks to the collar integrated into the screw that guides the strap tape
– Material and clamping range indicated on the tape
– error prevention Asymmetric drawer position
– prevents the case from tilting when tightening the small drawer saddle clamp
– uniform distribution of contact pressure
– better efficiency Smooth or internally printed ribbon
– optimal protection of the pipe thanks to the rounded edge band
closing field | PACKAGING |
| 8-12 | 100 |
| 8-16 | 100 |
| 12-20 | 100 |
| 16-25 | 100 |
| 16-27 | 100 |
| 25-32 | 100 |
| 25-40 | 100 |
| 30-45 | 100 |
| 35-50 | 50 |
| 40-60 | 50 |
| 50-70 | 50 |
| 60-80 | 25 |
| 70-90 | 25 |
| 80-100 | 25 |
| 90-110 | 25 |
| 100-120 | 10 |
| 110-130 | 10 |
| 120-140 | 10 |
| 130-150 | 10 |
| 140-160 | 10 |
