SAFETY CLAMP - SPANNLOC

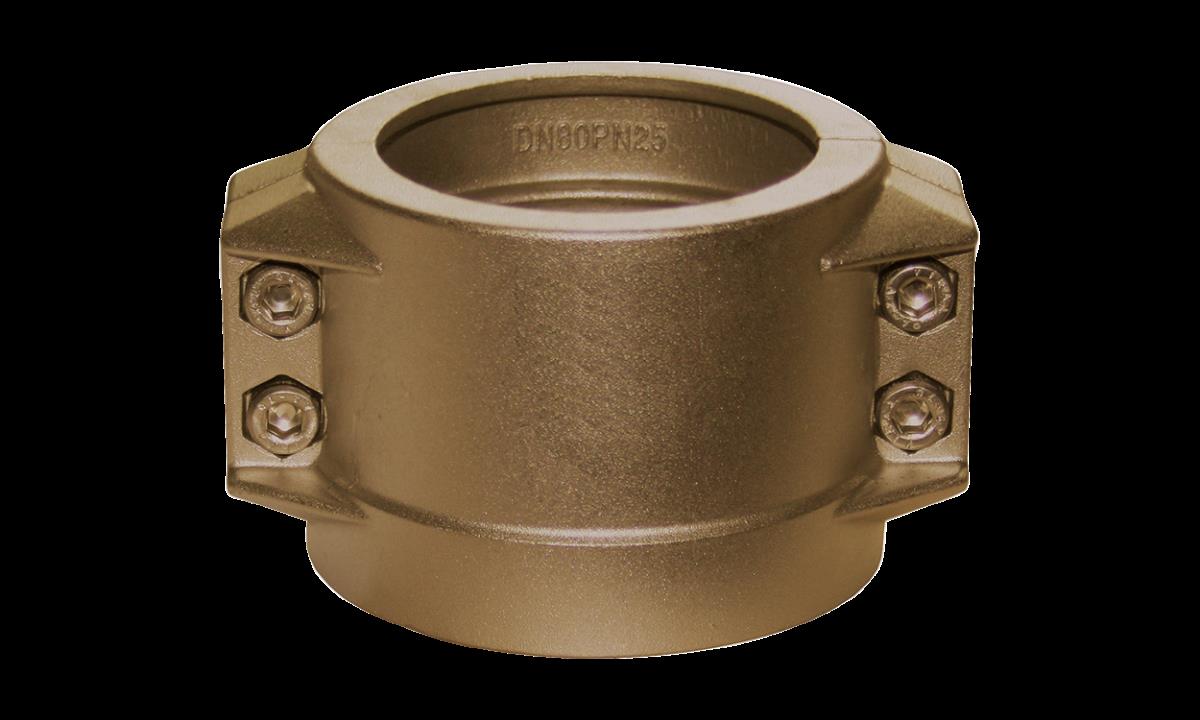

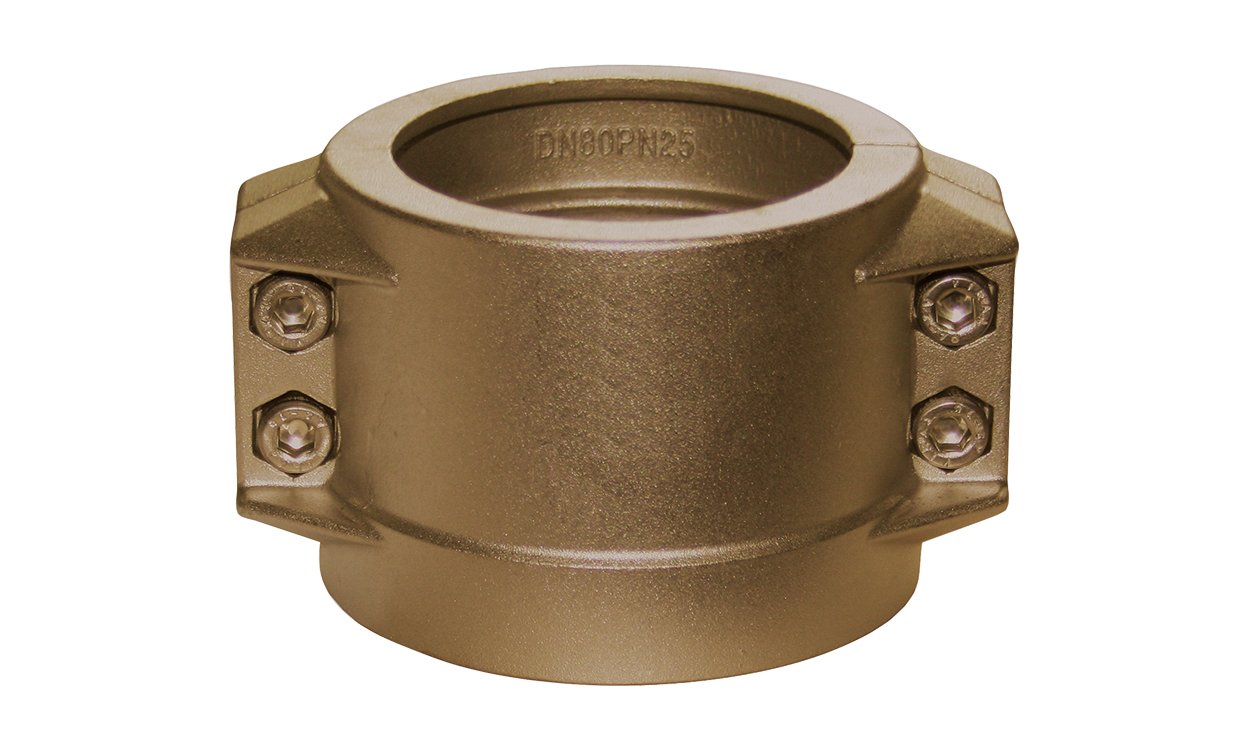

SAFETY CLAMP EN 14420-3 BRASS

SAFETY CLAMP EN 14420-3 BRASS
Download sheet in pdf format

Description and technical data

Safety clamp according to EN 14420-3 STANDARD in BRASS - Stainless steel screws
Maximum working pressure: 25 bar up to DN 100.

The size identifies the closing range compatible with the external diameter of the tube

Attention!
The seal is guaranteed only for tightening on smooth tubes externally or on smooth sleeves.


dn Max pressure closing field screws
13 25 22-24 M6x20
19 25 30-33 M6x20
25 25 36-39 M6x20
32 25 43-46 M6x20
38 25 50-53 M6x20
38 25 53-56 M6x20
50 25 63-67 M8x25
63 25 78-82 M8x25
75 25 89-93 M8x25
100 25 114-119 M10x40
