TANK UNLOADING VALVE
ONLINE CATALOGUE › EQUIPMENT FOR FUEL SYSTEMS › FITTINGS FOR CUNA TANKERS
Download sheet in pdf format
Code: 094470

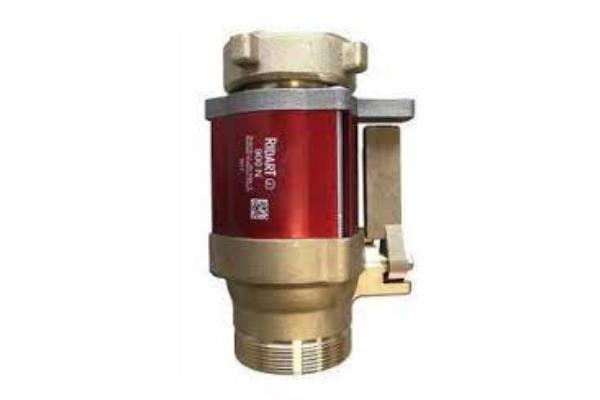

TANK TRUCK UNLOADING VALVE WITH LEVER
Body Aluminium profile, stamped brass Thread BSP ISO 228-1
Hard chrome plated brass sphere
NBR, Teflon, Viton gaskets
Red color
Anti-drip opening pressure 200 mbar
Flow rate 700 l/min (gravity, h=3.5 metres, 3” pipe)
Drop discharge
Maximum pressure 4 bar
Weight 3.2 kg
TESTS
- Leak test
- Opening/Closing (over 18,000 cycles, 10 flushes per day for 5 years)
- Valve closing tightness test
- Crash test (over 3600 impacts, 50 cm drop)
