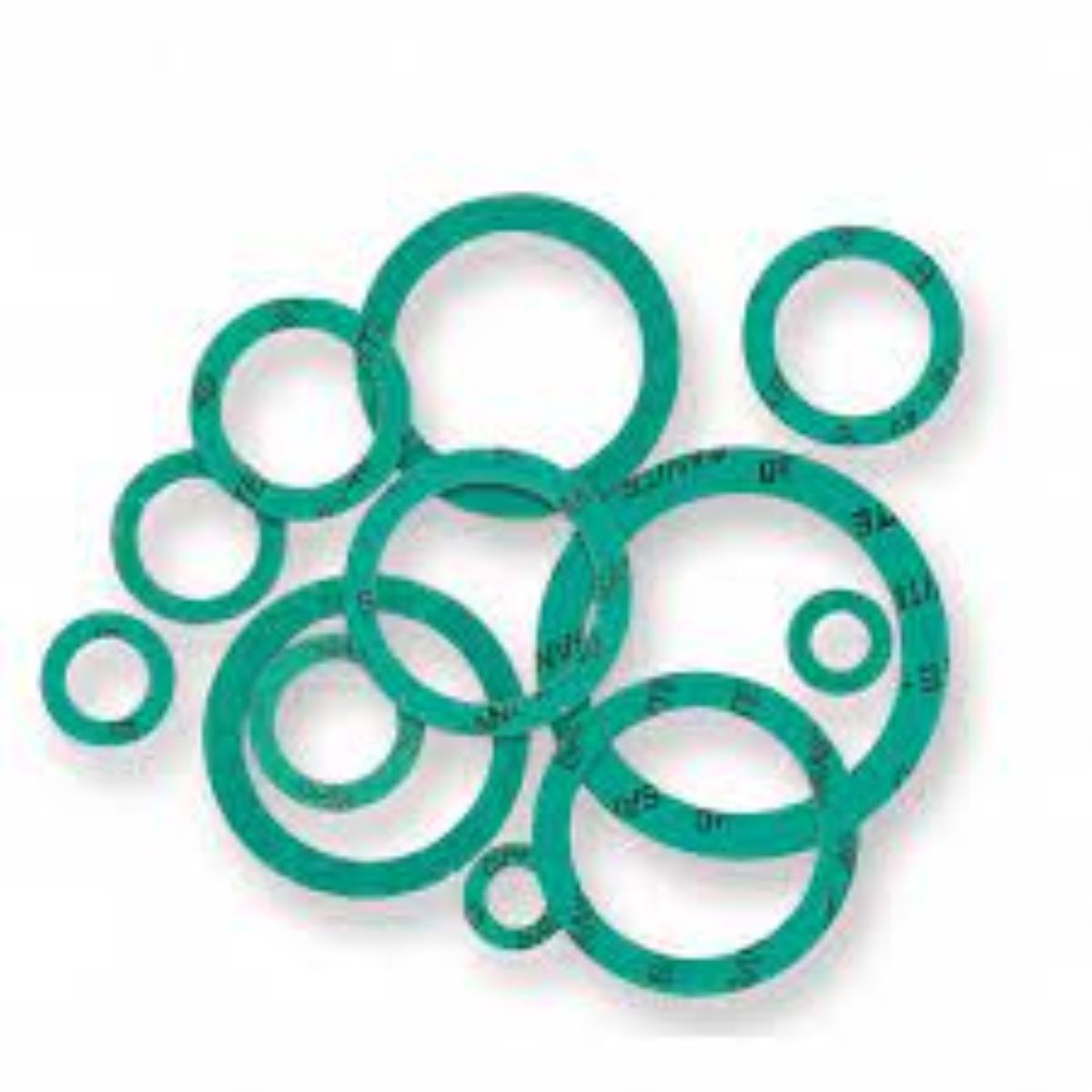

GREEN SEAL GASKET FOR FLAT SEAT
Description and technical data
GREEN GASKET suitable for gas, water, oil and hydrocarbons. Best quality Working pressure from 0 to 50 bar Operating temperature from 0° to 220° C Certifiable for use in the passage of drinking water (TZW) and gas (DVGW-VP 401 and DVGW DIN 3535-6) packs of 25 pieces
| Measure | code | OR
internal
mm | OR
external
mm | thickness
mm | conf. |
| 1/2" | 37401003 | 24 | 34 | 2 | 25 |
| 3/4" | 37401004 | 27 | 38 | 2 | 25 |
| 1" | 37401005 | 32 | 44 | 2 | 25 |
| 1"1/4 | 37401006 | 42 | 55 | 2 | 25 |
| 1"1/2 | 37401007 | 46 | 62 | 2 | 25 |
| 2" | 37401008 | 60 | 78 | 2 | 25 |
| 2"1/2 | 37401009 | 75 | 96 | 2 | 25 |
| 3" | 3740100A | 88 | 109 | 2 | 25 |
| 4" | 3740100C | 113 | 134 | 2 | 25 |
