STANDARD FITTINGS IN YELLOW BRASS
BRASS fittings for the connection of low pressure, low temperature, NON aggressive, NON food fluids.
THREAD UNI EN 10226-1 (EX ISO 7)
conical type for external thread (male) and internal cylindrical (female).
Suitable for the passage of flammable gases (standard EN 1775 - UNI 7129)
The seal is mechanical on the thread, even if the use of hemp and mastics or PTFE tape is not excluded.
WORKING PRESSURES
| DIMENSIONS | UP TO 120° | UP TO 225° |
| FROM 1/4" TO 3/4" | 25 bars | 16 bars |
| FROM 1" TO 2" | 16 bars | 10 bars |
| FROM 2"1/2 | 10 bars | 6 bars |
1093 EXCELSIOR STRAIGHT FITTING
Yellow brass fitting 'excelsior' straight in 3 pieces bsp thread conical seat. code measure 331093015-03/8 3/8"...
1094 EXCELSIOR CURVED FITTING
Yellow brass 'excelsior' angled fitting in 3 pieces - bsp thread conical seat code measure 331094015-03/8 3/8" -...

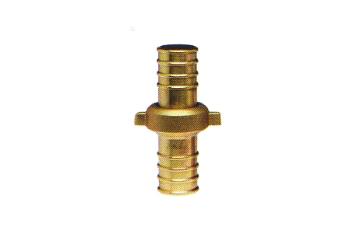

1095 HOSE JOINT
3-piece yellow brass hose fitting with conical seat code measure 331094015 15 331095018 18 331095020 20 331095025 25 331...

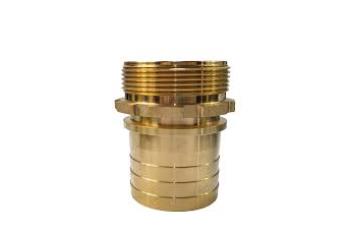

MALE HOSE CONNECTOR EN 14420-2 WITH BRASS ...
Bspp male threaded brass fitting cylindrical compliant with en 14420-2 with barbed hose connector and safety collar br/c...

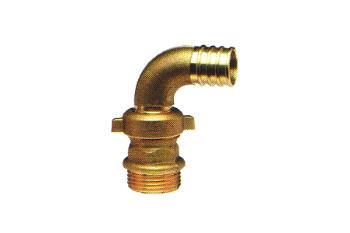

1109 ROMA MALE HOSE PORT
Yellow brass fitting conical bsp male threaded hose fitting 'roma' type item measure packaging production 33110...
1110 ROMA FEMALE HOSE PORT
Yellow brass fitting conical bsp female threaded hose fitting 'roma' type code measure 331110008-01/8 1/8" - 8 3...

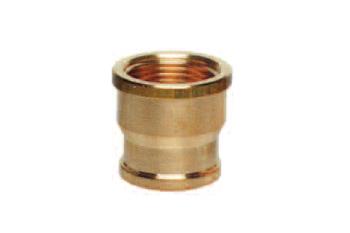

3018 REDUCED SLEEVE
Female-female yellow brass reduced sleeve code measure 33301803/8-01/4 3/8" - 1/4" 33301803/8-01/2 3/8" -1/2" 33301801/2...

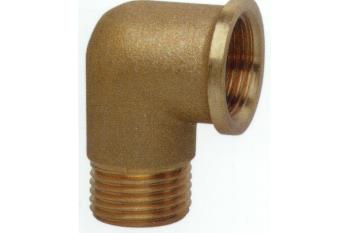

3020 ELBOW FITTING 90 Male Female in Brass
90° elbow fitting male female in yellow brass code measure 33302001/4 1/4" 33302003/8 3/8" 33302001/2 1/2" 33302003/4 3/...

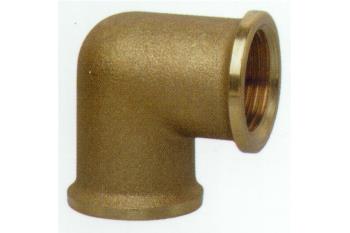

3022 FEMALE elbow fitting
90° female-female elbow fitting in yellow brass code measure 33302201/4 1/4" 33302203/8 3/8" 33302201/2 1/2" 33302203/4 ...

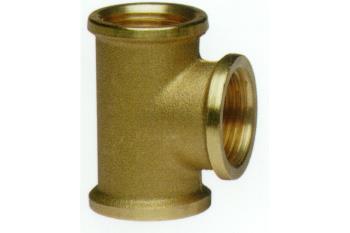

3024 FEMALE TEE SLEEVE
Female-female-female tee sleeve in yellow brass code measure 33302401/4 1/4" 33302403/8 3/8" 33302401/2 1/2" 33302403/4 ...

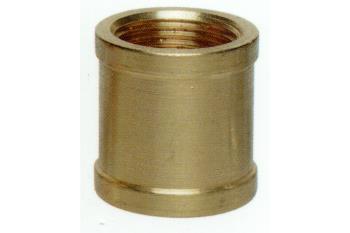

3026 FEMALE-FEMALE SLEEVE
Female-female yellow brass sleeve code measure 33302601/4 1/4" 33302603/8 3/8" 33302601/2 1/2" 33302603/4 3/4" 3330261 1...

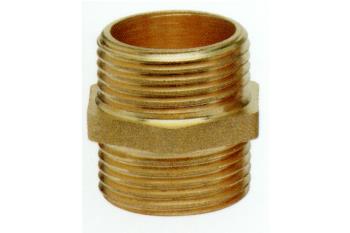

3028 CONICAL NIPPLE - DOUBLE REDUCED SCREW
Conical nipple - double reduced screw in yellow brasscode measure 33302801/8 1/8" 33302801/8-01/4 1/8" - 1/4" 33302801/8...

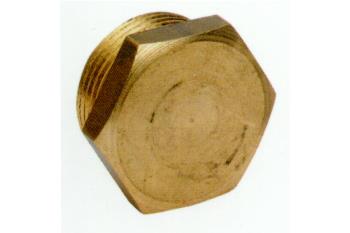

3030 MALE CAP
Yellow brass conical male cap code measure 33303001/4 1/4" 33303003/8 3/8" 33303001/2 1/2" 33303003/4 3/4" 3330301 1" 33...

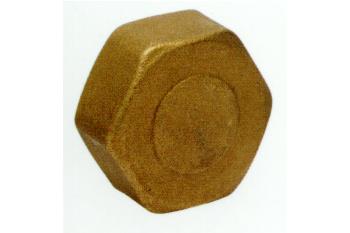

3032 FEMALE CAP
Yellow brass female cap code measure 33303201/4 1/4" 33303203/8 3/8" 33303201/2 1/2" 33303203/4 3/4" 3330321 1" 33303211...

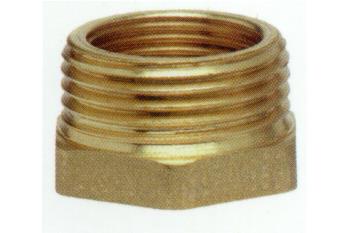

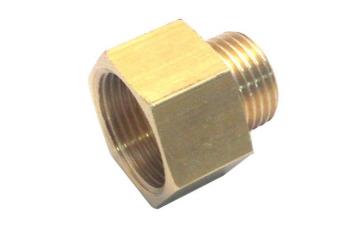

3037 MALE-FEMALE HEX REDUCTION
Yellow brass male-female hex reducer code measure 33303701/8-01/4 1/4"m - 1/8"f 33303701/8-03/8 3/8"m - 1/8"f 33303701/8...

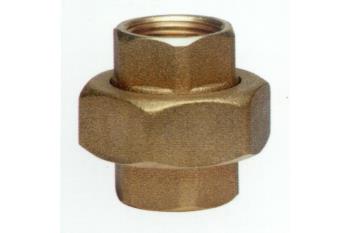

3063 THREE-PIECE UNION
Three-piece female-female union in yellow brass code measure 33306301/2 1/2" 33306303/4 3/4" 3330631 1" 33306311/4 1"1/4...

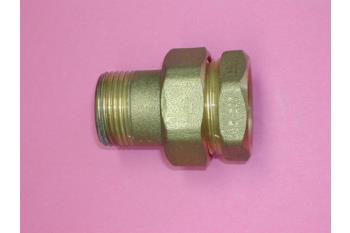

3064 MALE-FEMALE UNION
Three-piece straight male-female union, o-ring seal, yellow sandblasted brass code measure 33306403/8 3/8" 33306301/2 1/...

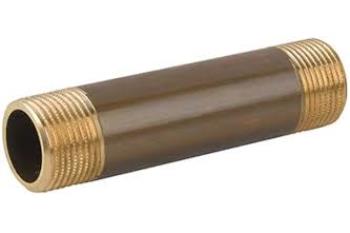

YELLOW BRASS MALE BARREL
Code thread x length packaging 33306901/2x040 1/2"x40 15 33306901/2x050 1/2"x50 15 33306901/2x060 1/2"x60...
