EN14423 SAFETY SHELL
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › STEAM FITTINGS EN14423
Download sheet in pdf format

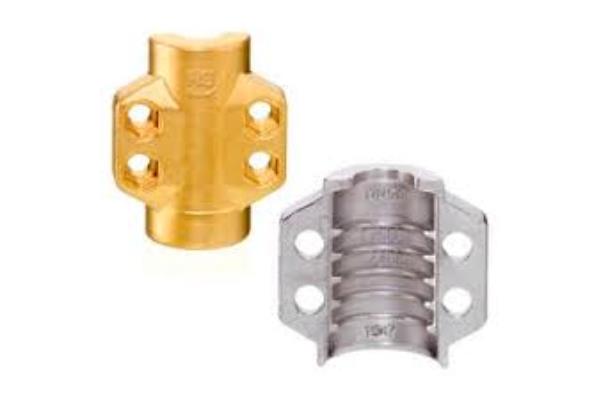

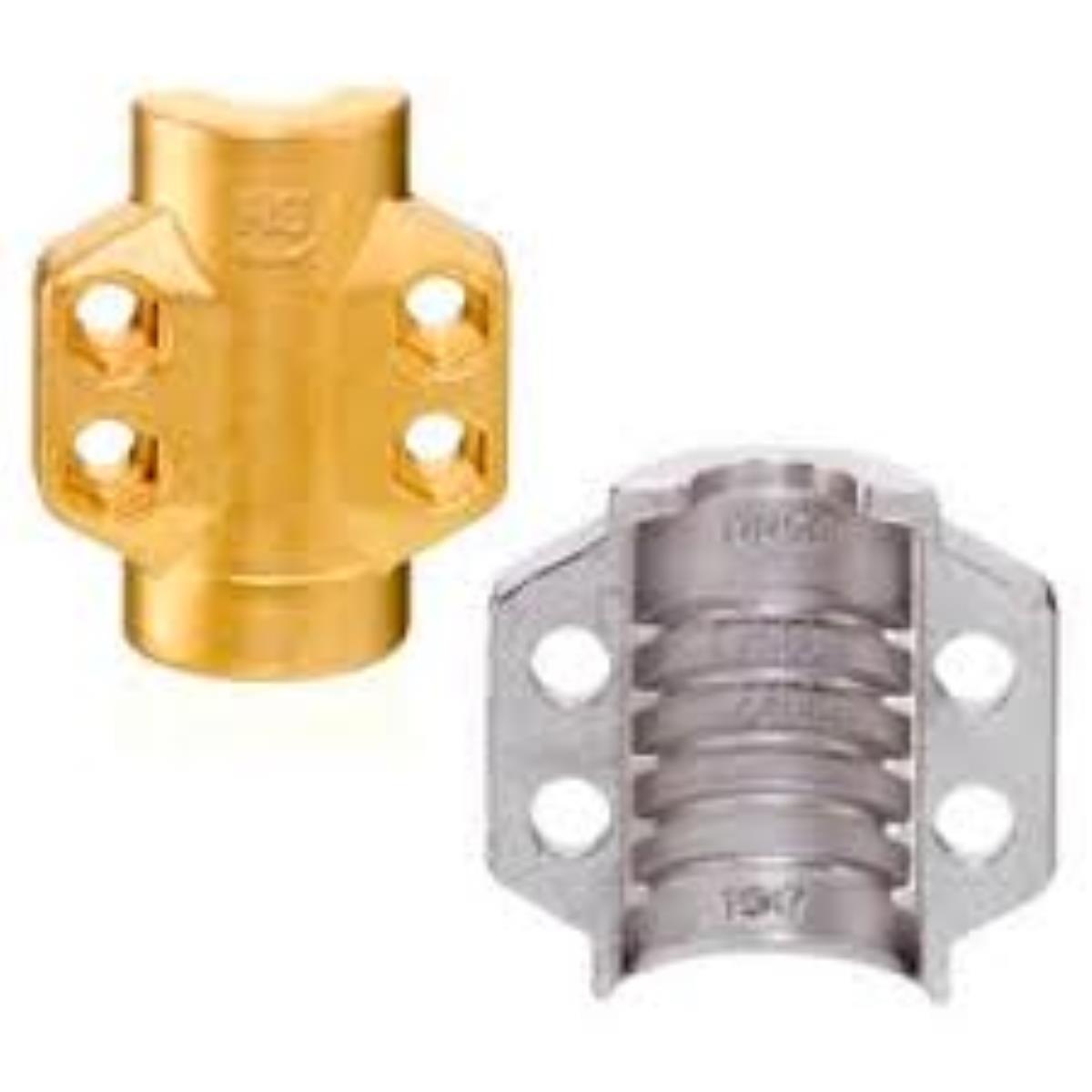

Safety SHELLS compliant with EN14423 for the maximum safety connection of metal braided rubber steam hoses. Stainless steel fixing screws.
Maximum working pressure 18 bar.
Up to 210°C of saturated steam.
Up to 120°C of hot water.
AVAILABLE MATERIALS:
EXTERNAL DIMENSIONAL RANGE OF THE PIPE:
Maximum working pressure 18 bar.
Up to 210°C of saturated steam.
Up to 120°C of hot water.
AVAILABLE MATERIALS:
- AISI304 stainless steel
- Brass
EXTERNAL DIMENSIONAL RANGE OF THE PIPE:
- 13 x 24-26 M 6x20 screws
- 19 x 32-34 screws M 8x25
- 25 x 39-41 screws M 8x25
- 32 x 47-50 screws M 8x25
- 38 x 53-56 M10x40 screws
- 51 x 67-69 M10x40 screws
