STORZ STAINLESS STEEL HOSE FITTING
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › SYMMETRICAL TWISTED FITTINGS › STORZ STAINLESS STEEL FITTINGS
Download sheet in pdf format

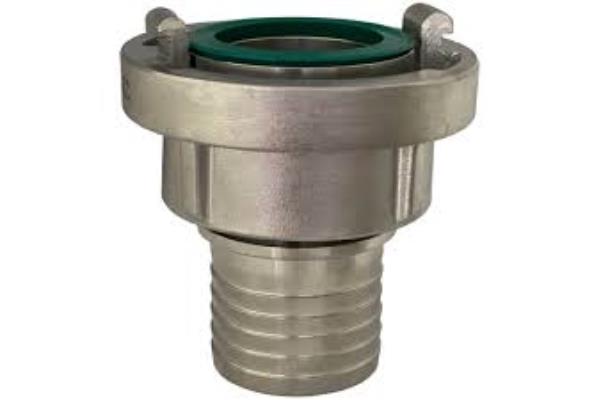

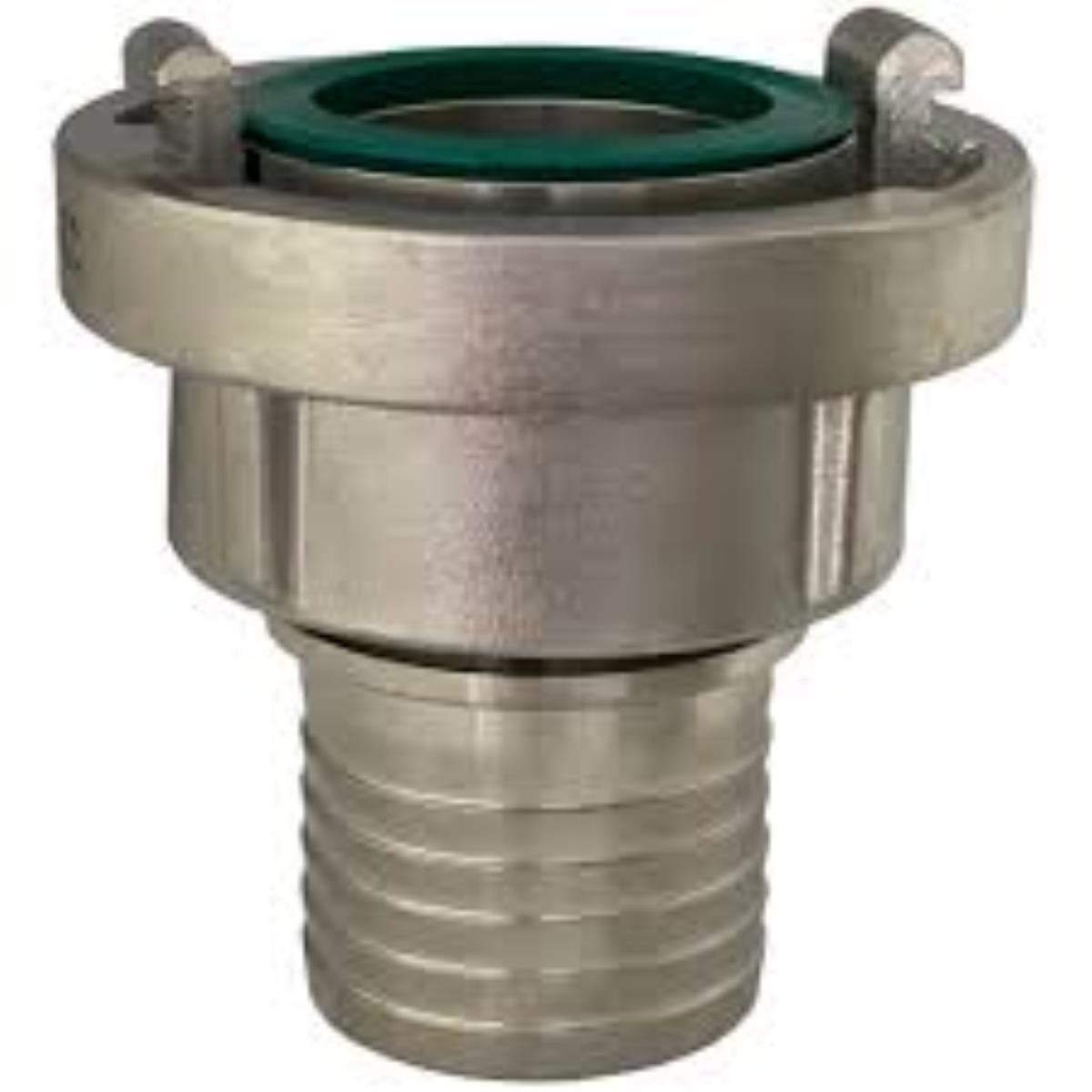

STORZ CONNECTOR HOSE IN AISI 316 STAINLESS STEEL WITH UNDERHEAD RING FOR CONNECTION WITH PRESSED BUSHINGS
Main application:
fire-fighting systems, transfer of granular powders, cement, petrol, chemicals compatible with stainless steel.
Operating pressure: 16 bar
Material: AISI 316 STAINLESS STEEL
Standard gaskets in green FKM, on request in transparent FDA silicone
KA = DISTANCE OF INTERNAL CLOSING FINS (mm)
Main application:
fire-fighting systems, transfer of granular powders, cement, petrol, chemicals compatible with stainless steel.
Operating pressure: 16 bar
Material: AISI 316 STAINLESS STEEL
Standard gaskets in green FKM, on request in transparent FDA silicone
KA = DISTANCE OF INTERNAL CLOSING FINS (mm)
| size/KA mm | rubber holder mm |
|---|---|
| DN52(C) / KA66 | 52 |
| DN75(B) / KA89 | 75 |
| DN110 / KA133 | 100 |
