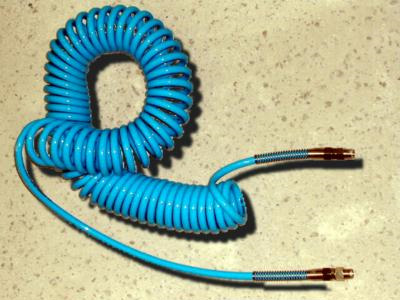

EXTENSIBLE CONNECTED SPIRAL POLYURETHANE SPIRAL
ONLINE CATALOGUE › FITTINGS FOR COMPRESSED AIR › COMPONENTS FOR INDUSTRIAL COMPRESSED AIR PLANTS › HOSES FOR COMPRESSED AIR SYSTEMS
Download sheet in pdf format
Etere-based extensible spiral polyurethane hose EXTRAFLEX S90 with a wide range of colors and single and multiple sizes. We recommend using it with fitting fittings.
Also available with pre-assembled brass fittings with reinforcement spring, gas swivel male thread.
Material hardness 45 shoreD
Operating temperature -40° +60°C
Ideal for compressed air, water and paint dust.
Color available: light blue
Also available with pre-assembled brass fittings with reinforcement spring, gas swivel male thread.
Material hardness 45 shoreD
Operating temperature -40° +60°C
Ideal for compressed air, water and paint dust.
Color available: light blue
| Dimensions mm | Length nominal m | TO rest mm | Usage useful m | length tangs mm | Spiral int-est mm |
|---|---|---|---|---|---|
| 2.5x4 | 3.0 | 300 | 2 | 100-100 | 10/18 |
| 2.5x4 | 4.0 | 210 | 3 | 100-100 | 20/28 |
| 4x6 | 2.0 | 140 | 3 | 100-100 | 20/32 |
| 4x6 | 4.0 | 325 | 3 | 100-100 | 20/32 |
| 5.5x8 | 2.5 | 190 | 2 | 120-500 | 25/41 |
| 5.5x8 | 5.0 | 410 | 4 | 120-500 | 25/41 |
| 5.5x8 | 7.5 | 660 | 6 | 120-500 | 25/41 |
| 5.5x8 | 10.0 | 800 | 8 | 120-500 | 25/41 |
| 5.5x8 | 12.5 | 1030 | 10 | 120-500 | 25/41 |
| 6.5x10 | 2.5 | 140 | 2 | 120-500 | 40/60 |
| 6.5x10 | 5.0 | 330 | 4 | 120-500 | 40/60 |
| 6.5x10 | 7.5 | 500 | 6 | 120-500 | 40/60 |
| 6.5x10 | 10.0 | 680 | 8 | 120-500 | 40/60 |
| 6.5x10 | 12.5 | 800 | 10 | 120-500 | 40/60 |
| 8x12 | 2.5 | 115 | 2 | 120-500 | 50/74 |
| 8x12 | 5.0 | 305 | 3 | 120-500 | 50/74 |
| 8x12 | 7.5 | 430 | 6 | 120-500 | 50/74 |
| 8x12 | 10.0 | 600 | 8 | 120-500 | 50/74 |
| 8x12 | 12.5 | 800 | 10 | 120-500 | 50/74 |
| 8x12 | 15.0 | 930 | 13 | 120-120 | 50/74 |
