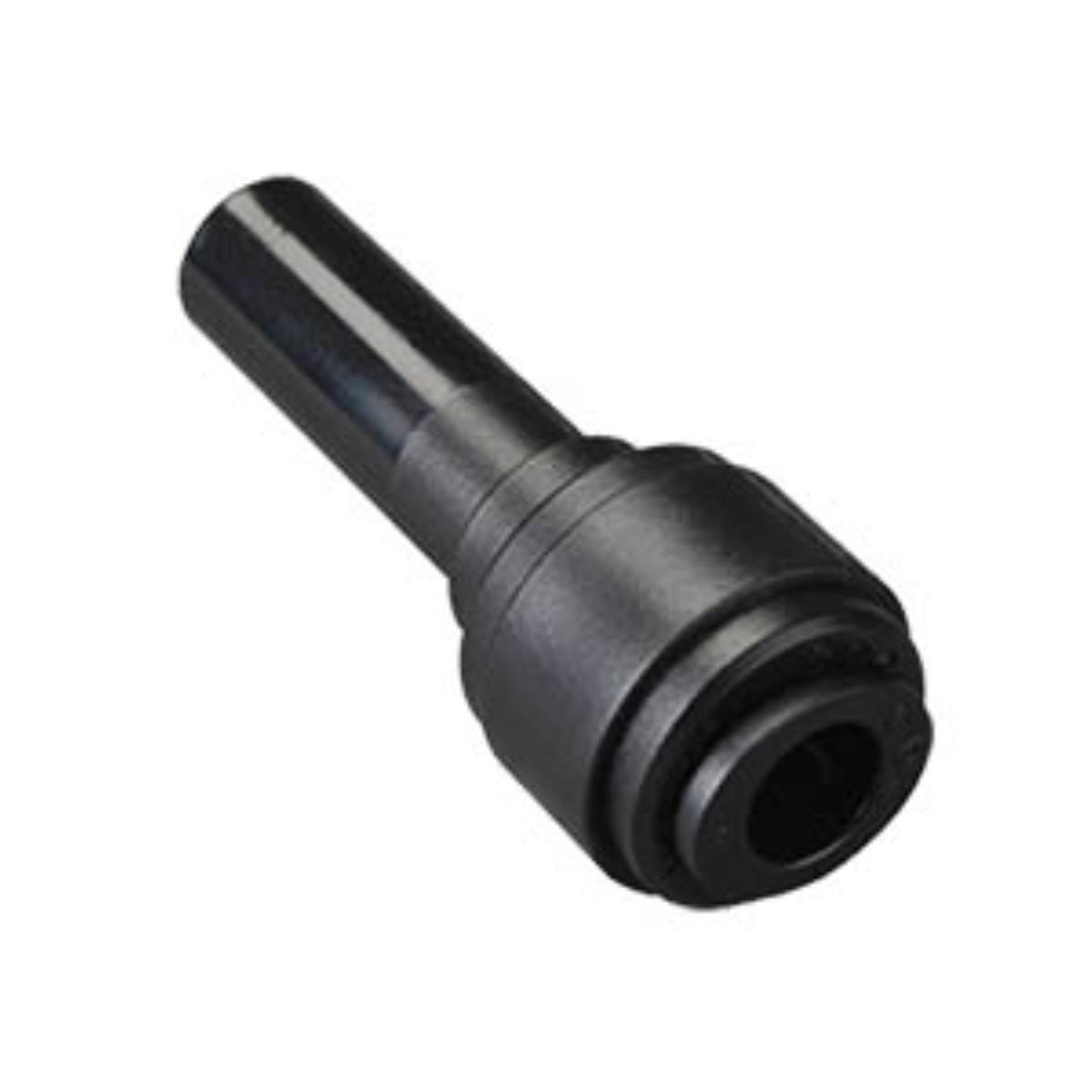

art.724 SHANK REDUCTION
ONLINE CATALOGUE › FITTINGS FOR COMPRESSED AIR › FITTINGS AND CONNECTIONS FOR PNEUMATIC SYSTEMS › 700 Series POM QUICK FITTINGS
Download sheet in pdf format
Code: 724

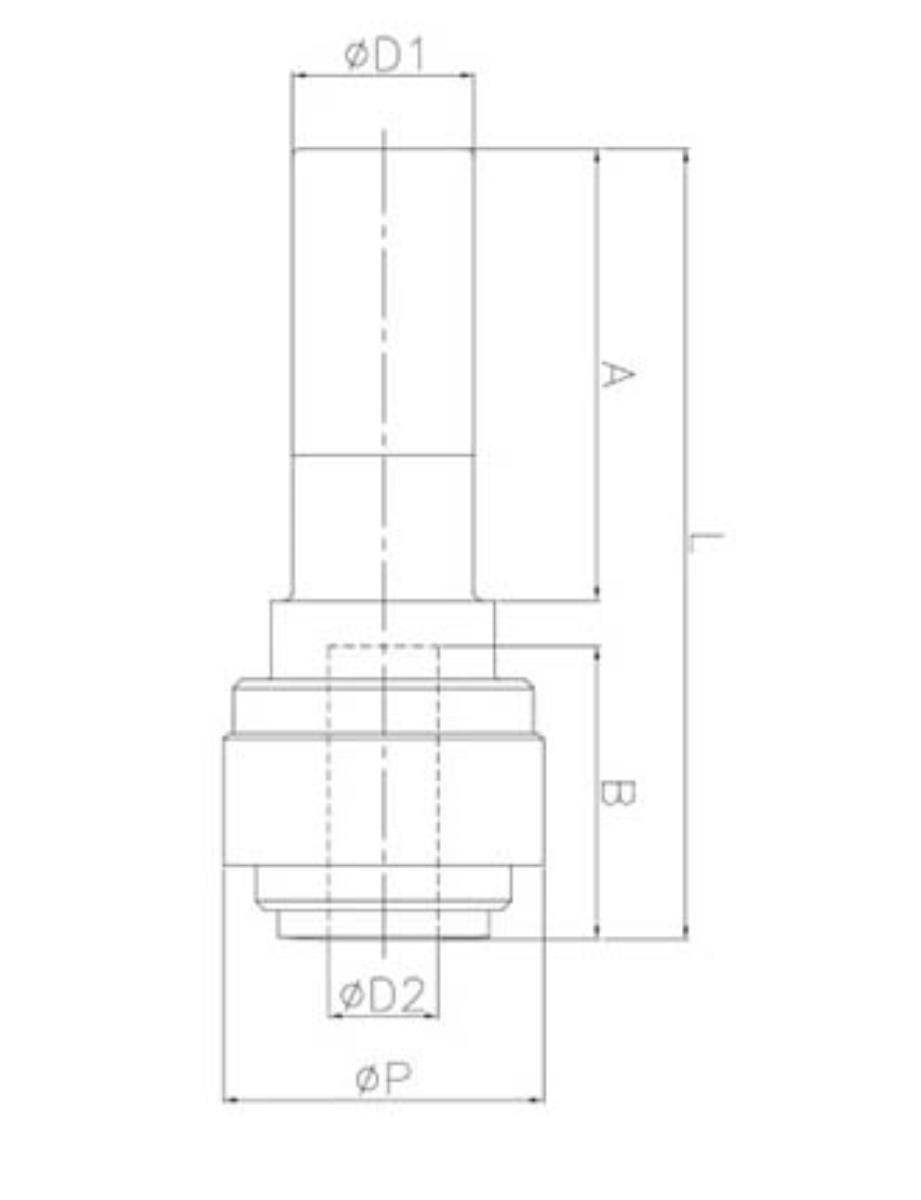

| ØD1 | ØD2 | ØP | TO | b | L | WEIGHT | CONF. |
|---|---|---|---|---|---|---|---|
| 6 | 4 | 13.2 | 21.0 | 14.7 | 36.7 | 2.4 | 100 |
| 8 | 6 | 15.5 | 22.5 | 16.1 | 40.6 | 3.5 | 100 |
| 10 | 6 | 17.6 | 24.8 | 16.1 | 43.4 | 5.2 | 50 |
| 10 | 8 | 17.6 | 24.8 | 17.5 | 43.8 | 5.1 | 50 |
| 8 | 4 | 15.5 | 22.5 | 14.7 | 40.4 | 3.7 | 100 |
| 8 | 10 | 20.0 | 22.5 | 20.1 | 44.9 | 5.4 | 50 |
| 12 | 8 | 20.0 | 29.5 | 17.5 | 51.3 | 7.3 | 50 |
| 12 | 10 | 20.0 | 29.5 | 20.1 | 51.6 | 6.9 | 50 |
| 15 | 10 | 20.0 | 35.0 | 20.1 | 61.0 | 12.0 | 25 |
| 15 | 12 | 23.6 | 35.0 | 24.7 | 61.7 | 11.3 | 25 |
