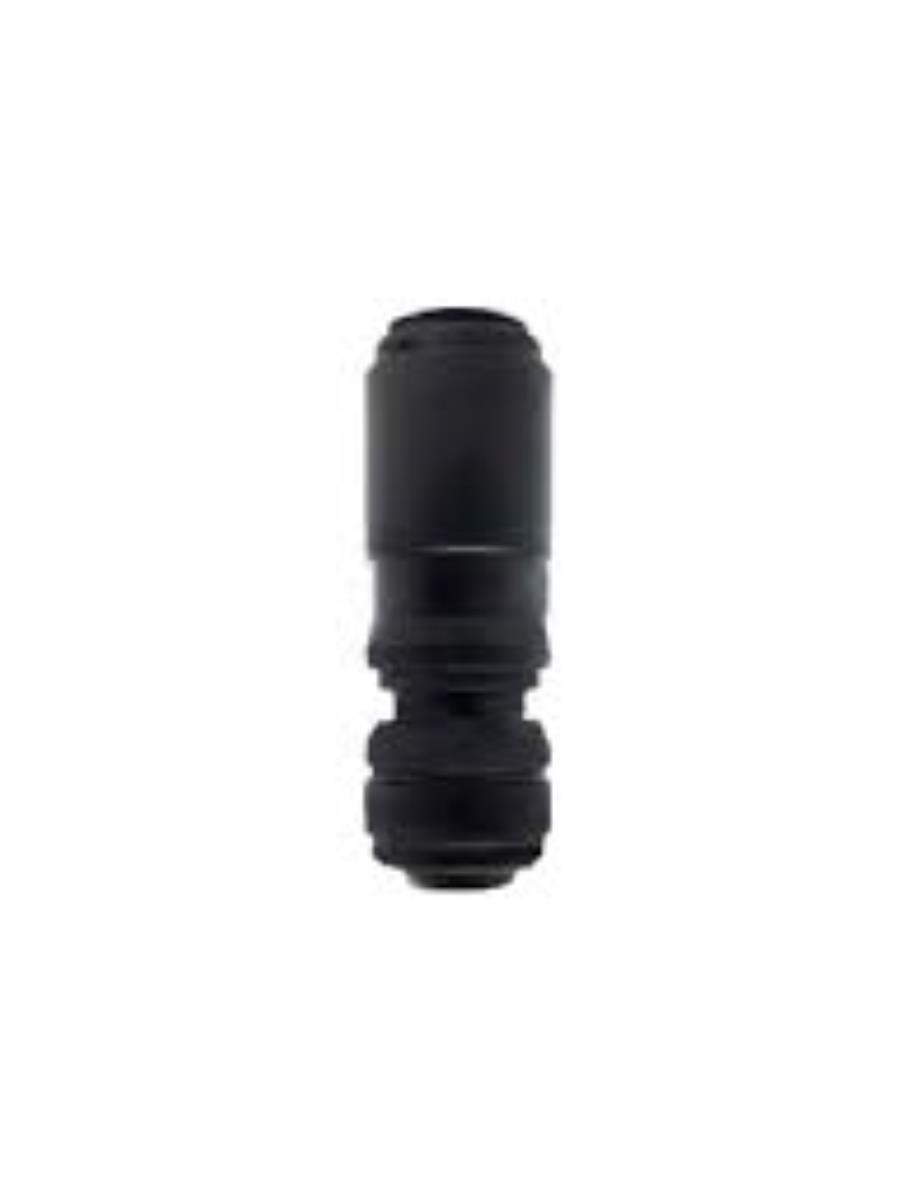

This valve allows the flow of fluid in one direction and blocks the flow in the opposite direction.
Opening pressure 0.02 Bar. Compact and convenient size for use in a small space.
Quick installation and simple maintenance.
The maximum use temperature is 65°C for continuous use and 90°C for a maximum use of 5 minutes.
VALVE COMPOSITION MATERIALS:
Body, collar, guide are in POM.
AISI301 stainless steel pliers
EPDM gasket suitable for food contact
available certifications :
WORKING PRESSURE AND TEMPERATURE RATIO
OR
mm | -20°C | 1°C | 25°C | 70°C | 98°C |
| 4 | 0-8 Bar
only with
dry air | 20 bars | 20 bars | 16 bars | 10 bars |
| 6 | 20 bars | 20 bars | 16 bars | 10 bars |
| 8 | 20 bars | 20 bars | 16 bars | 10 bars |
| 10 | 16 bars | 16 bars | 14 bars | 10 bars |
| 12 | 14 bars | 14 bars | 10 bars | 8 bars |
