800 series quick couplings in nickel plated brass

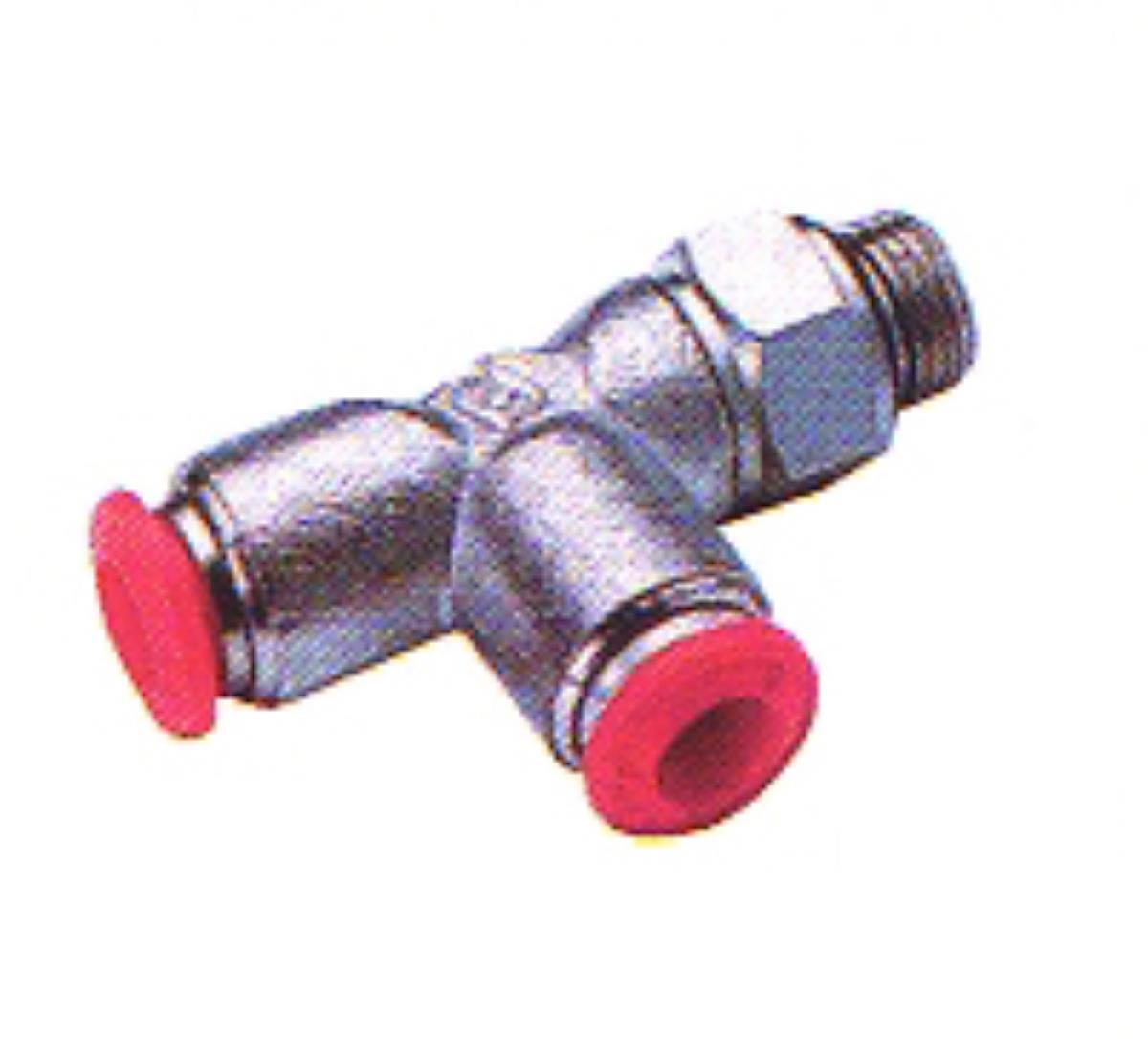

Cylindrical lateral male tee fitting

Cylindrical lateral male tee fitting
Download sheet in pdf format

Description and technical data



Code
item		 Measure
32R81303-M5 3 - 5M
32R81304-M5 4 - 5M
32R81304-1/8 4 - 1/8
32R81305-M5 5 - 5M
32R81305-1/8 5 - 1/8
32R81306-M5 6 - 5M
32R81306-1/8 6 - 1/8
32R81306-1/4 6 - 1/4
32R81308-1/8 8 - 1/8
32R81308-1/4 8 - 1/4
32R81308-3/8 8 - 3/8
32R81308-1/2 8 - 1/2
32R81310-1/4 10 - 1/4
32R81310-3/8 10 - 3/8
32R81310-1/2 10 - 1/2
32R81312-3/8 12 - 3/8
32R81312-1/2 12 - 1/2
32R813-12M1 6 - 12Mx1
32R813-12M1.25 6 - 12Mx1.25
32R813-12M1.5 6 - 12Mx1.5
