800 series quick couplings in nickel plated brass

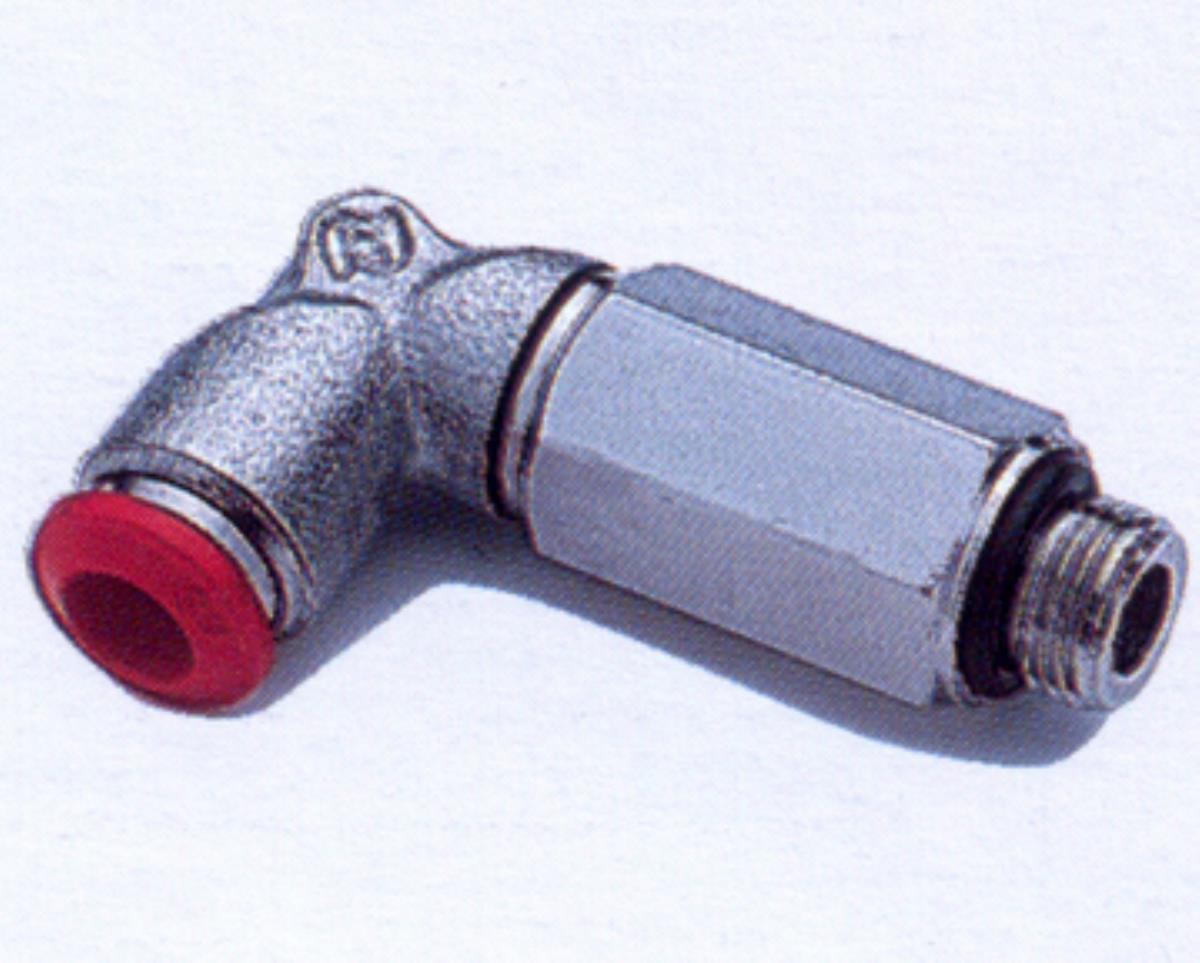

Extended cylindrical male adjustable L-fitting

Extended cylindrical male adjustable L-fitting
Download sheet in pdf format

Description and technical data


Code Measure
32R83504-1/8 4 - 1/8
32R83504-1/4 4 - 1/4
32R83505-1/8 5 - 1/8
32R83506-1/8 6 - 1/8
32R83506-1/4 6 - 1/4
32R83504-1/8 4-1/8
32R83504-1/4 4-1/4
32R83505-1/8 5-1/8
32R83506-1/8 6-1/8
32R83506-1/4 6-1/4
32R83508-1/8 8-1/8
32R83508-1/4 8-1/4
32R83508-3/8 8-3/8
32R83510-1/4 10-1/4
32R83510-3/8 10-3/8
