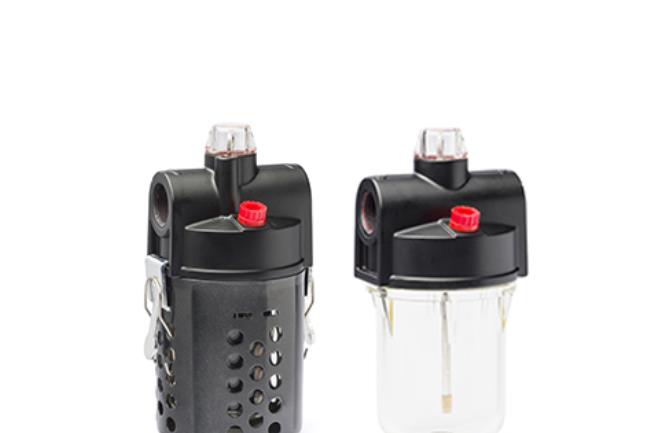

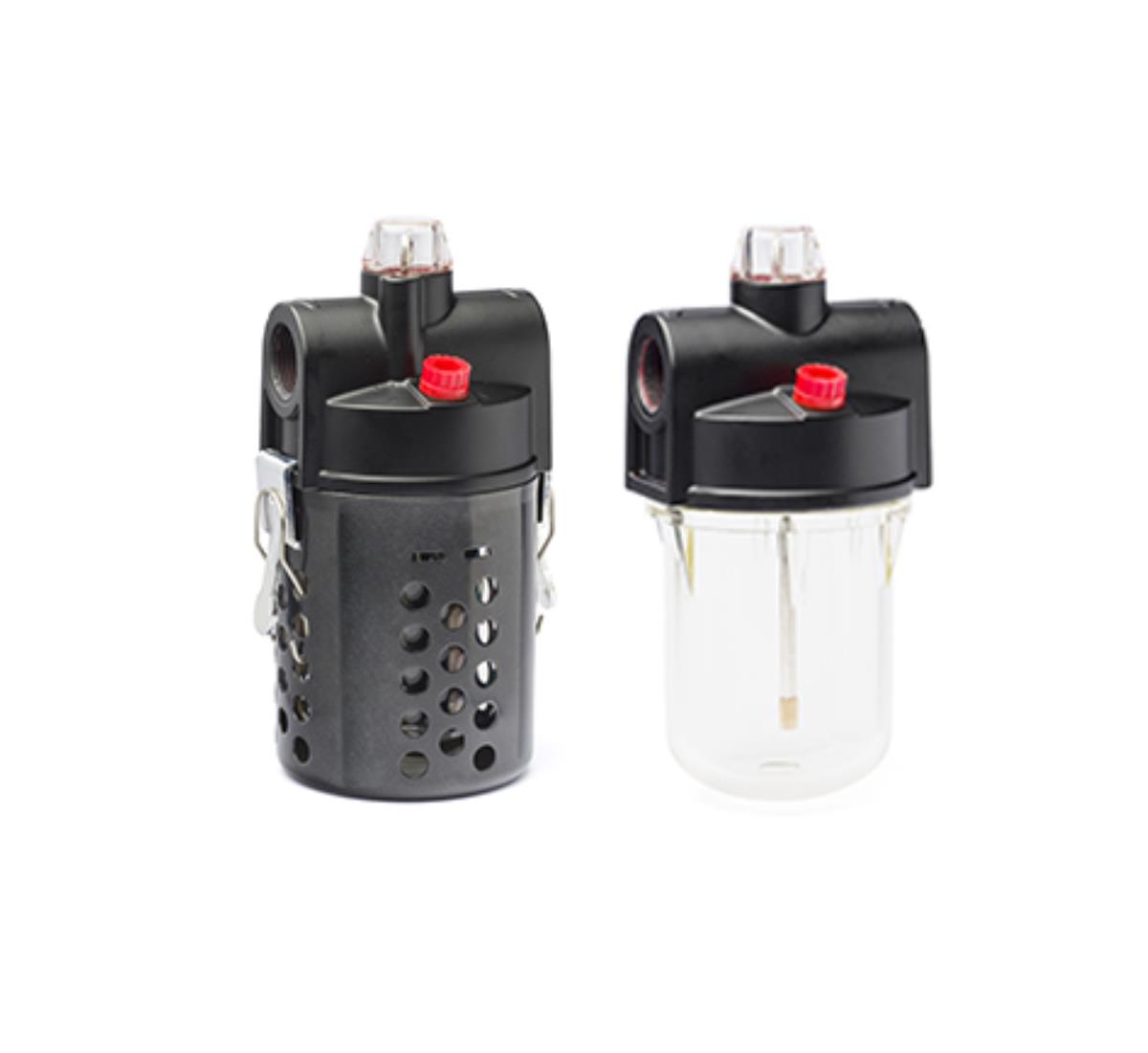

M310 Lubricator with technopolymer glass

The operation of this mist lubricator is based on the entrainment of the oil, caused by a pressure difference produced in a duct, equipped with a restriction and crossed by air. The adjustment of the quantity of lubricant mixed with air is accurate as it occurs through a micrometric screw.

The lubricating oil is introduced into the lubricator through the two red technopolymer caps, therefore without having to dismantle the glass.

Connections:

• 1” BSP Threads on body
• 3/4” BSP With reduction

General characteristics

• Powder coated metal body.
• Technopolymer glass with a capacity of 400 cm ³
• Glass protection in metal painted with epoxy powders ( M/310-P series ).
• Transparent technopolymer oil sight glass with 360° view
• Micrometric adjustment of oil flow.
• Valve that guarantees lubrication even at low flow rates.
• Brass suction tube with filter
