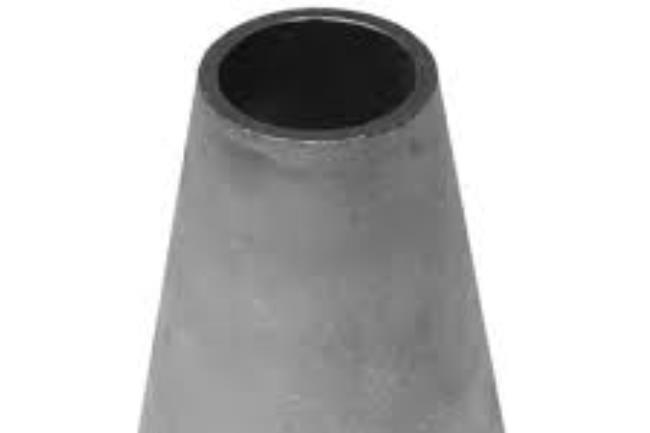

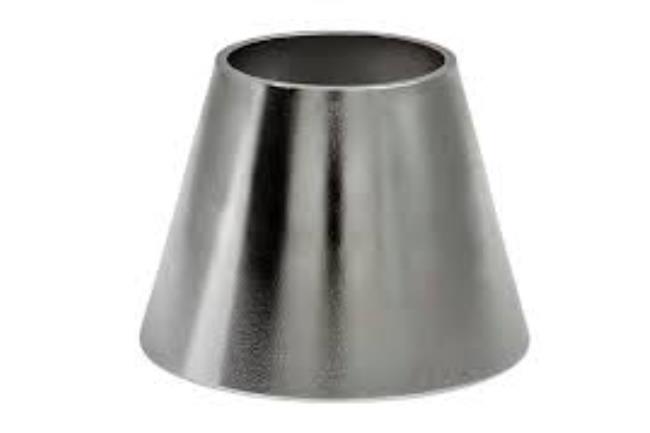

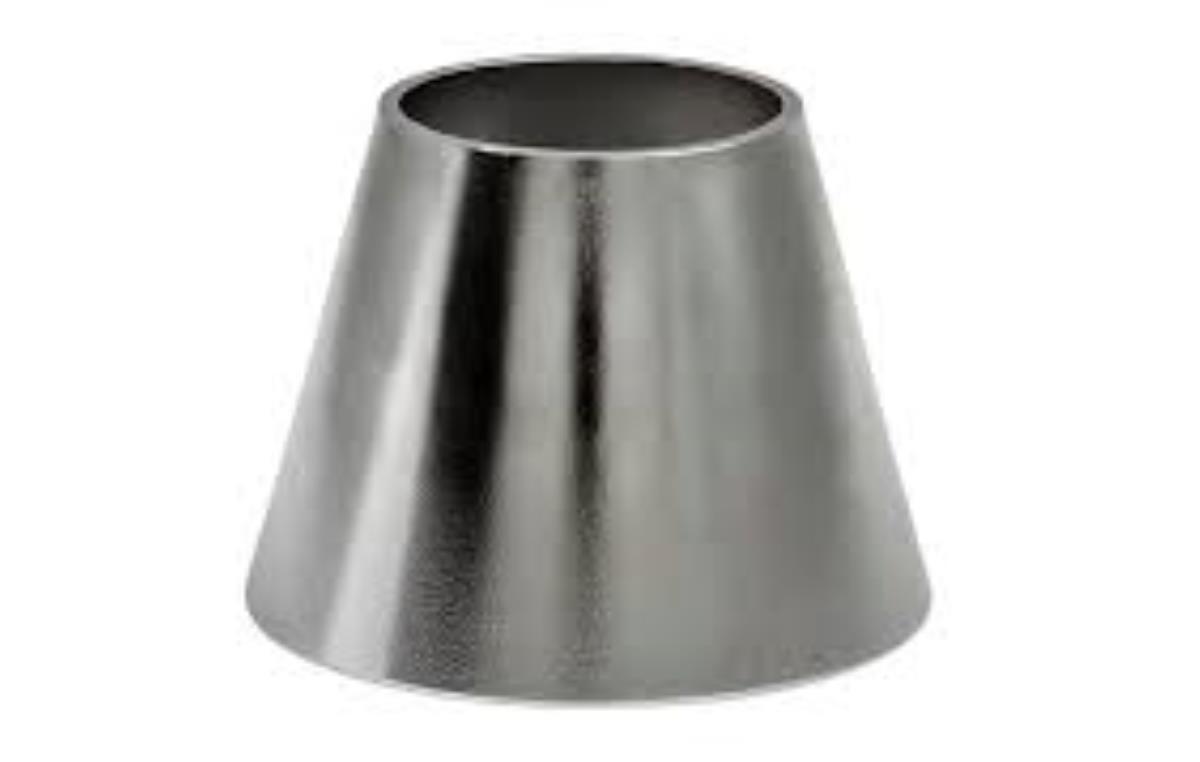

ISO STAINLESS STEEL CONCENTRIC REDUCTION
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › BENDS - FLANGES - CONICAL REDUCERS
Download sheet in pdf format

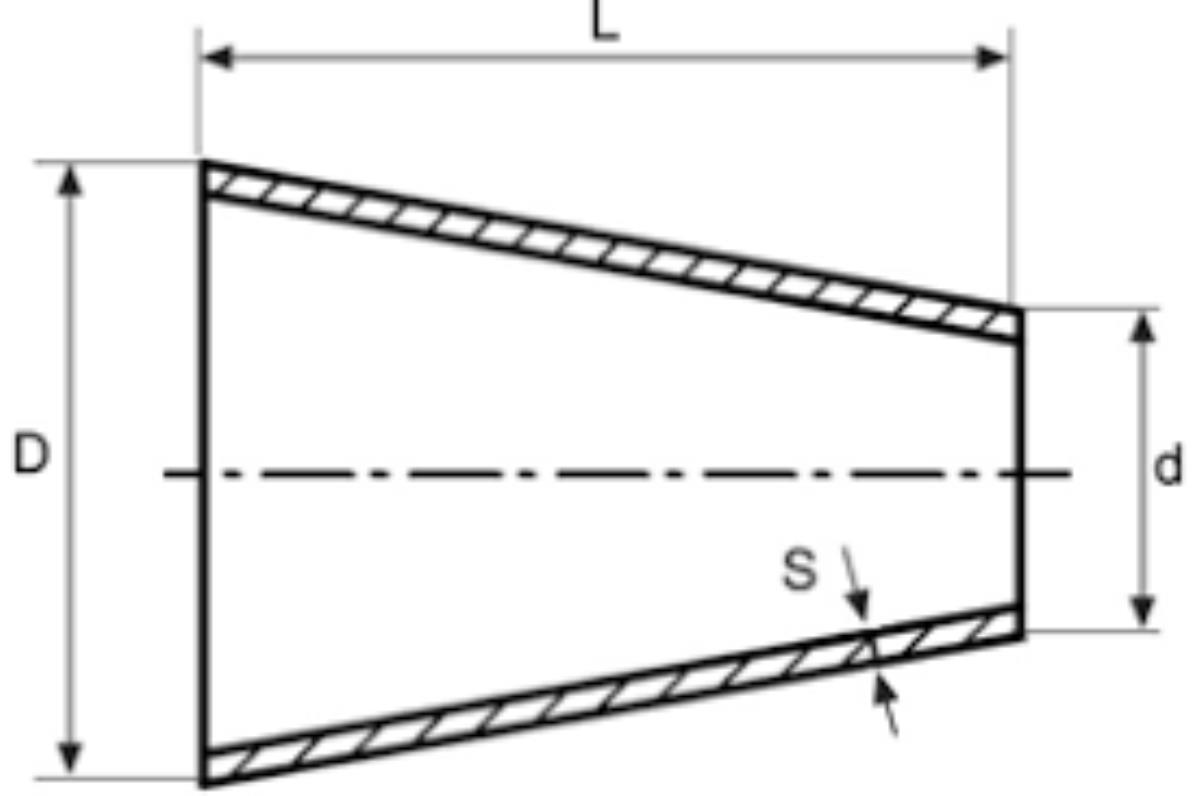

| d | d | L |
| mm | mm | mm |
| 21.3 | 17.2 | 38 |
| 26.9 | 17.2 - 21.3 | 38 |
| 33.7 | 17.2 - 21.3 - 26.9 | 51 |
| 42.4 | 21.3 - 26.9 - 33.7 | 51 |
| 48.3 | 21.3 - 26.9 - 33.7 - 42.4 | 64 |
| 60.3 | 21.3 - 26.9 - 33.7 - 42.4 - 48.3 | 76 |
| 76.1 | 26.9 | 108 |
| 76.1 | 33.7 - 42.4 - 48.3 - 60.3 | 89 |
| 88.9 | 33.7 - 42.4 - 48.3 - 60.3 - 76.1 | 89 |
| 101.6 | 42.4 - 48.3 - 60.3 - 76.1 - 88.9 | 84 |
| 114.3 | 33.7 - 42.4 - 48.3 - 60.3 - 76.1 -88.9 | 102 |
| 139.7 | 60.3 - 76.1 - 88.9 - 101.6 - 114.3 | 127 |
| 168.3 | 60.3 - 76.1 - 88.9 - 101.6 - 114.3 | 145 |
| 219.1 | 88.9 - 114.3 - 139.7 - 168.3 | 151 |
| 273 | 139.7 - 168.3 - 219.1 | 178 |
| 323 | 139.7 - 168.3 - 219.1 - 273 | 203 |
THICKNESS OF 2 AND 3 mm
DIFFERENT MEASURES or METRICS ON REQUEST
