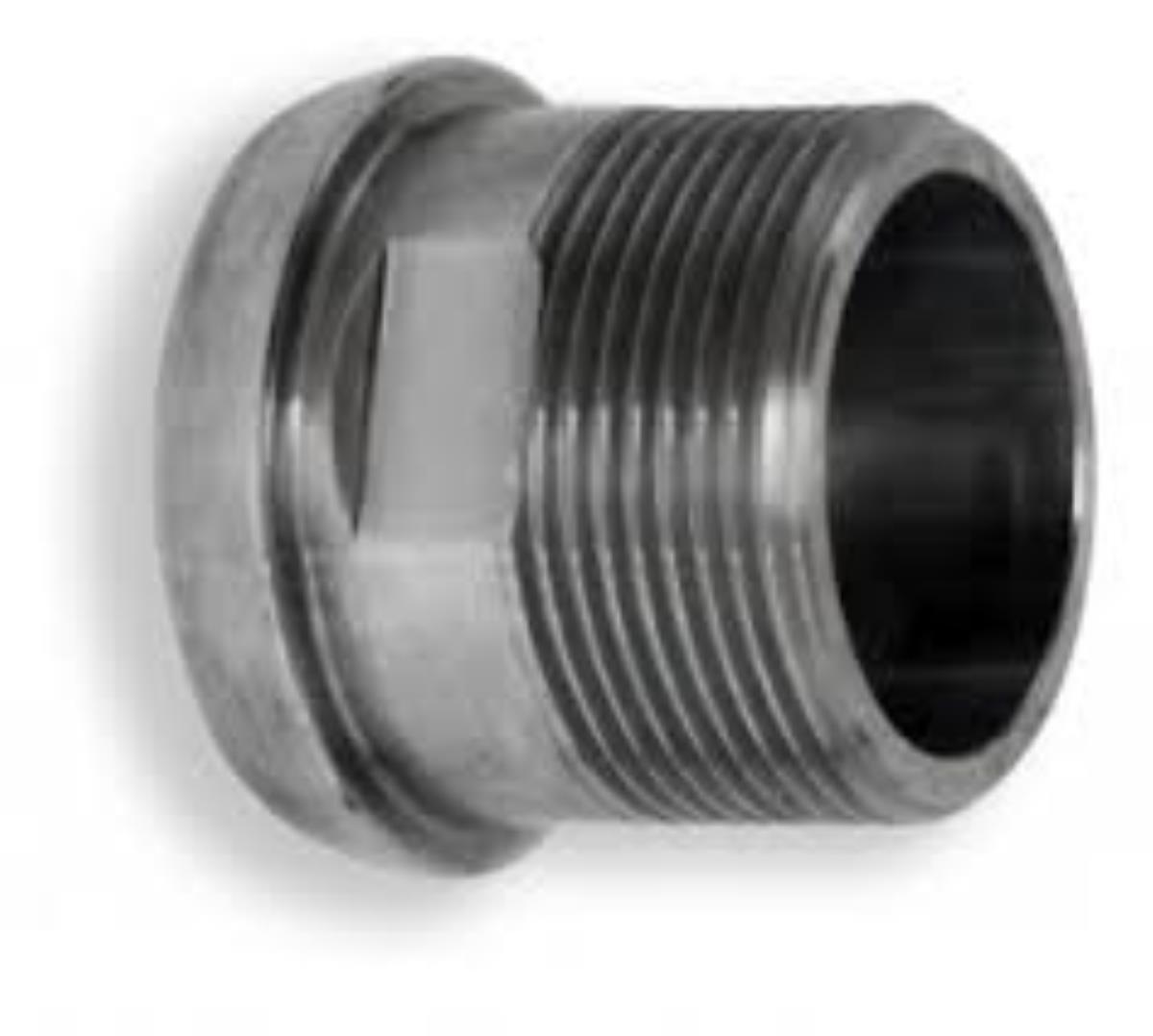

MALE THREADED UNION DIN 11851
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › DIN 11851 STANDARD STAINLESS STEEL FITTINGS
Download sheet in pdf format
FEMALE AISI 316 STAINLESS STEEL UNION
MALE THREADED TO BE MOUNTED WITH FEMALE SWIVEL
ACCORDING TO DIN 11851 STANDARD
MALE THREADED TO BE MOUNTED WITH FEMALE SWIVEL
ACCORDING TO DIN 11851 STANDARD
| DIMENSION | BSP MALE THREAD |
| DN15 | 1/2" |
| DN20 | 3/4" |
| DN25 | 1" |
| DN32 | 1"1/4 |
| DN40 | 1"1/2 |
| DN50 | 2" |
| DN65 | 2"1/2 |
| DN80 | 3" |
| DN100 | 4" |
