MALE WELDING UNION DIN 11851
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS DIN 11851
Download sheet in pdf format

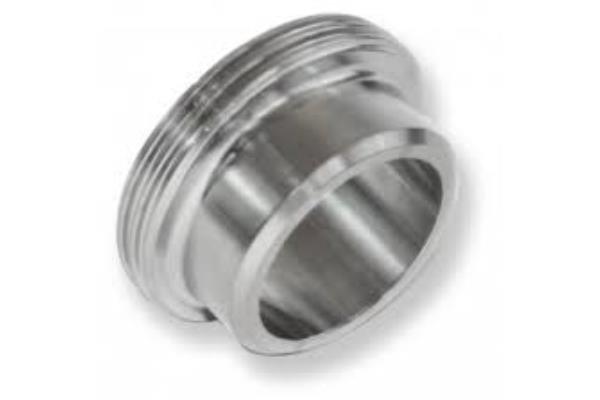

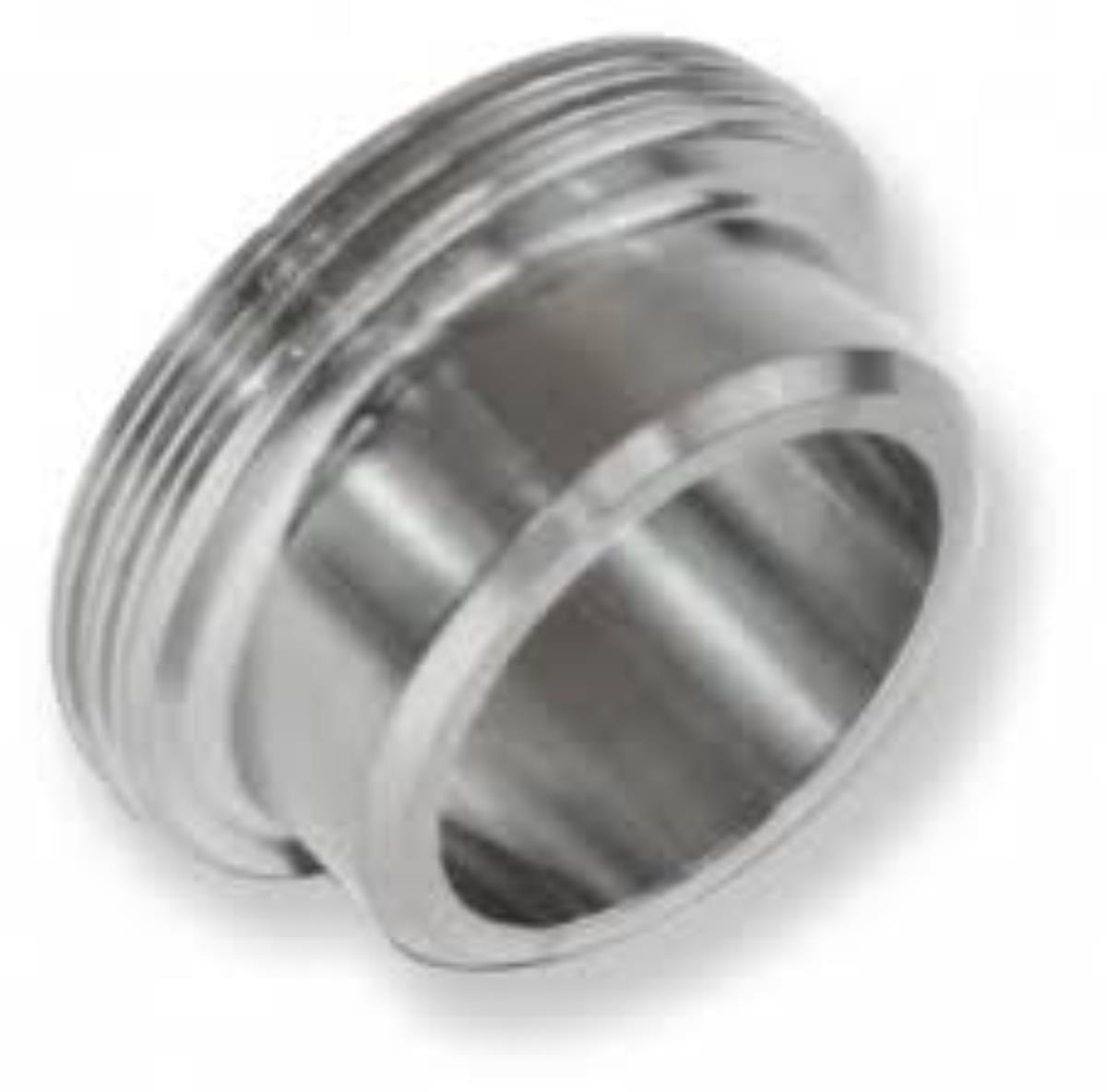

AISI 316 MALE STAINLESS STEEL UNION TO WELD IN ACCORDANCE WITH DIN 11851 STANDARD
MAXIMUM WORKING PRESSURE 40 BAR.
MAXIMUM WORKING PRESSURE 40 BAR.
| DIMENSION | DIAMETER TANG SUBTLE mm | DIAMETER INCREASED TANG mm |
| DN10 | 10x12 | 10X18 |
| DN15 | 16x18 | 16x24 |
| DN20 | 20x22 | 20x30 |
| DN25 | 25x28 | 25x35 |
| DN32 | 31x34 | 31x41 |
| DN40 | 37x40 | 37x48 |
| DN50 | 49x52 | 49x61 |
| DN65 | 66x70 | 66x79 |
| DN80 | 81x85 | 81x93 |
| DN100 | 97x104 | 97.6x114 |
| DN104 | 100x104 | 100x114 |
| DN125 | 125x137 | |
| DN150 | 150x163 |
