WELDING UNION FOR SWIVEL DIN 11851
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS DIN 11851
Download sheet in pdf format

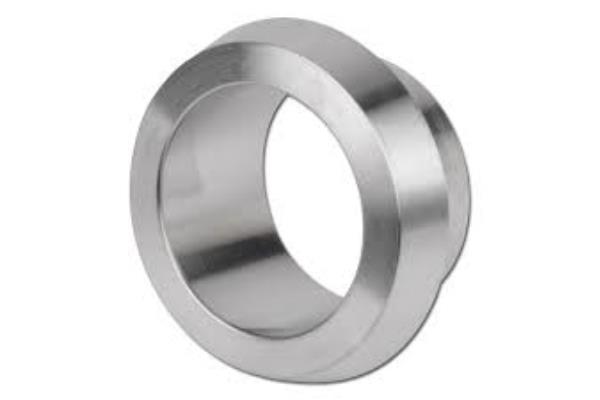

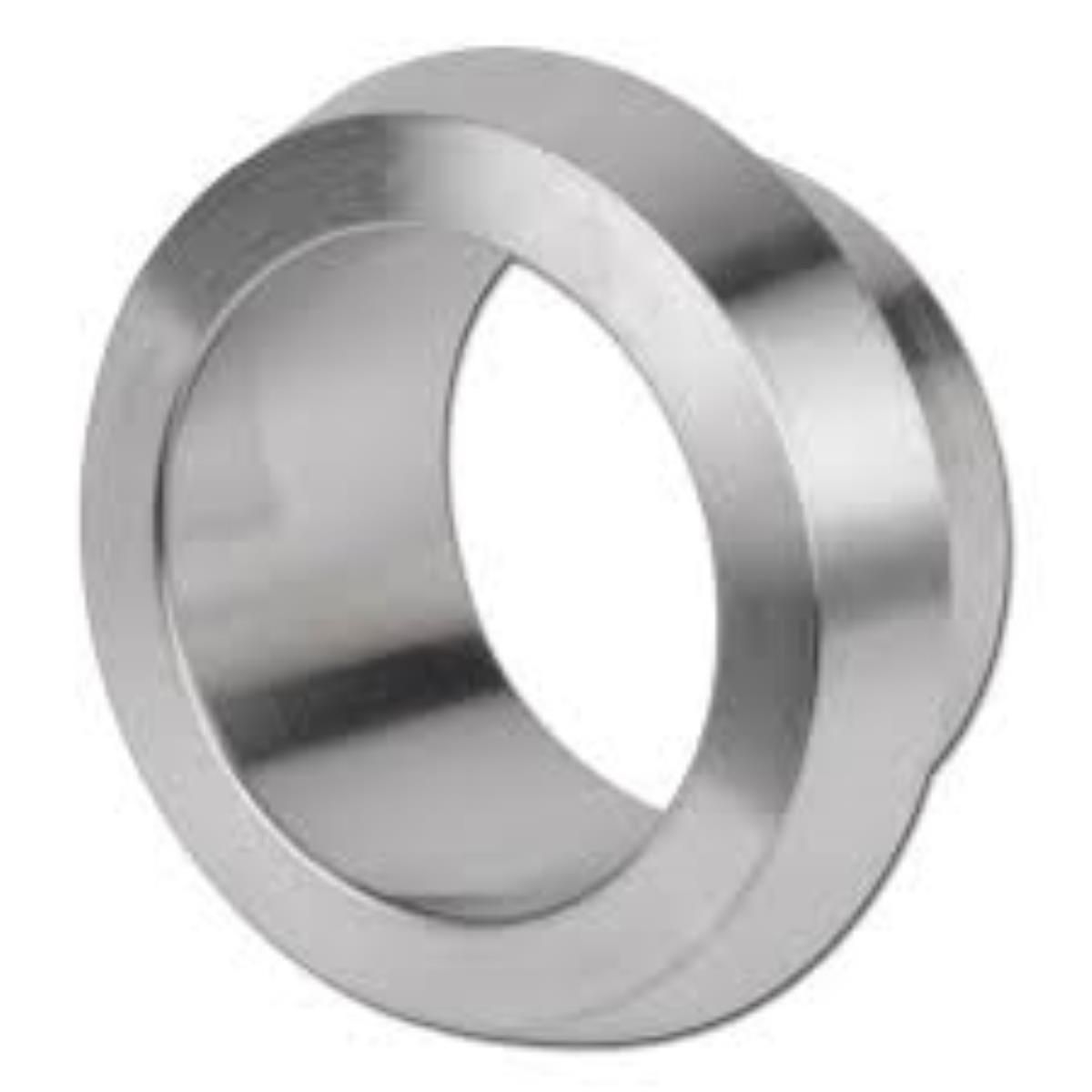

WELDING UNION IN AISI 316 STAINLESS STEEL TO BE MOUNTED WITH FEMALE SWIVEL ACCORDING TO DIN 11851 STANDARD
MAXIMUM WORKING PRESSURE 40 BAR.
MAXIMUM WORKING PRESSURE 40 BAR.
| DIMENSION | DIAMETER TANG SUBTLE mm | DIAMETER INCREASED TANG mm |
| DN10 | 10X18 | |
| DN15 | 16x24 | |
| DN20 | 20x24 | 20x30 |
| DN25 | 26x29 | 25x35 |
| DN32 | 32x35 | 31x41 |
| DN40 | 38x41 | 37x48 |
| DN50 | 48x50 | 49x61 |
| DN65 | 66x70 | 66x79 |
| DN80 | 81x85 | 81x93 |
| DN100 | 100x104 | 97.6x114 |
| DN104 | 100x114 | |
| DN125 | 125x137 | |
| DN150 | 150x163 |
