POM QUICK CONNECTORS - SERIES 700

Polyoxymethylene ( POM ) is a high-strength, relatively low-cost plastic. Acetal resins (name of the finished product formed from polyoxymethylenes) are particularly suitable for replacing precision metal parts, pipe fittings, and valve parts for hot and cold water. The use of these resins has advantages and disadvantages:

Advantages: When not reinforced, and in particular in the case of homopolymers, they become very rigid plastics, they also have good mechanical resistance and hardness, as well as dimensional stability as they absorb little humidity.
Disadvantages: The most important limitation of use is the easy combustion, with the production of toxic fumes. Unstabilized products are also attacked by UV rays.

These products are designed for water, food fluids and compressed air. They can also be used for vacuum. Other fluids following chemical compatibility.

Standard color black, white on request.

ISO 7 TAPERED THREAD: R1/8" - R1/2"
BSPP CYLINDRICAL THREAD ISO 228: G1/8" - G3/4"
UNF THREAD 7/16" - 20
UNS THREAD 7/16" - 24
NH THREAD 3/4"

Simple movements allow for quick insertion and removal of the tube, saving time and costs. The material is non-toxic and is approved by NSF and ACS.

Operating temperature: -20°C to 98°C (dry air 1°C to 98°C)
**Please note that NSF standards only cover the temperature range of 1°C to 70°C.

System performance always depends on the fittings, hoses and possible other items and accessories used. It is the user's responsibility to cross-check the technical characteristics of the individual components in order to avoid possible leaks and dangers.

Stainless steel AISI301 clamping pliers
EPDM gasket
Operating pressure from - 750 mmHg to 20 Bar.

Depending on the pipes and temperatures used, the type of pipe:
- Plastics: Polyethylene (PE) - Polyamide (PA) Polyurethane (PU) - PTFE - FEP
- Soft metals: Brass - Copper - Soft steel
- Hard metals: Please contact our Technical Department for stainless steel and other rigid material pipes.

Catalogue

Products

art.701 STRAIGHT CYLINDRICAL MALE

art.701 STRAIGHT CYLINDRICAL MALE

Bspp male straight quick coupling in acetal resin dn pipe thread bspp to b øe l h (hex) weight packaging 4 g1/8" 6...

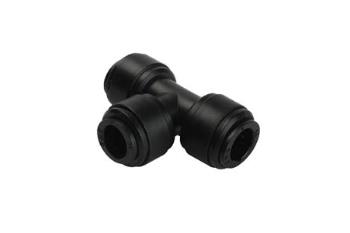

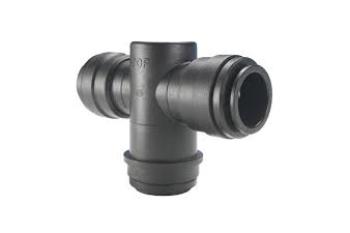

art.702 INTERMEDIATE AT

art.702 INTERMEDIATE AT

Ød1 ød2 ød3 b1 b2 b3 øe h l weight conf. 4 4 4 14.7 14.7 14.7 13.2 24.5 35.8 5.8 100 6 6 6 16.1 16.1 16.1 15.0 27.6 40....

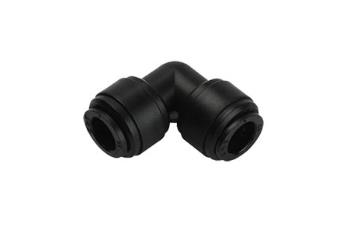

art.703 INTERMEDIATE CORNER

art.703 INTERMEDIATE CORNER

Intermediate elbow ød1 ød2 b1 b2 øe1 øe2 l h weight conf. 4 4 14.7 14.7 13.2 13.2 24.5 24.5 3.9 100 6 6 16.1 16.1 15.0 ...

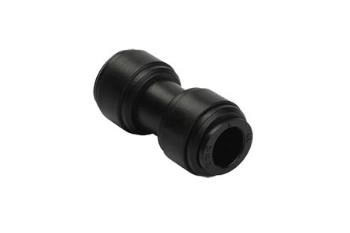

art.704 INTERMEDIATE LAW

art.704 INTERMEDIATE LAW

Quick fittings in acetal resin with straight joint ød1 ød2 b1 b2 øe l weight conf. 4 4 14.7 14.7 13.2 31.8 3.8 100 6 6 ...

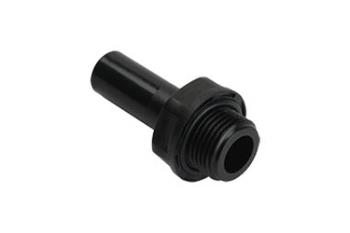

art.705 SMOOTH SHANK TERMINAL-CYLINDRICAL MALE BSPP

art.705 SMOOTH SHANK TERMINAL-CYLINDRICAL ...

Ød t to b øe l h (hex) weight conf. 4 g1/8" 6.0 18.0 16.6 32.5 15 2.7 100 4 g1/4" 8.5 18.0 20.5 35.0 18 4.2 1...

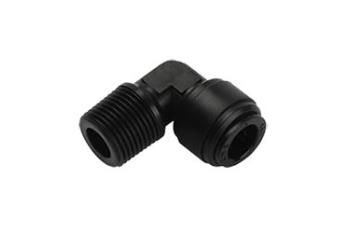

art.706 MALE CONICAL ELBOW BSPT

art.706 MALE CONICAL ELBOW BSPT

Ød t øp to b and l h (hex) weight conf. 6 r1/8" 15.0 9.1 16.1 25.6 25.4 10 4.1 100 6 r1/4" 15.0 13.1 16.1 30....

art.707 STRAIGHT FEMALE JOINT

art.707 STRAIGHT FEMALE JOINT

Pom straight female cylindrical bspp fitting with epdm flat gasket packaging: 10 pieces or tube mm thread bsp length co...

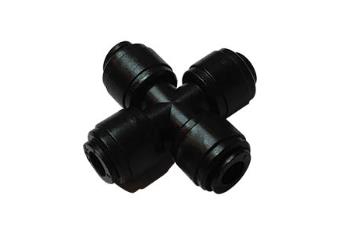

art.708 INTERMEDIATE CROSS IN RESIN

art.708 INTERMEDIATE CROSS IN RESIN

Ød øp l and b weight conf. 6 15.5 43.8 43.8 16.1 9.7 25

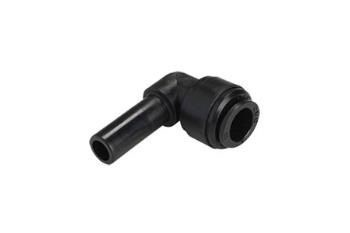

art.722 ELBOW SHANK

art.722 ELBOW SHANK

Ød1 ød2 øp to b and l weight conf. 4 4 13.2 18.0 14.7 30.1 21.9 2.5 100 6 6 15.5 21.0 16.1 34.8 25.1 3.7 100 8 8 17.6 22...

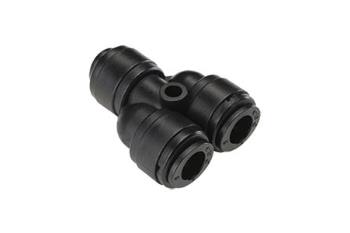

art.723 INTERMEDIATE Y

art.723 INTERMEDIATE Y

Ød1 ød2 b1 b2 øp1 øp2 øc j l weight conf. 4 4 14.7 14.7 13.8 13.8 3.3 13.5 33.7 6.7 100 6 6 16.1 16.1 15.5 15.5 3.3 15.5...

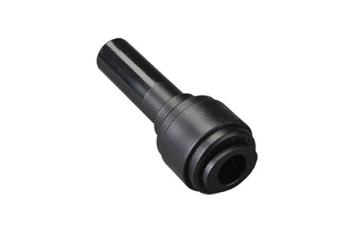

art.724 SHANK REDUCTION

art.724 SHANK REDUCTION

Ød1 ød2 øp to b l weight conf. 6 4 13.2 21.0 14.7 36.7 2.4 100 8 6 15.5 22.5 16.1 40.6 3.5 100 10 6 17.6 24.8 16.1 43.4...

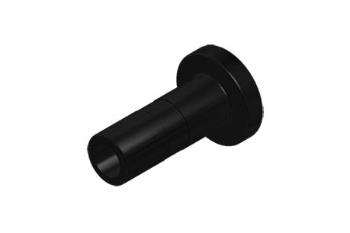

art.725 CAP

art.725 CAP

Ød øp l to weight conf. 4 13 22.5 19.0 0.8 200 6 13 24.5 21.0 1.1 200 8 16 26.5 23.0 1.8 100 10 18 30.0 26.0 2.7 100 12...

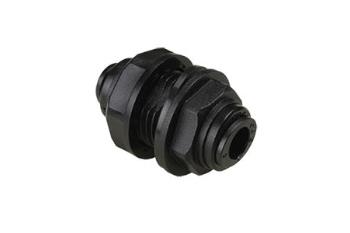

art.726 INTERMEDIATE BULKHEAD

art.726 INTERMEDIATE BULKHEAD

Ød1 ød2 t b1 b2 h1 (hex) h2 (hex) l weight conf. 6 4 m17x1.5p 16.1 16.1 19 21 35.5 9.8 50 6 6 m17x1.5p 16.1 16.1 19 21 ...

HT FITTING FOR DOWNSHIPS 22

HT FITTING FOR DOWNSHIPS 22

Siphon for lower for pipe ø 22 x 18 in self-extinguishing pa12 or in dn22 aluminum bar it solve many condensation proble...

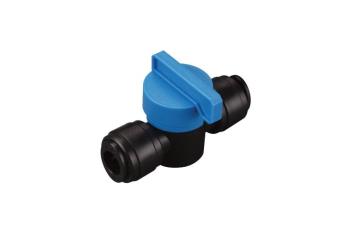

MANUAL VALVE IN ACETAL RESIN

MANUAL VALVE IN ACETAL RESIN

Shut-off valve in pom - polyoxymethylene - an acetal resin. economic, lightweight, durable ideal for connecting polyamid...
