LOK SLSW - Angled swivel hose socket with SAE standard thread
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › S-LOK STAINLESS STEEL FITTINGS › S-LOK FITTINGS
Download sheet in pdf format

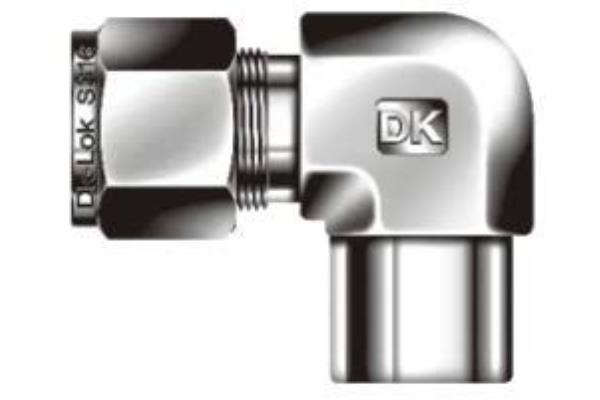

ANGLED HOSE CONNECTOR
| Code | external diameter tube | EXTERNAL DN | internal hole fitting | |
inches | mm | mm | mm | |
SCSW-4-4 | 1/4" | 6.35 | 12.70 | 4.82 |
| SCSW-6-6 | 3/8" | 9.52 | 15.74 | 7.11 |
| SCSW-8-8 | 1/2" | 12.70 | 8.57pm | 10.41 |
| SCSW-12-12 | 3/4" | 19.05 | 26.92 | 15.74 |
| SCSW-16-16 | 1" | 25.40 | 35.05 | 10.35pm |
