DIN 32676 STAINLESS STEEL CLAMP FITTINGS

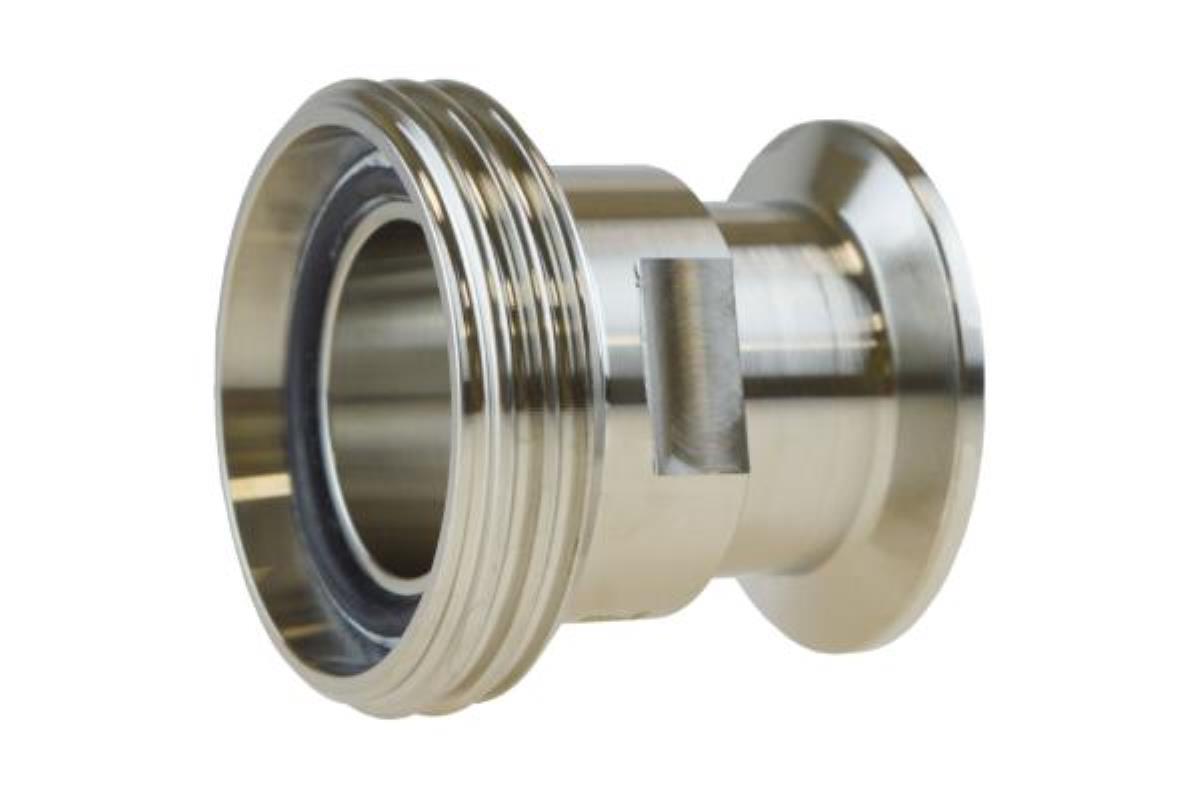

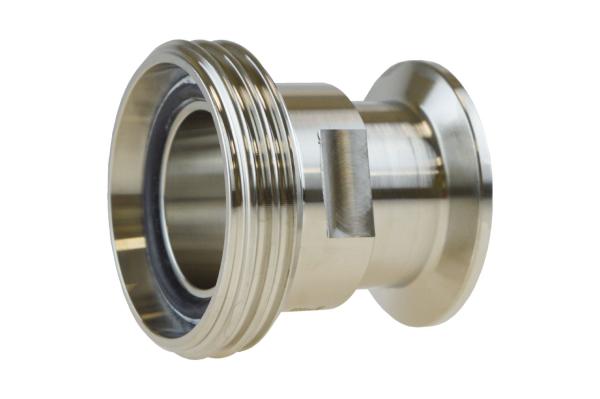

CLAMP ADAPTER DIN 32676 - MALE SMS 1145

CLAMP ADAPTER DIN 32676 - MALE SMS 1145
Download sheet in pdf format

Description and technical data

CLAMP ADAPTER DIN 32676 - MALE SMS 1145
MATERIAL IN STAINLESS STEEL AISI 316
MAXIMUM OPERATING PRESSURE 25 BAR


CODE SMS
dn		 DISC
mm
3740SMS25CL0505 25 50.5
3740SMS32CL0505 32 50.5
3740SMS40CL0505 38 50.5
3740SMS50CL064 50 64
3740SMS63CL091 63 91
3740SMS76CL106 76 106
