DIN 32676 STAINLESS STEEL CLAMP FITTINGS

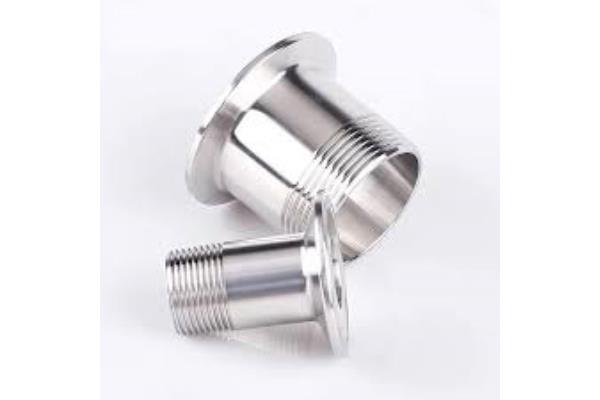

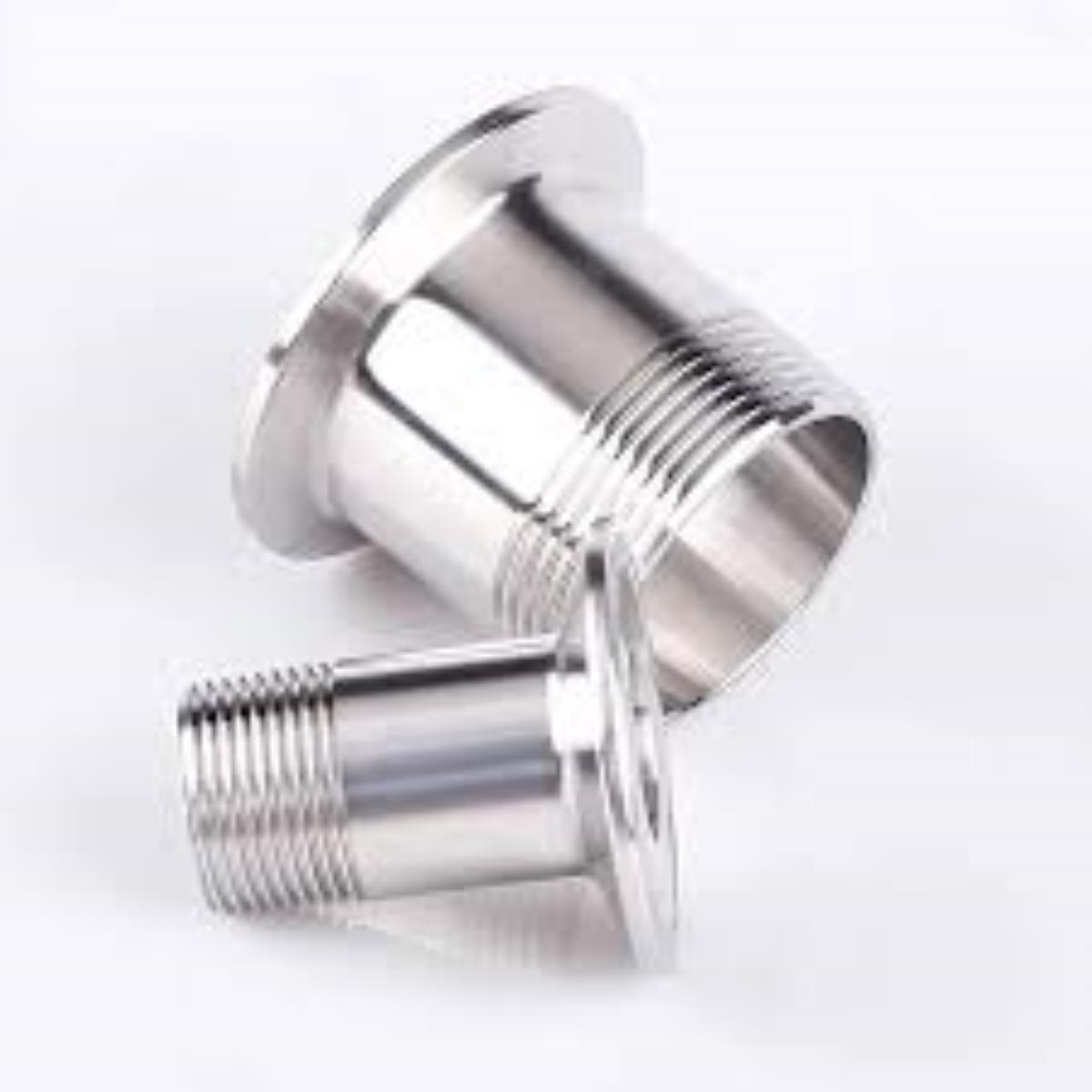

CLAMP FITTING INOX DIN 32676 male thread BSPP

CLAMP FITTING INOX DIN 32676 male thread BSPP
Download sheet in pdf format

Description and technical data

AISI 316 STAINLESS STEEL CLAMP FITTING DIN 32676 MALE THREADED BSPP CYLINDRICAL.

MAXIMUM OPERATING PRESSURE 16 bar


CODE DISC
mm		 Male
inch
3740BSPPM034_1/2 34 1/2"
3740BSPPM034_3/4 34 3/4"
3740BSPPM050,5_1 50.5 1"
3740BSPPM050,5_1_1/4 50.5 1"1/4
3740BSPPM050,5_1_1/2 50.5 1"1/2
3740BSPPM064_2 64 2"
3740BSPPM091_2_1/2 91 2"1/2
3740BSPPM106_3 106 3"
