CLAMP FITTINGS TORQUE CLAMP DIN 32676
MATERIAL IN AISI 304 STAINLESS STEEL
MAXIMUM OPERATING PRESSURE 16BAR

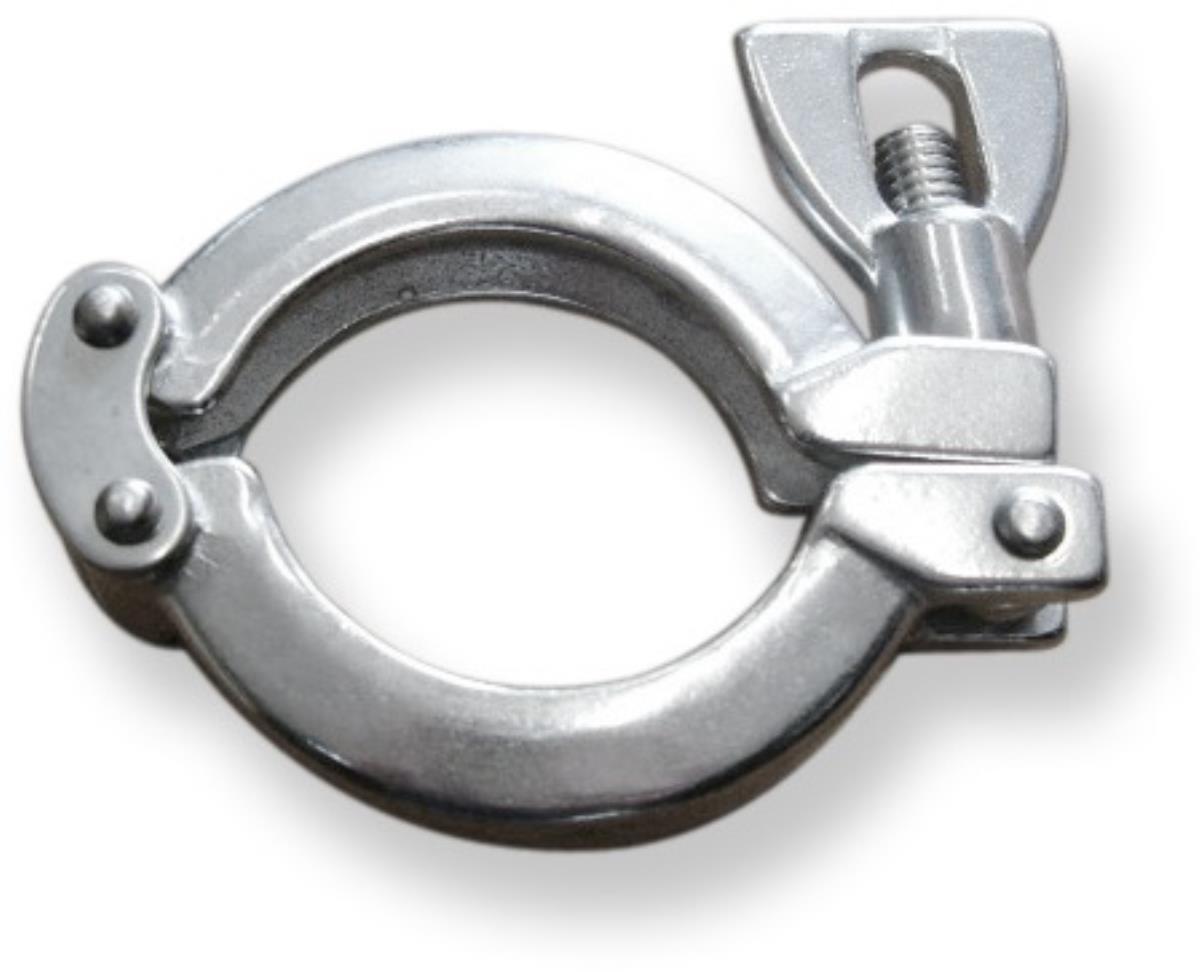

TWO VERSIONS: SINGLE JOINT OR DOUBLE JOINT (AS SHOWN IN THE FIGURE)
MATERIAL IN AISI 304 STAINLESS STEEL
MAXIMUM OPERATING PRESSURE 16BAR
TWO VERSIONS: SINGLE JOINT OR DOUBLE JOINT (AS SHOWN IN THE FIGURE)
| CODE SINGLE JOINT | DISC DIAMETER mm |
| 3740CLC025_1 | 25 |
| 3740CLC034_1 | 34 |
| 3740CLC050_1 | 50.5 |
| 3740CLC064_1 | 64 |
| 3740CLC077_1 | 77 |
| 3740CLC091_1 | 91 |
| 3740CLC106_1 | 106 |
| 3740CLC119_1 | 119 |
| CODE DOUBLE JOINT | DISC DIAMETER mm |
| 3740CLC025_2 | 25 |
| 3740CLC034_2 | 34 |
| 3740CLC050_2 | 50.5 |
| 3740CLC064_2 | 64 |
| 3740CLC077_2 | 77 |
| 3740CLC091_2 | 91 |
| 3740CLC106_2 | 106 |
| 3740CLC119_2 | 119 |
