DIN 32676 STAINLESS STEEL CLAMP FITTINGS

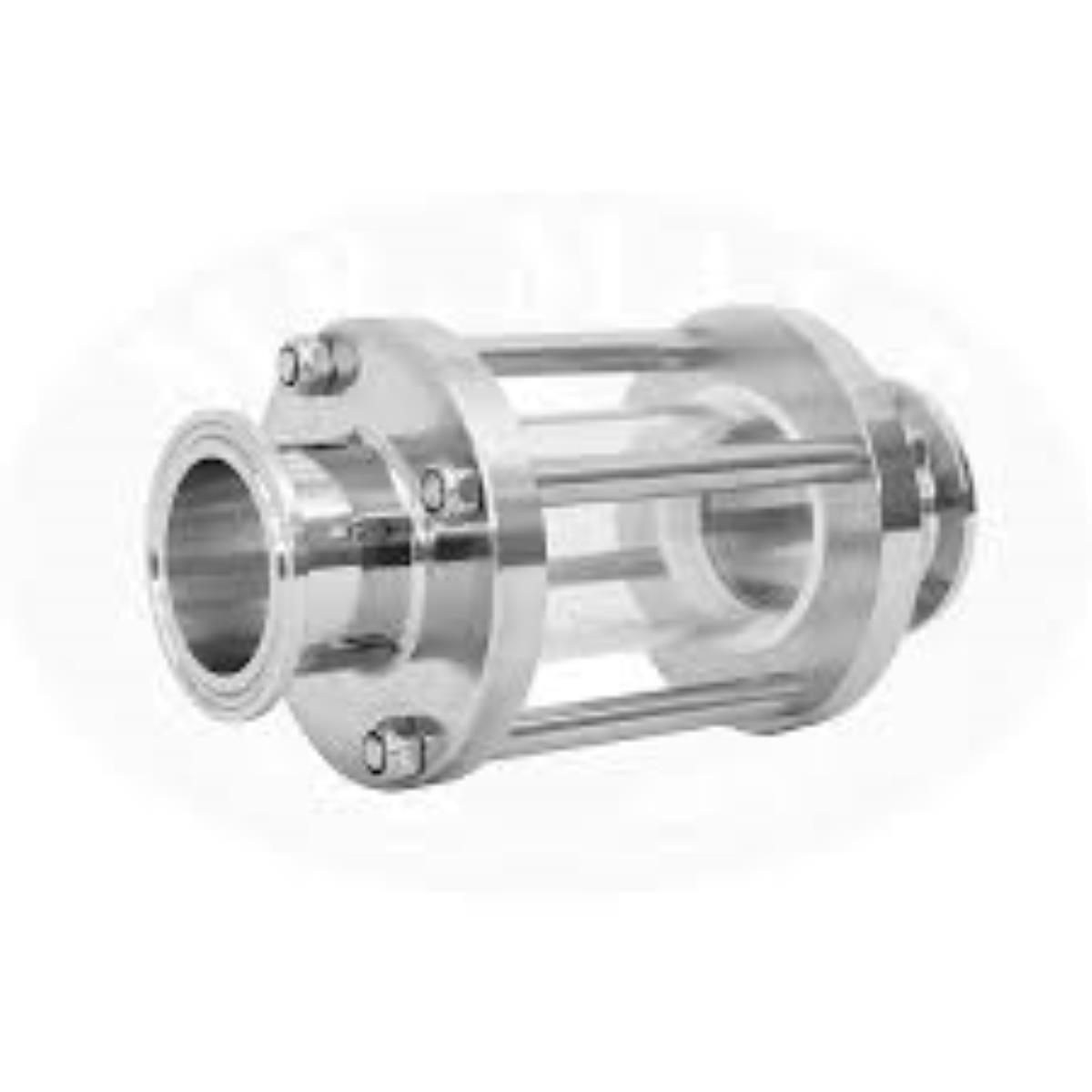

SIGHT WITH CLAMP ATTACHMENTS INOX DIN 32676

SIGHT WITH CLAMP ATTACHMENTS INOX DIN 32676
Download sheet in pdf format

Description and technical data

LINE SIGHT WITH CLAMP CONNECTORS INOX DIN 32676

BOROSILICATE GLASS

ASSEMBLED RODS IN AISI 304 STAINLESS STEEL

MAXIMUM OPERATING PRESSURE 16 BAR


CODE DN DISC
mm
3740SPECOLADIN025 25 50.5
3740SPECOLADIN032 32 50.5
3740SPECOLADIN040 40 50.5
3740SPECOLADIN050 50 64
3740SPECOLADIN065 65 91
3740SPECOLADIN080 80 106
3740SPECOLADIN100 100 119
