DIN 32676 STAINLESS STEEL CLAMP FITTINGS

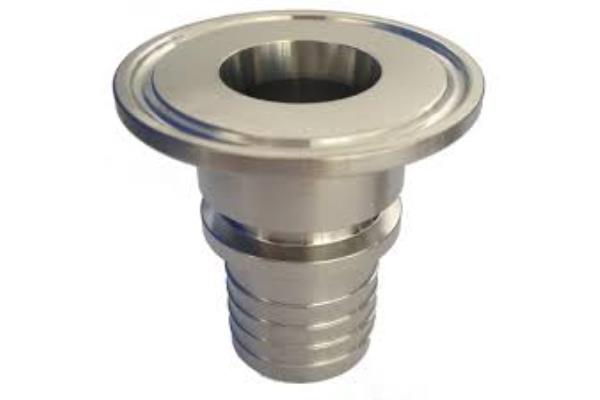

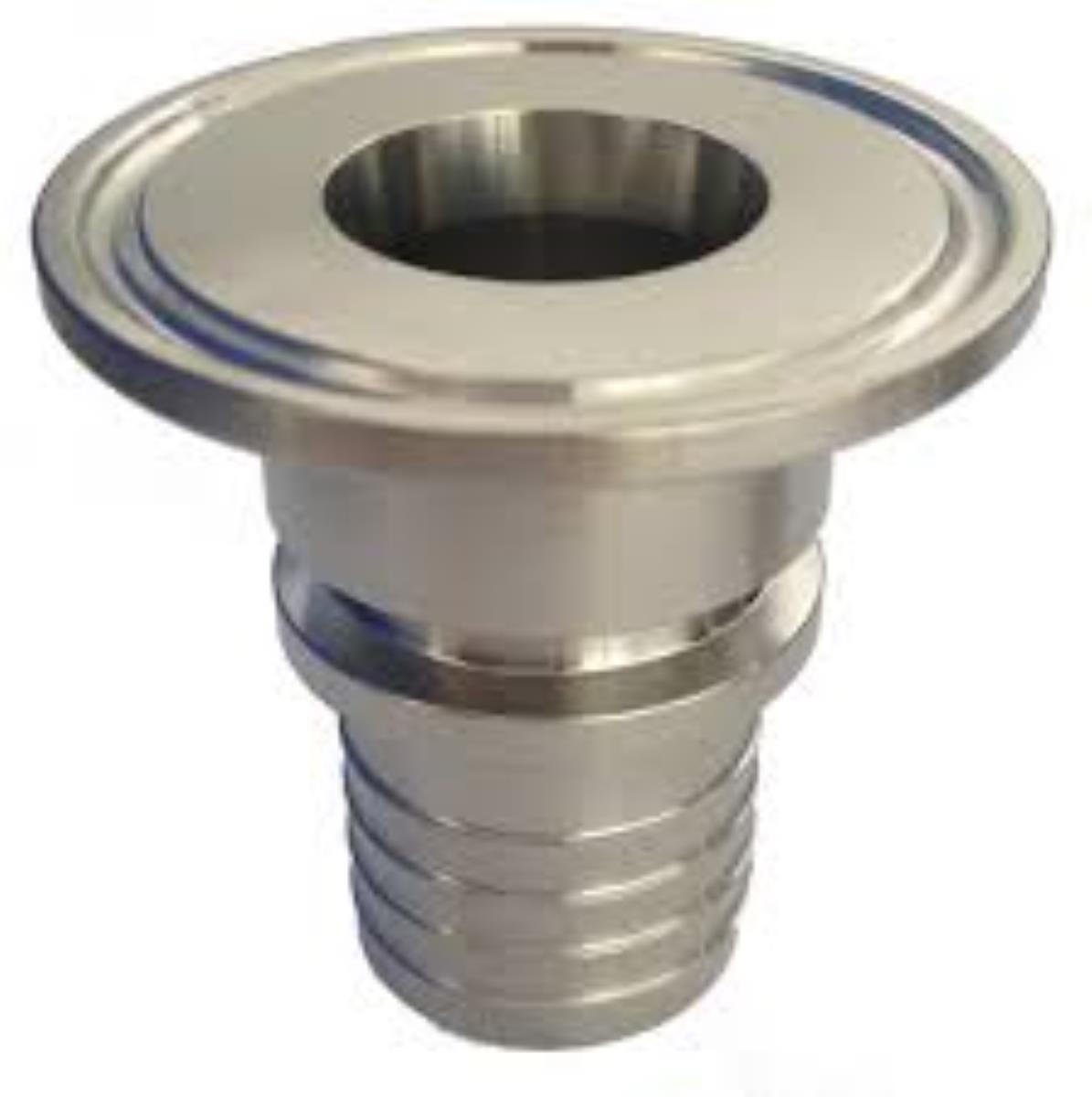

STAINLESS STEEL CLAMP CONNECTOR WITH HOSE HOLDER WITH UNDERHEAD RING DIN 32676

STAINLESS STEEL CLAMP CONNECTOR WITH HOSE HOLDER WITH UNDERHEAD RING DIN 32676
Download sheet in pdf format

Description and technical data

CLAMP DIN 32676 AISI316 stainless steel hose connector with safety ring under the head for pressed rings

Maximum operating pressure 16 bar




CODE DISC RUBBER HOLDER
3740CL21813-DIN 34 13
3740CL21820-DIN 34 19
3740CL21825-DIN 50.5 25
3740CL21832-DIN 50.5 32
3740CL21838-DIN 50.5 38
3740CL21851-DIN 64 51
3740CL21863-DIN 91 63
3740CL21876-DIN 106 76
3740CL218101-DIN 119 101.4
