STAINLESS STEEL CLAMP CONNECTOR WITH HOSE HOLDER WITH UNDERHEAD RING DIN 32676
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL CLAMP FITTINGS › DIN 32676 STAINLESS STEEL CLAMP FITTINGS
Download sheet in pdf format

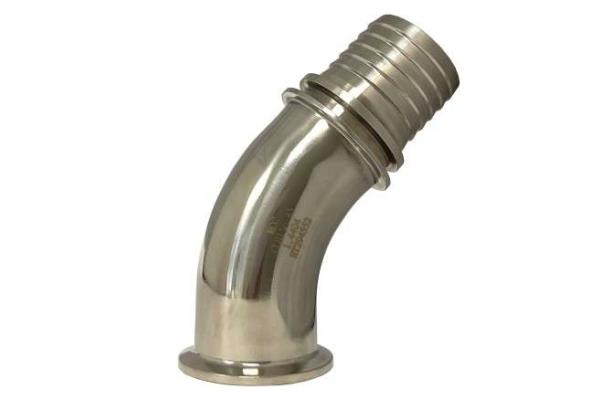

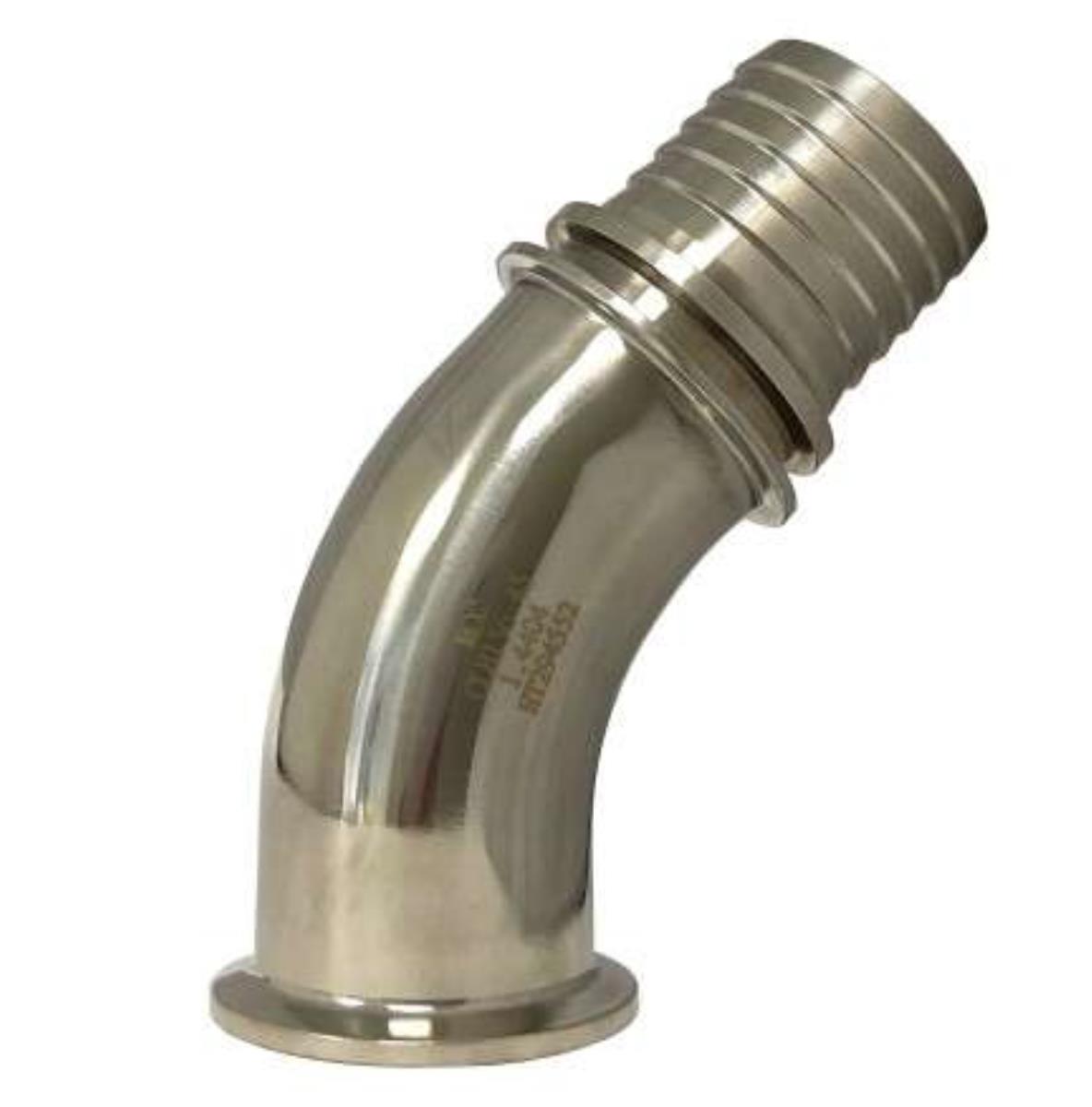

45° CURVED CLAMP FITTING IN AISI 316 STAINLESS STEEL HOSE CONNECTOR DIN 32676
WITH UNDERHEAD RING FOR PRESSED RINGS.
MAXIMUM OPERATING PRESSURE 16 bar
WITH UNDERHEAD RING FOR PRESSED RINGS.
MAXIMUM OPERATING PRESSURE 16 bar
| CODE | DISC | RUBBER HOLDER |
| 3740CLH45_13DIN | 34 | 13 |
| 3740CLH45_20DIN | 34 | 19 |
| 3740CLH45_25DIN | 50.5 | 25 |
| 3740CLH45_32DIN | 50.5 | 32 |
| 3740CLH45_38DIN | 50.5 | 38 |
| 3740CLH45_51DIN | 64 | 51 |
| 3740CLH45-63DIN | 91 | 63 |
| 3740CLH45_76DIN | 106 | 76 |
