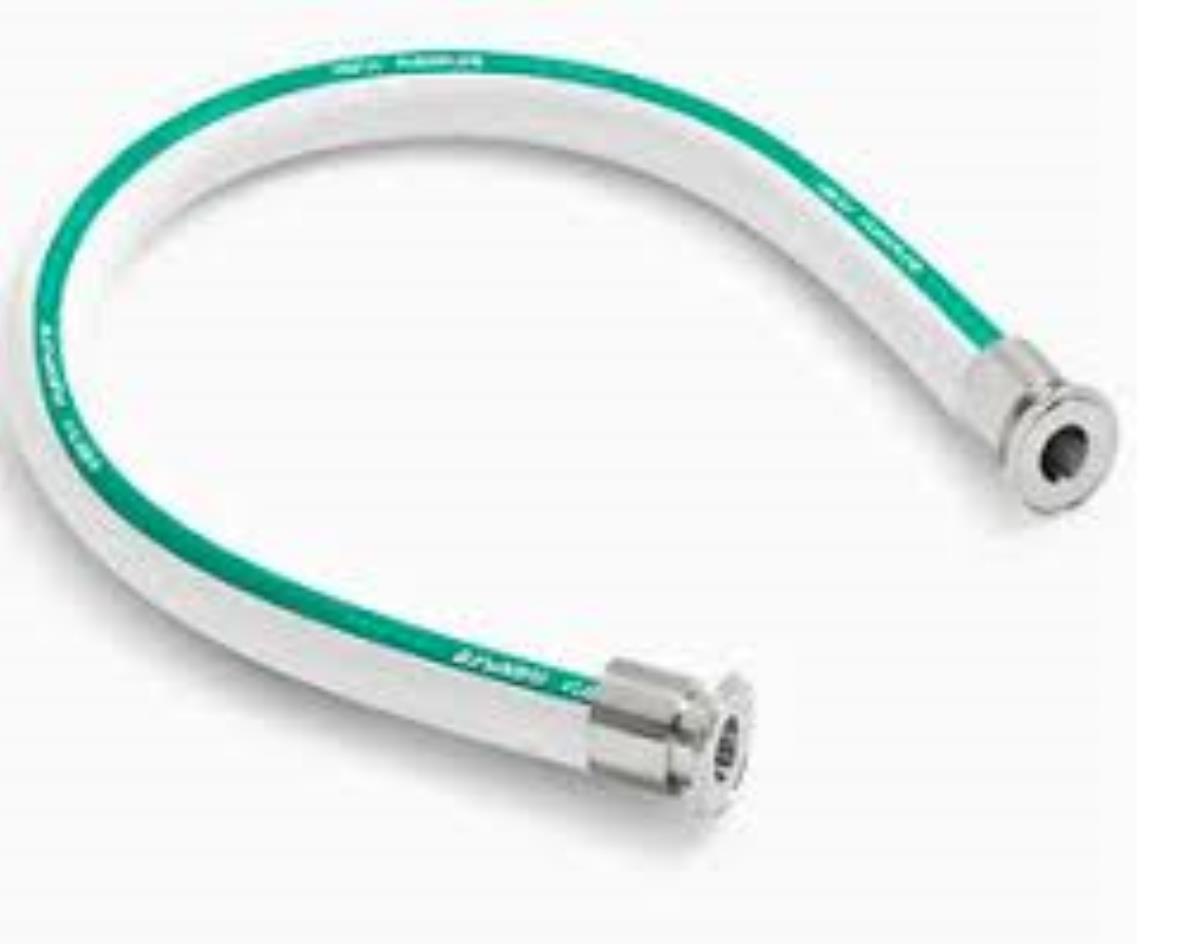

FLEXPURE VEIN TUBE

ONLINE CATALOGUE › HOSES › Chemical hoses

PTFE hose

Particularly suitable for conveying liquid or semi-liquid fluids in the food, cosmetics, chemical, and pharmaceutical industries. Thanks to its ultra-flexible, smooth-bore structure, it is ideal for handling powders, liquids, and semi-liquids in applications requiring highly hygienic design and good mechanical performance.

Property

- White and smooth outer layer

- White and smooth inner layer

- Operating temperature -50º to +200ºC (+58°-392ºF)
- Standard production length is 4 meters (13.12 feet),
but in specific diameters it is possible to produce up to a length of 6 meters (19.69 feet).

Regulations
The internal PTFE complies with FDA regulation 21 CFR 177.550.
Internal PTFE meets USP Class VI in vivo testing, 121ºC
The internal PTFE complies with European Regulation (EU) 10/2011.
The outer white silicone complies with: US FDA Standard 21 CFR 177.260
This tube complies with the RoHS Directive 2002/95/EC and its subsequent amendments, including RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.

Alternative: Vena® Flexpure-X.
With static dissipative PTFE lining Reference standards Hose grade classification Electrical characteristics information for assembly ISO 8031 and BS EN 16643
Electrically connected and static dissipative coating 10 ³ O=R=10 ⁸ O M/O-L
Electrical connection means the stainless steel wire braid to any metal terminal fitting used as part of the assembly.
