HEAT PIPE/10/SPL MULTIPURPOSE

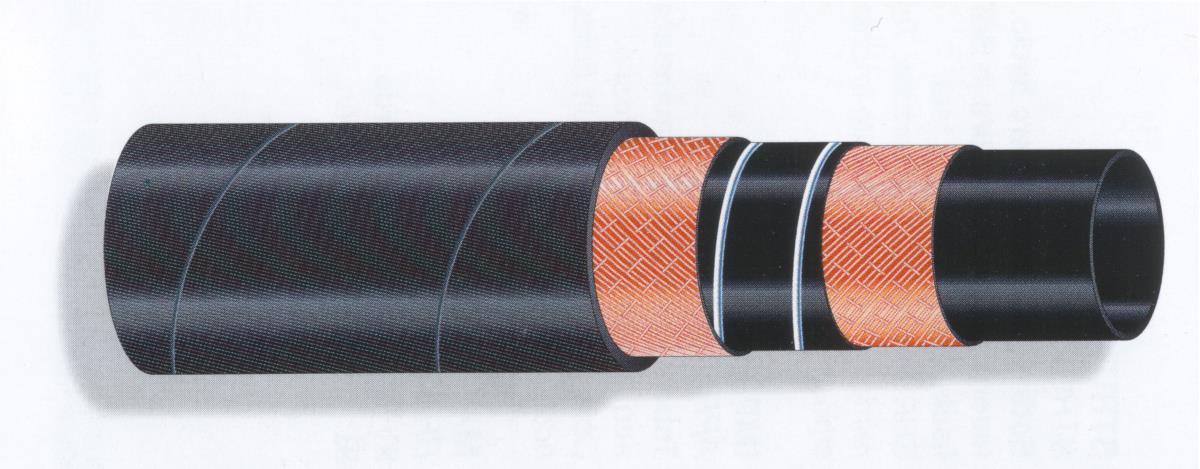

Construction: Heat-resistant EPDM synthetic rubber, synthetic textile reinforcements, aging- and weather-resistant EPDM synthetic cover. Embedded steel spiral.
Appearance: Smooth black canvas impression exterior, smooth black interior.
Use: Pipe suitable for the passage of hot water, even mixed with steam, and antifreeze liquids, in car radiators, engine cooling systems, heating circuits of vehicle cabins, chemicals, and sea water.
Working temperature: -40°C +120°C.
Maximum continuous working pressure: 10 bar - safety factor 3
Packaging: Rolls of 20/40/61 meters
.
.
.
.
.
.
.
.
.
.
.
.
.
.
| item | OR | radius of curvature | depression bar |
|---|---|---|---|
| 09GCAL013/023SP | 13x23 | 80 | 0.9 |
| 09GCAL016/026SP | 16x26 | 90 | 0.9 |
| 09GCAL018/028SP | 18x28 | 110 | 0.9 |
| 09GCAL019/029SP | 19x29 | 115 | 0.9 |
| 09GCAL020/030SP | 20x30 | 120 | 0.9 |
| 09GCAL025/035SP | 25x35 | 150 | 0.9 |
| 09GCAL030/040SP | 30x40 | 180 | 0.9 |
| 09GCAL032/043SP | 32x43 | 190 | 0.9 |
| 09GCAL035/046SP | 35x46 | 210 | 0.9 |
| 09GCAL038/049SP | 38x49 | 230 | 0.9 |
| 09GCAL040/051SP | 40x51 | 240 | 0.9 |
| 09GCAL045/057SP | 45x57 | 270 | 0.9 |
| 09GCAL051/063SP | 51x63 | 310 | 0.9 |
| 09GCAL060/071SP | 60x71 | 360 | 0.9 |
| 09GCAL063/076SP | 63x76 | 380 | 0.9 |
| 09GCAL070/082SP | 70x82 | 420 | 0.9 |
| 09GCAL076/088SP | 76x88 | 460 | 0.9 |
| 09GCAL080/092SP | 80x92 | 480 | 0.9 |
| 09GCAL090/102SP | 90x102 | 540 | 0.9 |
| 09GCAL102/117SP | 102x117 | 610 | 0.9 |
| 09GCAL110/123SP | 110x123 | 660 | 0.9 |
| 09GCAL120/137SP | 120x137 | 720 | 0.9 |
| 09GCAL127/144SP | 127x144 | 760 | 0.9 |
| 09GCAL152/170SP | 152x170 | 920 | 0.8 |
| 09GCAL203/228SP | 203x228 | 1220 | 0.7 |
| 09GCAL254/280SP | 254x280 | 1524 | 0.7 |
| 09GCAL305/331SP | 305x331 | 2100 | 0.5 |
