SPECIAL COMPRESS HOSE 20 bar
ONLINE CATALOGUE › HOSES › Compressed air hoses
Download sheet in pdf format

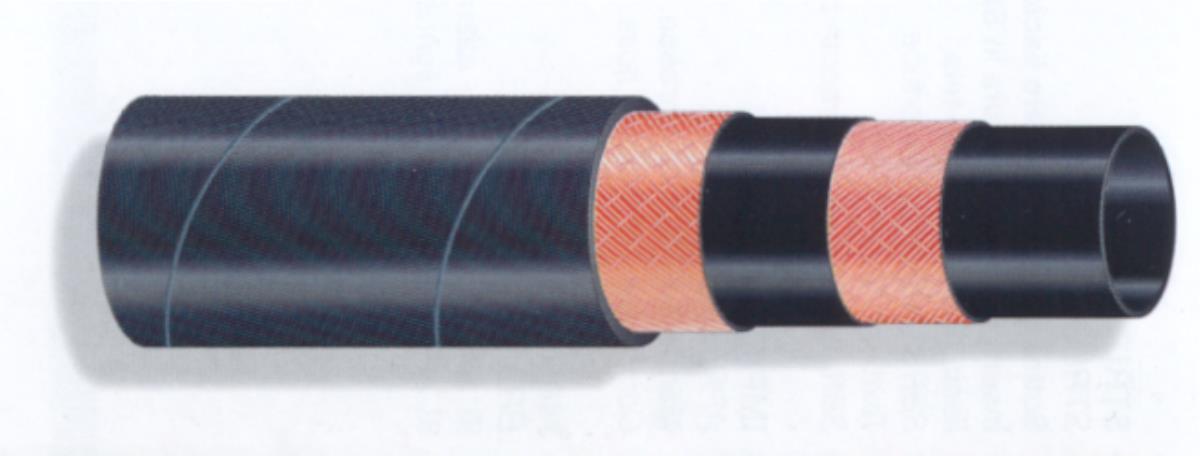

Rubber hose with high resistance textile braid inserted
Smooth black SBR tube, resistant to oil mist.
Anti-abrasive black cover with fine cloth finish.
Operating temperature: -30° +80° C.
Use: delivery of compressed air/water/inert fluids
for heavy duty, in construction and road construction, railway and mining industries.
Smooth black SBR tube, resistant to oil mist.
Anti-abrasive black cover with fine cloth finish.
Operating temperature: -30° +80° C.
Use: delivery of compressed air/water/inert fluids
for heavy duty, in construction and road construction, railway and mining industries.
| Code item | OR mm | Weight Kg/m |
|---|---|---|
| 01GS18019/030 T | 19 x 30 | 0.60 |
| 01GS18025/037 T | 25 x 37 | 0.80 |
| 01GS40032/044 T | 32 x 44 | 1.00 |
| 01GS18038/052 T | 38 x 52 | 1.45 |
| 01GS18050/069 T | 51 x 67 | 2.10 |
