Compressed air hoses

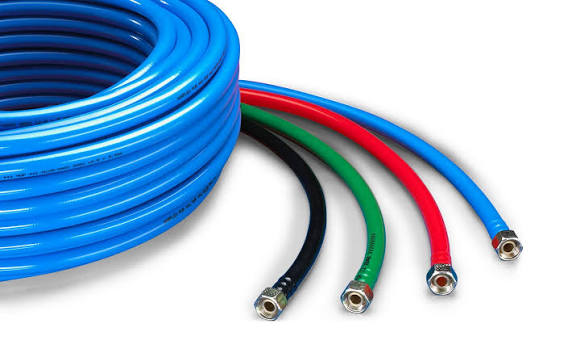

PUSH LOCK PU TUBE
Description and technical data
Abrasion-resistant polyurethane hose for industrial robots.
Applications
use for the passage of liquid, gaseous and abrasive solid fluids.
Ideal for cooling injection molds, cooling lines.
Agriculture: High Pressure Pesticide Spray Hose
Pipe suitable for compressed air, cooling water.
Pipe for industrial welding robots because it is resistant to welding spatter.
Inner tube for guide supports
Property
reinforced fabric, highly flexible, highly resistant to abrasion and crushing.
Good resistance to chemicals, industrial oils and hydrocarbons.
RoHS REACH compliant according to -> Technical information / technical / REACH
Temperature range: -35° to 80° C
Operating pressure: 20 bar
Burst pressure: 80 bar (50 bar for size 3/4"-19mm)
Construction
Reinforced wall in smooth fabric inside and special polyurethane outside.
Standard rolls 50 meters
Additional sizes and lengths available upon request
Colors:
transparent (standard)
gray (standard)
black (standard)
blue (standard)
red (standard)
yellow (standard)
green (standard)
Diameter
internal | Diameter
external | Pressure
of exercise | Pressure
of explosion | Radius of
curvature | Weight |
| Inches/mm | mm | bar | bar | mm | Kg/m |
| 3/8" - 9.20 | 16.5 | 20 | 80 | 55 | 0.15 |
| 1/2" - 12.50 | 19.5 | 20 | 80 | 69 | 0.23 |
| 3/4" - 19.50 | 28.5 | 20 | 80 | 140 | 0.41 |
