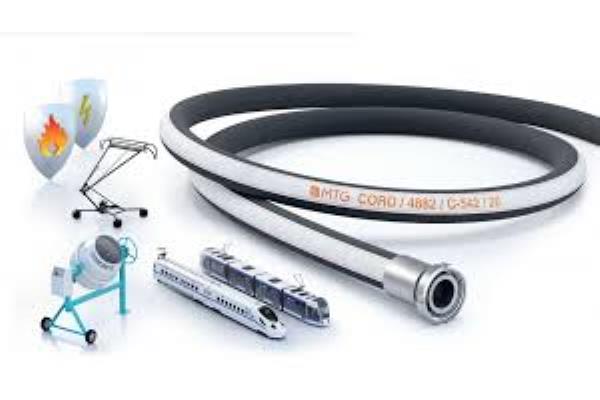

UNI 4882 PANTOGRAPH TUBE

Name: UNI 4882 PANTOGRAPH TUBE
Brand: Mastertubi

Download sheet in pdf format

Description and technical data

Rubber hose with high resistance to surface electrical tension, for fixed pneumatic pipes on railway and tram vehicles.

CORD/4882/C-542/20 is used for the air flow in the pantograph power supply system, in compliance with the UNI 4882 standard.

TUBE STRUCTURE: Synthetic rubber, self-extinguishing, black, smooth, resistant to grease and mineral oils.

REINFORCEMENT: Synthetic textile fabrics.

COVER: Synthetic rubber, self-extinguishing, black, smooth, canvas-like, resistant to ozone, atmospheric agents, greases and mineral oils

Operating temperatures: from -30°C up to +90°C

DIELECTRIC STRENGTH rubber = 5000 Volt per mm of thickness

Regulatory Compliance and Certifications

UNI EN 45545-2:2015 (fire tests of materials and components for trains): HL2 for R22 and HL3 for R23.
UNI-4882.
UNI CEI 11170-3/05 (Reaction to fire): responds to all risk levels up to and including LR4.
ASTM C 542 and CEI 20-35 (Reaction to fire).
NF X 10-702 – 1 and 2 (Low smoke opacity).
NF X 70-100 – 1 and 2 (Low toxicity of gases).
EN 11925-2/2002 (reaction to fire with a single ignition source).
Certificate “LAPI n°: 317.1IS0040/15 of 20/03/2015”, test method: UNI EN 45545-2:2015.
