HEAVY POLYURETHANE HOSE (PUP-PAS) - 1.40 ESTER
ONLINE CATALOGUE › HOSES › Flexible polyurethane hoses for dust and shavings extraction
Download sheet in pdf format
Code: PUP-P 1,35

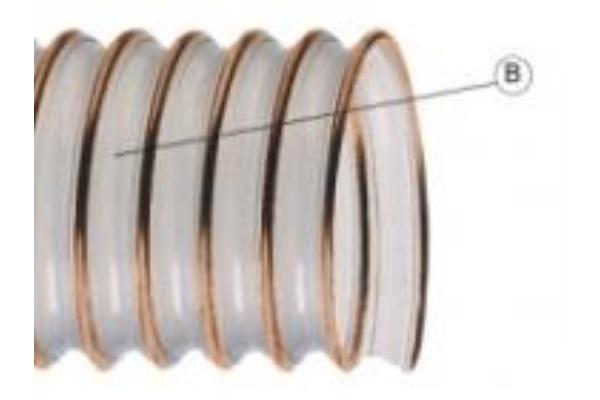

Heavy duty, microbe resistant, clear ester polyurethane tubing with copper coloured harmonic steel spiral reinforcement.
USES: transport of granules and powder by suction; in dosing, filling and emptying systems of big bags, shredders, mills, extruders, injection presses.
printing industry, industrial vacuum cleaner.
Agriculture: seed drills, pneumatic grain conveyor.
Construction industry: road milling machine, powder raw materials, granules, sand, quartz, gravel, chips and shavings, vacuum pump.
Paper industry, packaging, sandblasting recycling, shipyard, vacuum lifting device for feeding line handling of wood pellets, plastic granulate bags, cement powder bags.
Property
Heavy duty execution highly resistant to abrasion pressure increase and vacuum resistance resistant to microbes good resistance to chemicals, industrial oils and hydrocarbons excellent cold flexibility.
THE FOLLOWING OPTIONS ARE AVAILABLE ON REQUEST:
- non-magnetic stainless steel cable
- antibacterial polyurethane version
- food compatibility according to FDA
- antistatic R<10 8 oh
- covering color
- custom marking
Temperature range From -40°C to 90°C briefly up to 125°C
Wall thickness 1.35
Available lengths 10 meters - on request up to 15m
Heavy duty, microbe resistant, clear ester polyurethane tubing with copper coloured harmonic steel spiral reinforcement.
USES: transport of granules and powder by suction; in dosing, filling and emptying systems of big bags, shredders, mills, extruders, injection presses.
printing industry, industrial vacuum cleaner.
Agriculture: seed drills, pneumatic grain conveyor.
Construction industry: road milling machine, powder raw materials, granules, sand, quartz, gravel, chips and shavings, vacuum pump.
Paper industry, packaging, sandblasting recycling, shipyard, vacuum lifting device for feeding line handling of wood pellets, plastic granulate bags, cement powder bags.
Property
Heavy duty execution highly resistant to abrasion pressure increase and vacuum resistance resistant to microbes good resistance to chemicals, industrial oils and hydrocarbons excellent cold flexibility.
THE FOLLOWING OPTIONS ARE AVAILABLE ON REQUEST:
- non-magnetic stainless steel cable
- antibacterial polyurethane version
- food compatibility according to FDA
- antistatic R<10 8 oh
- covering color
- custom marking
Temperature range From -40°C to 90°C briefly up to 125°C
Wall thickness 1.35
Available lengths 10 meters - on request up to 15m
| DIAMETER mm | pressure Of exercise bar | depression Of exercise bar | Radius of curvature mm | WEIGHT g/m |
| 40 | 2.30 | 0.70 | 57 | 545 |
| 50 | 1.90 | 0.60 | 71 | 650 |
| 60 | 1.80 | 0.55 | 85 | 770 |
| 80 | 1.20 | 0.45 | 114 | 1060 |
| 100 | 1.10 | 0.40 | 142 | 1325 |
| 120 | 0.90 | 0.30 | 171 | 1380 |
| 140 | 0.70 | 0.20 | 199 | 1705 |
| 150 | 0.70 | 0.20 | 214 | 1770 |
| 160 | 0.60 | 0.20 | 228 | 2090 |
| 180 | 0.50 | 0.15 | 256 | 2580 |
| 200 | 0.50 | 0.10 | 285 | 2845 |
| 250 | 0.30 | 0.10 | 356 | 3477 |
| 300 | 0.30 | 0.10 | 427 | 4210 |
