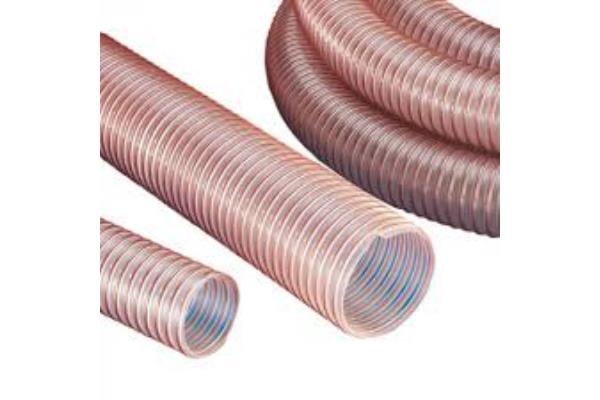

Super HEAVY POLYURETHANE HOSE (PUP-PHPS) - 2.50
ONLINE CATALOGUE › HOSES › Flexible polyurethane hoses for dust and shavings extraction
Download sheet in pdf format
Use
Flexible hose for high flow rates of extremely abrasive bulk material, granules, stone, plastics industry, transport of granules and powders, in suction, for dosing, filling and emptying systems, shredder, mill, extruder, injection molding machine, industrial cleaning, power plant cleaning, Suction dredger in potentially explosive areas.
Agriculture: for pneumatic conveying of grain, concrete pumps, industrial and construction unloading. Rock drills, hoses for conveying raw materials such as powders, granules, sand, quartz, gravel, chips, and shavings. Compressors/compressors, side-channel compressors, vacuum pumps, pressure pumps, and pumps for paper mills and the paper industry.
Packaging machines, edge extraction, surface treatment, sandblasting and metal shot recovery, for example in sandblasting booths, shipbuilding, paint stripping systems, industrial floor surface treatment systems, silos, silo vehicles, tankers, extraction of wood pellets, plastic granules, plastic dust.
Property
Super heavy-duty design, extremely abrasion-resistant thanks to the wall reinforcement under the steel wire and the reduced spiral pitch, resistant to microbes, good resistance to chemicals, industrial oils and hydrocarbons, excellent cold flexibility.
Permanently antistatic wall
Special colors: fully colored.
Flexible hose for high flow rates of extremely abrasive bulk material, granules, stone, plastics industry, transport of granules and powders, in suction, for dosing, filling and emptying systems, shredder, mill, extruder, injection molding machine, industrial cleaning, power plant cleaning, Suction dredger in potentially explosive areas.
Agriculture: for pneumatic conveying of grain, concrete pumps, industrial and construction unloading. Rock drills, hoses for conveying raw materials such as powders, granules, sand, quartz, gravel, chips, and shavings. Compressors/compressors, side-channel compressors, vacuum pumps, pressure pumps, and pumps for paper mills and the paper industry.
Packaging machines, edge extraction, surface treatment, sandblasting and metal shot recovery, for example in sandblasting booths, shipbuilding, paint stripping systems, industrial floor surface treatment systems, silos, silo vehicles, tankers, extraction of wood pellets, plastic granules, plastic dust.
Property
Super heavy-duty design, extremely abrasion-resistant thanks to the wall reinforcement under the steel wire and the reduced spiral pitch, resistant to microbes, good resistance to chemicals, industrial oils and hydrocarbons, excellent cold flexibility.
Permanently antistatic wall
- according to ISO 8031 volume resistance and surface resistance <10? O (according to TRGS 727 <2.5*108 O*m and NFPA 652 108-10? O)
- according to DIN 26057 type 4 according to ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: pneumatic conveying of flammable dusts and bulk materials (Zone 20, 21, 22 indoors), suction of combustible dusts (Zone 22 indoors)
- according to ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: for the transport of flammable liquids (within zone 0, 1, 2), for the transport of non-flammable liquids, for use in zone 1 and 2 (gases), for use in zone 0 (gases) REACH
- Technical information / Technical / REACH RoHS compliant
- Temperature range From -40°C to 90°C briefly up to 125°C
- Construction: Pipe reinforced with harmonic steel wire embedded in the wall
- Wall: premium permanent antistatic polyurethane
- Wall thickness approx. 2.0 - 2.5mm (depending on diameter)
- Reinforcement of primary wear zones
Special colors: fully colored.
CODE | Diameter internal mm | Diameter internal inch | Thickness wall mm | Weight g/m | Depression bar | Radius of curvature mm | Roll m |
11PVPUP_PHP032 | 32 | 1"1/4 | 2 | 680 | 1.00 | 90 | 10/15 |
11PVPUP_PHP038 | 38 | 1"1/2 | 2 | 790 | 1.00 | 104 | 10/15 |
11PVPUP_PHP040 | 40 | 2 | 820 | 1.00 | 109 | 10/15 | |
11PVPUP_PHP045 | 45 | 2 | 910 | 1.00 | 129 | 10/15 | |
11PVPUP_PHP050 | 50 | 2 | 1000 | 1.00 | 134 | 10/15 | |
11PVPUP_PHP051 | 51 | 2" | 2 | 1020 | 1.00 | 134 | 10/15 |
11PVPUP_PHP055 | 55 | 2 | 1090 | 1.00 | 151 | 10/15 | |
11PVPUP_PHP060 | 60 | 2"1/2 | 2 | 1180 | 1.00 | 156 | 10/15 |
11PVPUP_PHP063 | 63 | 2 | 1230 | 1.00 | 163 | 10/15 | |
11PVPUP_PHP065 | 65 | 2 | 1270 | 1.00 | 169 | 10/15 | |
11PVPUP_PHP070 | 70 | 2 | 1370 | 1.00 | 186 | 10/15 | |
11PVPUP_PHP075 | 75 | 2 | 1460 | 1.00 | 195 | 10/15 | |
11PVPUP_PHP076 | 76 | 3" | 2 | 1470 | 1.00 | 195 | 10/15 |
11PVPUP_PHP080 | 80 | 2 | 1555 | 1.00 | 205 | 10/15 | |
11PVPUP_PHP090 | 90 | 2 | 2060 | 1.00 | 250 | 10/15 | |
11PVPUP_PHP100 | 100 | 2 | 2270 | 1.00 | 272 | 10/15 | |
11PVPUP_PHP102 | 102 | 4" | 2 | 2310 | 1.00 | 272 | 10/15 |
| 11PVPUP_PHP110 | 110 | 2 | 2480 | 1.00 | 300 | 10/15 | |
11PVPUP_PHP115 | 115 | 2 | 2580 | 0.975 | 317 | 10/15 | |
11PVPUP_PHP120 | 120 | 2 | 2690 | 0.930 | 330 | 10/15 | |
11PVPUP_PHP125 | 125 | 2 | 2800 | 0.895 | 336 | 10/15 | |
11PVPUP_PHP127 | 127 | 5" | 2 | 2840 | 0.980 | 336 | 10/15 |
11PVPUP_PHP130 | 130 | 2 | 2900 | 0.860 | 355 | 10/15 | |
11PVPUP_PHP140 | 140 | 2 | 3110 | 0.800 | 400 | 10/15 | |
11PVPUP_PHP150 | 150 | 2 | 3680 | 0.745 | 435 | 10/15 | |
11PVPUP_PHP152 | 152 | 6" | 2.50 | 3720 | 0.735 | 435 | 10/15 |
| 11PVPUP_PHP160 | 160 | 2.50 | 3910 | 0.700 | 470 | 10 | |
11PVPUP_PHP170 | 170 | 2.50 | 4150 | 0.660 | 600 | 10 | |
| 11PVPUP_PHP175 | 175 | 2.50 | 4260 | 0.640 | 700 | 10 | |
| 11PVPUP_PHP180 | 180 | 2.50 | 4380 | 0.620 | 830 | 10 | |
11PVPUP_PHP200 | 200 | 2.50 | 5940 | 0.560 | 950 | 10 | |
11PVPUP_PHP203 | 203 | 8" | 2.50 | 6020 | 0.550 | 950 | 10 |
11PVPUP_PHP225 | 225 | 2.50 | 6650 | 0.495 | 1175 | 10 | |
11PVPUP_PHP250 | 250 | 10" | 2.50 | 7350 | 0.445 | 1300 | 2.5/10 |
11PVPUP_PHP275 | 275 | 11" | 2.50 | 8070 | 0.405 | 1453 | 10 |
| 11PVPUP_PHP300 | 300 | 12" | 2.50 | 8780 | 0.375 | 1575 | 2.5/10 |
