KYNAR FLEX HOSE - PVDF 2800
ONLINE CATALOGUE › HOSES › Flexible hoses in PTFE - FEP - PFA
Download sheet in pdf format

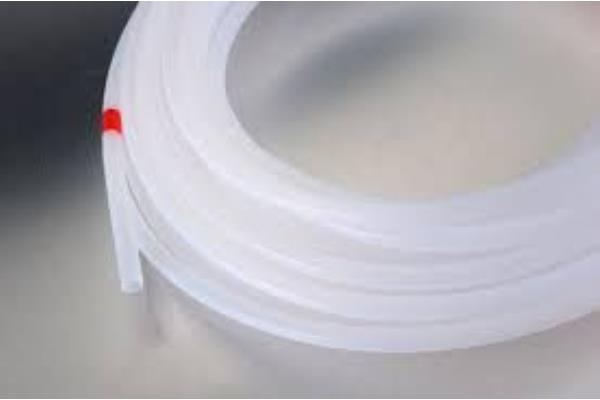

Hose made of KYNAR FLEX® 2800, polyvinylidene fluoride (PDVF), flexible copolymer intrinsically resistant to light, heat, aging and self-extinguishing UL94 V0. It is resistant to many commonly used industrial fluids and gases, including ozone, and does not encourage the growth of fungi. Its resistance to ozone makes it an ideal product for disinfection processes that use this gas. The tube has exceptional resistance to the most aggressive chemical products, resistant to aging because it is inert to ultraviolet rays, it does not darken under the action of heat, good resistance to abrasion when sliding.
On request, food version with attached certificate suitable for food sector regulations together with the supply: CE REG. 1935/2004 - CE REG. 10/2011 - Ministerial Decree 03/21/73
USE TEMPERATURE: from -40°C to 90°C
On request, food version with attached certificate suitable for food sector regulations together with the supply: CE REG. 1935/2004 - CE REG. 10/2011 - Ministerial Decree 03/21/73
USE TEMPERATURE: from -40°C to 90°C
| diameters mm | Radius of curvature mm | Pressure of exercise Cafe |
|---|---|---|
| 1x2 | 10 | 55 |
| 2x3 | 20 | 33 |
| 2x4 | 15 | 55 |
| 2.5x4 | 25 | 38 |
| 4x6 | 40 | 33 |
| 6x8 | 70 | 23 |
| 6.35x9.52 | 60 | 33 |
| 8x10 | 110 | 18 |
| 10x12 | 160 | 15 |
| 13x16 | 185 | 17 |
| 18x22 | 260 | 16 |
