KYNAR PIPE - PVDF HD 4000
ONLINE CATALOGUE HOSES Flexible hoses in PTFE - FEP - PFA
Download sheet in pdf format

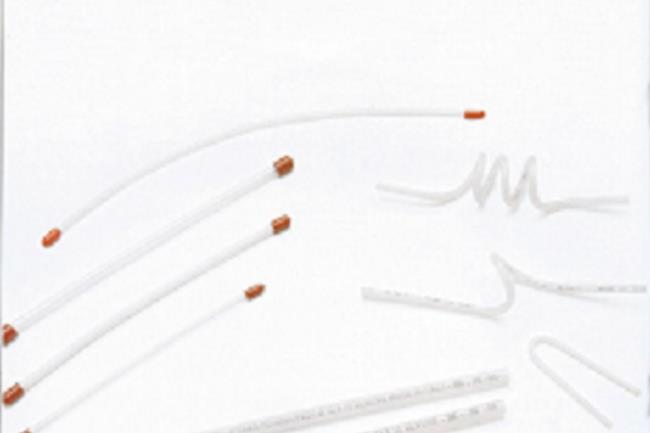

Tubing made of KYNARŪ HD 4000, rigid polyvinylidene fluoride (PDVF). Among PVDF products, it is the most resistant to abrasion and temperature and boasts excellent mechanical strength when used with many chemicals and solvents. It is inherently resistant to light, heat, and aging, and is inherently self-extinguishing (UL94 V0).
Abrasion resistant and suitable for use in applications requiring chemical resistance with low permeability.
NEUTRAL COLOR - standard packs of 100 meters
OPERATING TEMPERATURE : -40°C to 100°C
Abrasion resistant and suitable for use in applications requiring chemical resistance with low permeability.
NEUTRAL COLOR - standard packs of 100 meters
OPERATING TEMPERATURE : -40°C to 100°C
| diameters mm | Weight gr/m | Radius Of curvature mm | Pressure of explosion bar | Pressure of exercise bar | Packaging rolls m |
|---|---|---|---|---|---|
| 2 x 4 | 16.77 | 20 | 233 | 77 | 100 |
| 2.5x4 | 13.62 | 30 | 162 | 53 | 100 |
| 4x6 | 27.95 | 45 | 140 | 46 | 100 |
| 5x8 | 55.00 | 55 | 54 | 53 | 100 |
| 6x8 | 39.12 | 85 | 100 | 33 | 100 |
| 8x10 | 50.30 | 135 | 78 | 25 | 50 |
| 10x12 | 61.48 | 200 | 64 | 21 | 50 |
| 11x14 | 102.00 | 175 | 84 | 28 | 50 |
