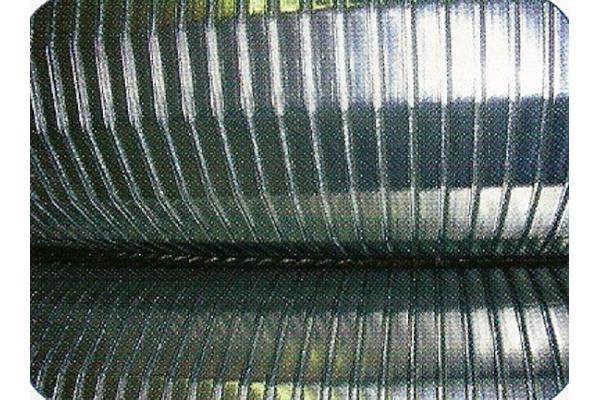

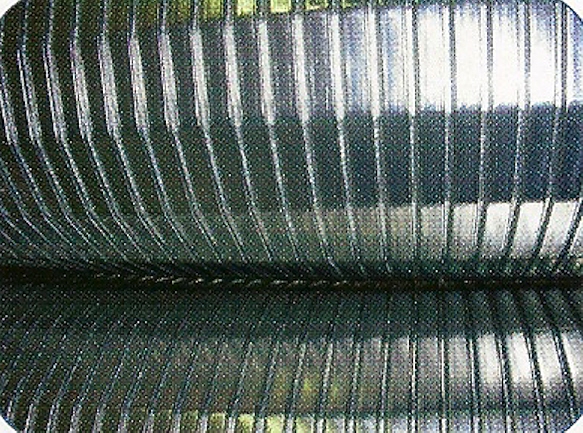

POLYGONAL STAINLESS STEEL METALFLEX PIPE with double interlocking
ONLINE CATALOGUE › HOSES › Flexible metal pipes
Download sheet in pdf format
Code: ACCIAIO INOX
Self-supporting (if constrained) flexible stainless steel pipe with double interlocking, polygonal section, without gasket.
Use: for mechanical protection of electrical cables, gas exhaust and conveyance.
BUILT ACCORDING TO UNI EN ISO 15465:2005 STANDARDS
Self-supporting (if constrained) flexible stainless steel pipe with double interlocking, polygonal section, without gasket.
Use: for mechanical protection of electrical cables, gas exhaust and conveyance.
BUILT ACCORDING TO UNI EN ISO 15465:2005 STANDARDS
| CLASSIFICATION | UNI CEI EN 61386 |
|---|---|
| Compressive strength | 5 |
| Impact resistance | 5 |
| Minimum temperature -40 °C | 5 |
| Maximum temperature +600 °C | 6 |
| Curvature | Flexible with position maintenance |
| Electrical characteristics | Electrical continuity |
| IP protection according to CEI EN 60529 | IP40 |
| Corrosion resistance | High |
| Tensile strength Ø 60 ÷ Ø 130 | 5 |
| Flame propagation | Non-propagating |
| Resistance to suspended load | Variable depending on the Ø (4 - 5) |
| RoHS - REACH | Yes |
| Material | Stainless steel AISI 304-316L-309 |
| Made in Italy | Yes |
| Internal diameter mm | External diameter mm | Encumbrance mm | Radius mm | Weight Kg/m |
|---|---|---|---|---|
| 60 | 65 | 66.16 | 240 | 1.22 |
| 70 | 75 | 76.16 | 297 | 1.41 |
| 80 | 85 | 85.91 | 316 | 1.60 |
| 90 | 95 | 95.91 | 355 | 1.80 |
| 100 | 105 | 105.91 | 393 | 1.99 |
| 110 | 115 | 115.91 | 431 | 2.19 |
| 120 | 125 | 125.91 | 470 | 2.38 |
| 130 | 135 | 135.91 | 508 | 2.58 |
