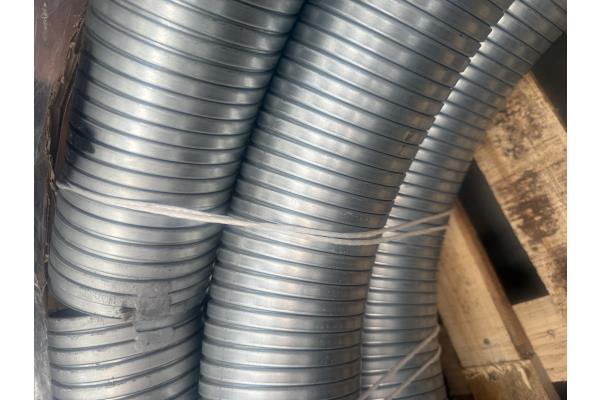

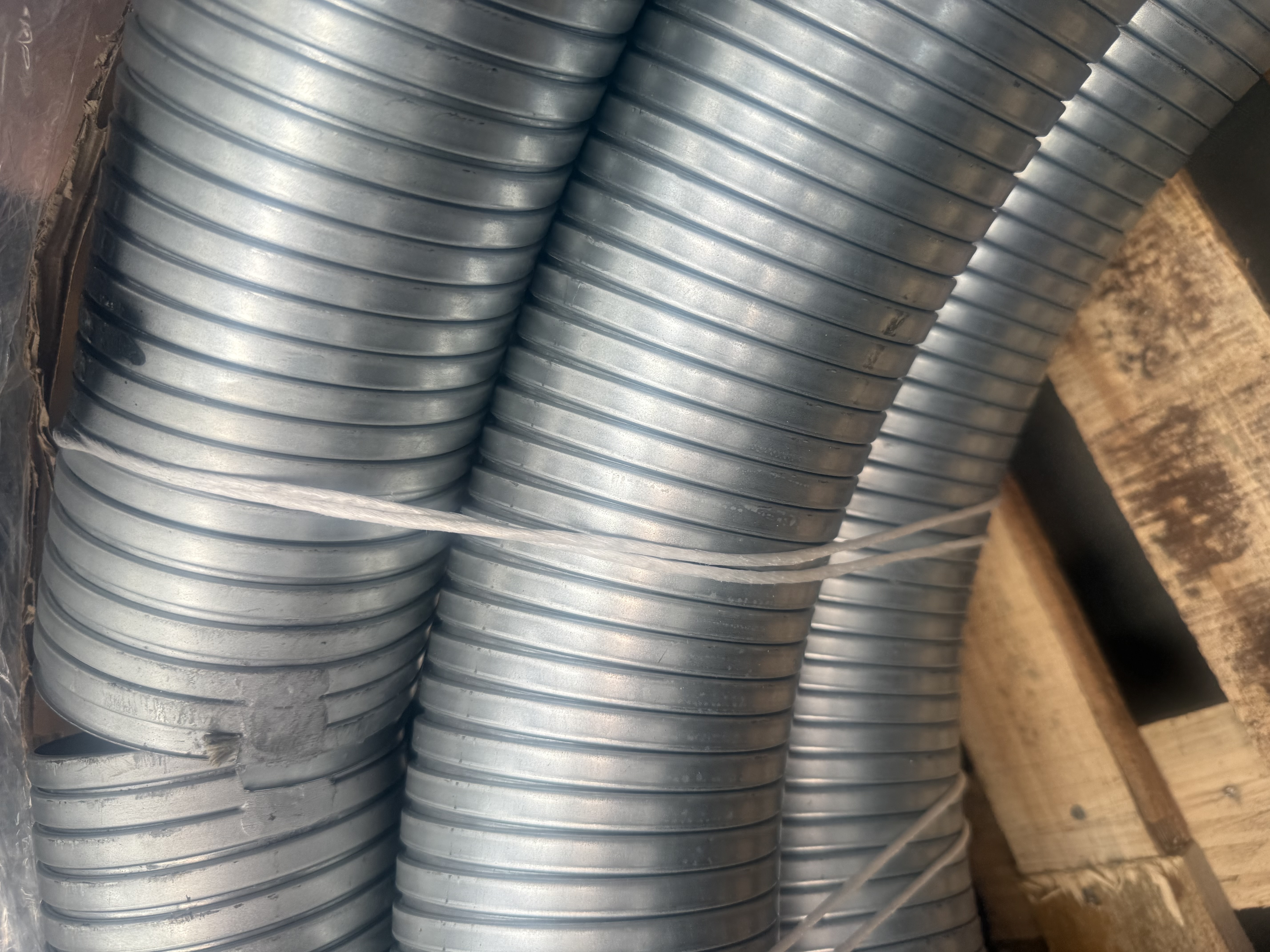

METALFLEX CIRCULAR GALVANIZED DOUBLE SEAM PIPE

ONLINE CATALOGUE › HOSES › Flexible metal pipes

Code: ACCIAIO ZINCATO
Flexible hose in hot-dip galvanized steel UNI 10346:2009 circular section WITH DOUBLE SEAM with aramid fibre gasket for medium, suction systems and conveying hot air max 300°, bitumen and liquids in general.

Compressive strength: 4
Impact resistance: 4
Minimum temperature -40° C: 5
Maximum temperature +300° C: 6
Flexible curvature without position maintenance, it is not self-supporting
Electrical characteristics: Electrical continuity and EMC shielding
IP67 protection
Medium corrosion resistance: medium
Tensile strength Ø 28 - 50: 4
Tensile strength Ø 55-250: 5
Flame spread: none
RoHS - REACH: yes
Material: Galvanized steel DX 51D/Z100

Diameter internal mm	Diameter external mm	Radius of curvature mm	Weight Kg/m	Pressure bar
15	20	55	0.40	30
20	25	70	0.52	30
25	30	86	0.63	30
30	35	129	0.86	25
32	37	137	0.91	25
35	40	149	0.99	25
40	45	169	1.13	20
45	50	189	1.27	20
50	55	209	1.40	18
55	60	229	1.53	18
60	65	307	2.12	14
65	70	332	2.29	14
70	75	356	2.46	14
75	80	381	2.63	12
80	85	405	2.79	12
85	90	430	2.96	10
90	95	454	3.13	10
95	100	479	3.30	8
100	105	503	3.47	8
110	115	553	3.81	7
115	120	577	3.98	7
120	125	602	4.15	7
125	130	626	4.32	6
130	135	651	4.49	6
140	145	691	4.97	5
150	155	740	5.31	5
160	165	788	5.66	3
180	185	885	6.36	3
200	205	982	7.06	3
250	255	1225	8.80	2
300	305	1467	10.60	1.5
