Flexible pipes for technical gases

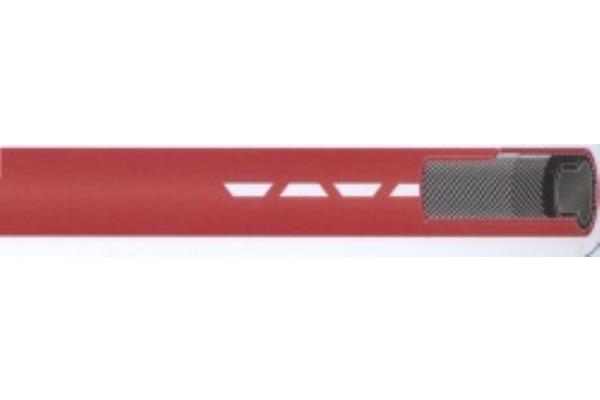

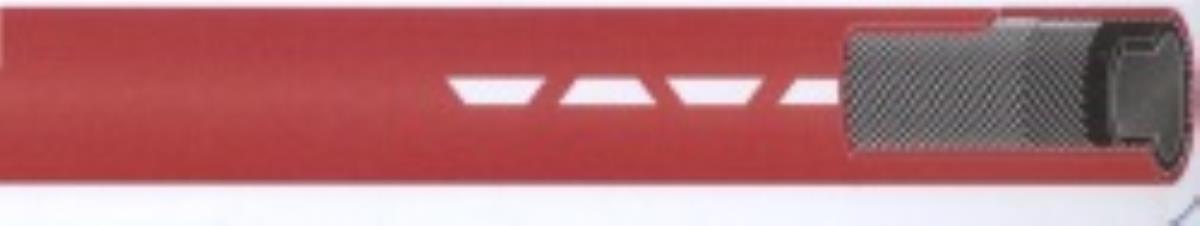

ACETYLENE HOSE/20 ISO 3821 RED

Description and technical data

Rubber hose for delivery of Acetylene at a maximum pressure of 20 bar for autogenous welding torches. Flexible and lightweight, resistant to backfires.

Smooth black SBR tube. Smooth red EPDM coating.
Internal reinforcement armor with synthetic thread.

Approvals: ISO 3821.
Operating pressure 20 bar – burst 60 bar.
Operating temperature: -25° +80°C
50-100 meter rolls
External marking with name, operating pressure and production date.

ITEM	Dimensions	Weight Kg/m	Rolls m
02GA1006/13	6x13	0.16	50/100
02GA1008/14	8x14	0.18	50/100
02GA1009/16	9x16	0.20	50/100
02GA10010/17	10x17	0.21	50/100
02GA10013/23	13x23	0.40	50/100
02GA10019/30	19x30	0.62	50/100
02GA10025/30	25x30	0.86	50/100

The tube does not expire!
