Flexible pipes for technical gases

BINAGOM HOSE EN559 for OXYGEN - ACETYLENE

Description and technical data

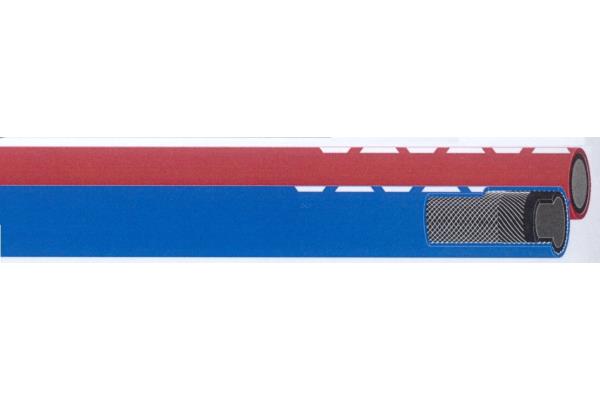

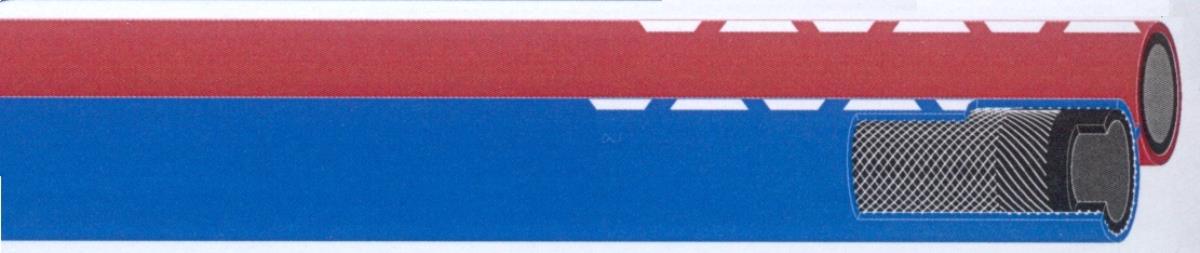

Twin rubber hose is suitable for the passage of gas for autogenous welding.
Flexible and lightweight, resistant to backfires.
Built for high performance. The SBR/NR rubber underlayer, black internally smooth, double layer of textile inserts. Blue EPDM liner for oxygen, red liner for acetylene. The tubes are joined by a layer of extruded rubber.
Very easy to handle, long life, maximum operational reliability, ozone resistant coating, marking bearing the production date and the name of the gas.

Approvals: EN 559 – ISO 3821.
Operating pressure 20 bar – burst 60 bar.
Operating temperature: -30° +80° C.
Rolls of 20-50–80 meters.
The tube has no expiry date.

Code	Dimensions PIPES	warp radius mm	Weight Kg/m	ROLLS
02GB00005/10.5	5x12	55	0.29	50
02GB20006/13	6.3x12	55	0.25	50
02GB10008/15	8x14	65	0.32	50-80
02GB10010/17	10x17	75	0.45	50
