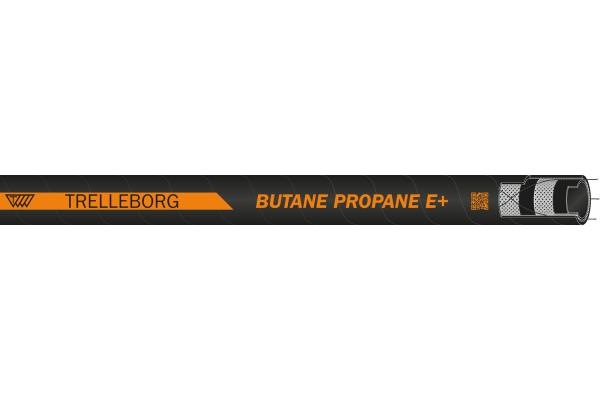

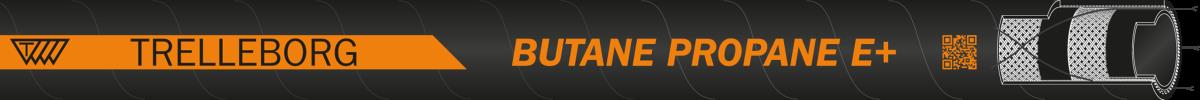

BUTANE - PROPANE E+ HOSE


Download sheet in pdf format
Pipe for the passage of Butane and Propane gas under pressure
For tankers for the distribution and unloading of LPG (in liquid or gaseous phase) or for natural GAS (Methane) under conditions of use defined by the EN 1762-2018 standard.
Flexible and lightweight, excellent bending radius.
Excellent abrasion resistance of the outer covering.
Static electricity dissipation ensured by the tube and welding braid.
Micro-perforated cover for the transport of combustible gases. Excellent resistance to oil.
UNDERLAYER - LPG resistant NBR, smooth, black,
REINFORCEMENT - two TEXTILE braids + 2 built-in electric cables for electrostatic discharge.
COVER - BLACK RUBBER CR resistant to oils and weathering

Working temperature range : -30° to +70°C
Electrical properties: conductive tube, R<10 6 O/lg.
E+ VERSION : with 4 built-in electrical cables (electrical continuity type M)
Diameter
internal		 Thickness
Wall		 Diameter
external		 Pressure
of exercise		 Pressure
of explosion		 Radius of
curvature		 Weight Rolls
mm mm mm bar bar mm Kg/m m
12.7 5 22.7 25 100 100 0.38 100
15.9 5 25.9 25 100 125 0.30 40
19.0 6 31 25 100 160 0.59 40
25.0 6.5 38 25 100 200 0.73 40
25.0 6.5 38 25 100 200 0.73 40
32.0 6.5 45 25 100 250 0.92 40
32.0 6.5 45 25 100 250 0.92 40
38.0 7 52 25 100 320 1.16 30
50.0 8 66 25 100 400 1.60 40
75.0 9 93 25 100 650 2.83 40
100 10 120 25 100 720 4.37 40
150 12 174 25 100 1000 7.94 20
