EVAFLEX HOSE
ONLINE CATALOGUE › HOSES › Flexible pipes for ventilation or cold air intakes
Download sheet in pdf format

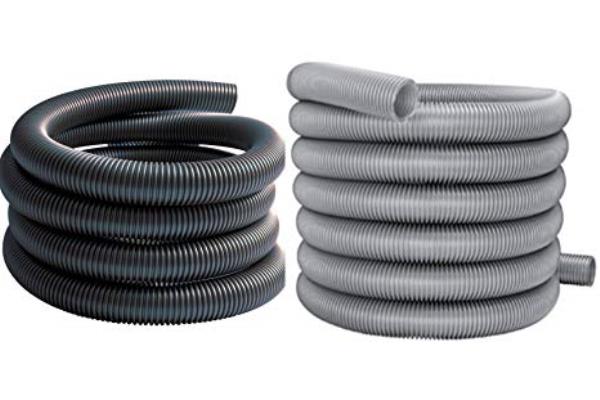

EVA (ethyl vinyl acetate) hose spiraled without reinforcement, very flexible, resistant to permanent deformations, maximum bending without kinking, bending radius double the internal diameter.
Operating temperature: -30° +60° C
Use: suction of air, dust, welding fumes, cold exhaust gases.
Operating temperature: -30° +60° C
Use: suction of air, dust, welding fumes, cold exhaust gases.
| item | Dimensions OR mm | Depression maximum at 23°C m col. H 2 O | Rolls m |
|---|---|---|---|
| 10PEVI025 | 25x33 | 5 | 30 |
| 10PEVI029 | 29x36 | 5 | 30 |
| 10PEVI032/041 | 32x41 | 5 | 30 |
| 10PEVI038/048 | 38x48 | 5 | 30 |
| 10PEVI045 | 45x55 | 5 | 30 |
| 10PEVI050/061 | 50x61 | 5 | 30 |
| 10PEVI060 | 60x72 | 4 | 30 |
| 10PEVI075 | 75x88 | 4 | 15 |
| 10PEVI080 | 80x94 | 4 | 15 |
